Shift Lock Control Switch (ATM): Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT SHIFT LOCK CONTROL SWITCH
1. Disconnect the connector of the shift lock control switch.
2. Measure the resistance according to the value(s) in the table below.

  Fig 1: Identifying Connector A And Connector B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Resistance Measuring Specified Value Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect terminal STP to the battery positive (+) terminal and terminal E to the battery negative (-) terminal, and apply about 12 V between terminals STP and E.
4. Measure the resistance according to the value(s) in the table below.

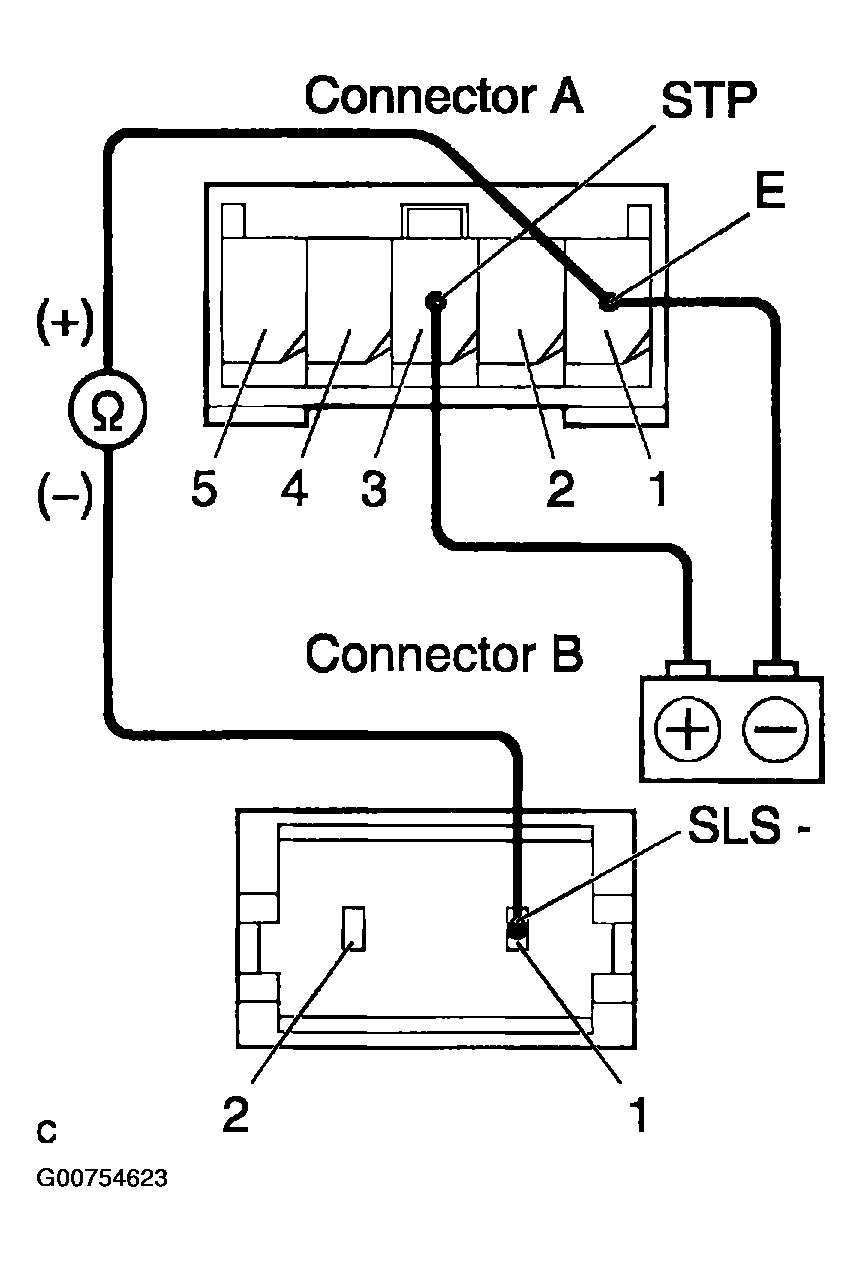

Fig 3: Connecting Terminal STP To Battery Positive (+) Terminal And Terminal E To Battery Negative (-) Terminal, And Apply About 12 V Between Terminals STP And E
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Measuring Resistance Specified Value Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
