Front Bumper: Components

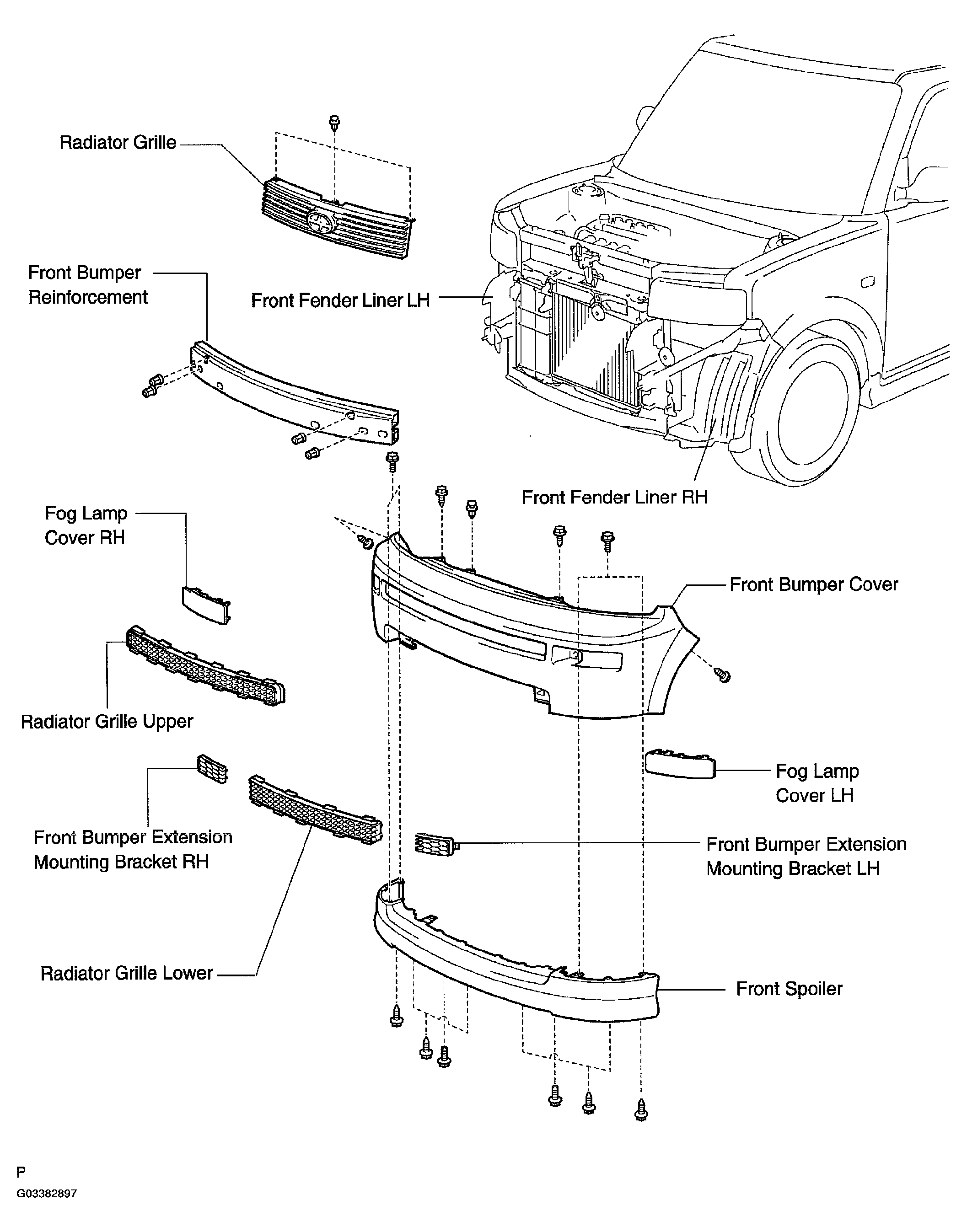

Fig 1: Identifying Front Bumper Components

G03382897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
