Outer Rear View Mirror: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.

1. REMOVE FRONT DOOR SERVICE HOLE COVER LH (See  OVERHAUL  )
   1. Remove the front door lower frame bracket garnish.
   2. Remove the door pull handle.
   3. Remove the power window regulator master switch.
   4. Remove the front door trim board.
   5. Remove the front door inside handle.
   6. Remove the front door trim bracket.
   7. Remove the front door service hole cover.
2. REMOVE OUTER REAR VIEW MIRROR ASSY LH
   1. Disconnect the connector.
   2. Remove the 3 bolts and mirror.

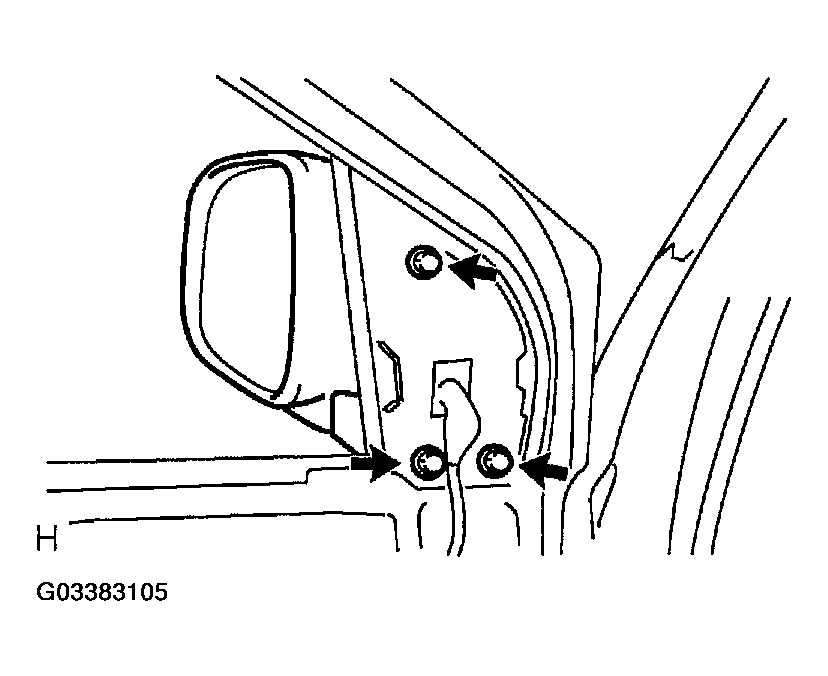

      Fig 1: Removing Outer Rear View Mirror Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR ASSY LH
   1. Install the mirror with the 3 bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      Fig 2: Installing Outer Rear View Mirror Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
