Chain Sub-ASSY: Components

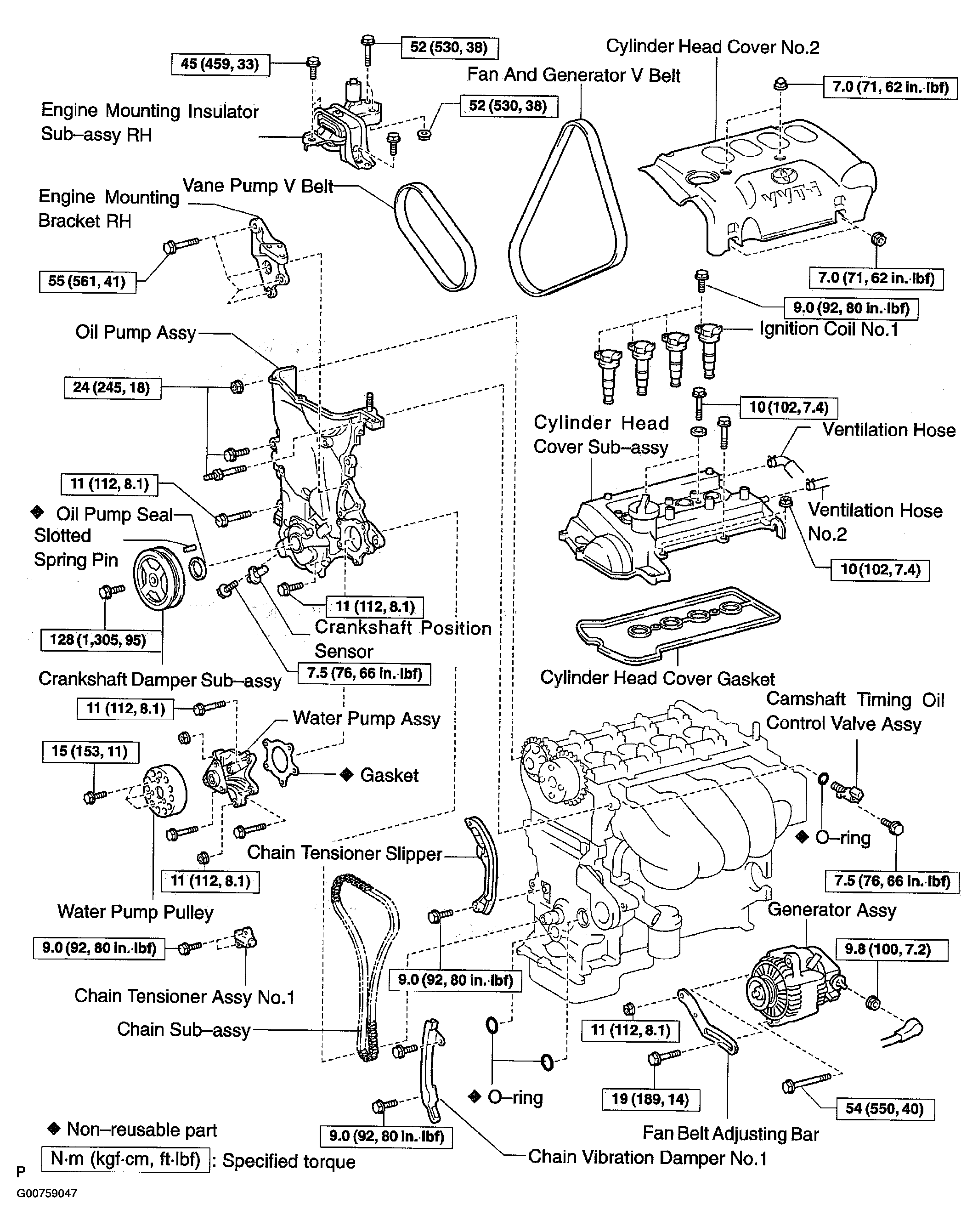

Fig 1: Exploded View Of Chain Sub-Assy Components
G00759047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
