Fuel Injector ASSY: Components

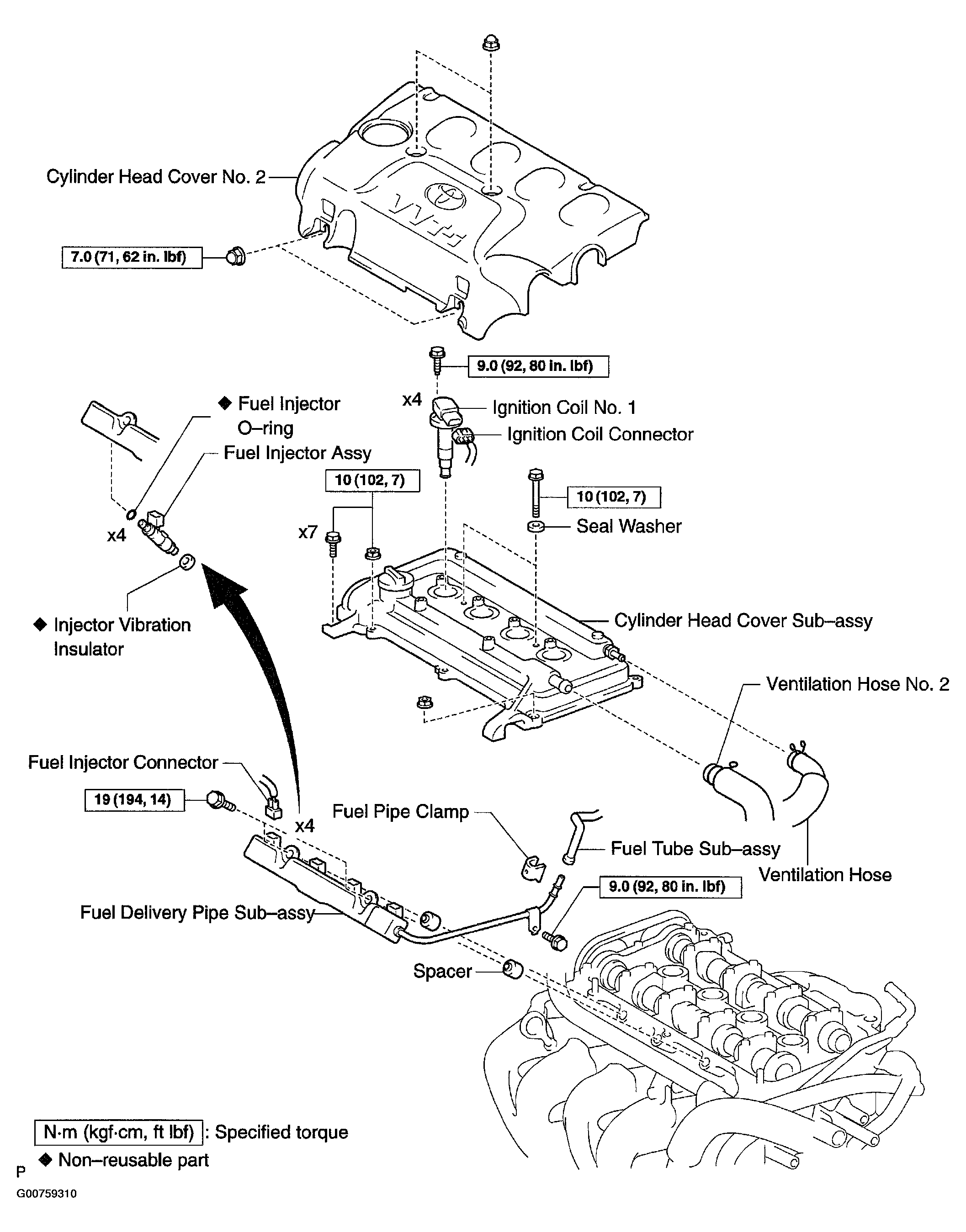

Fig 1: Fuel Injector Assy Replacement Components With Torque Specifications
G00759310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
