Fuel Pump ASSY: Components

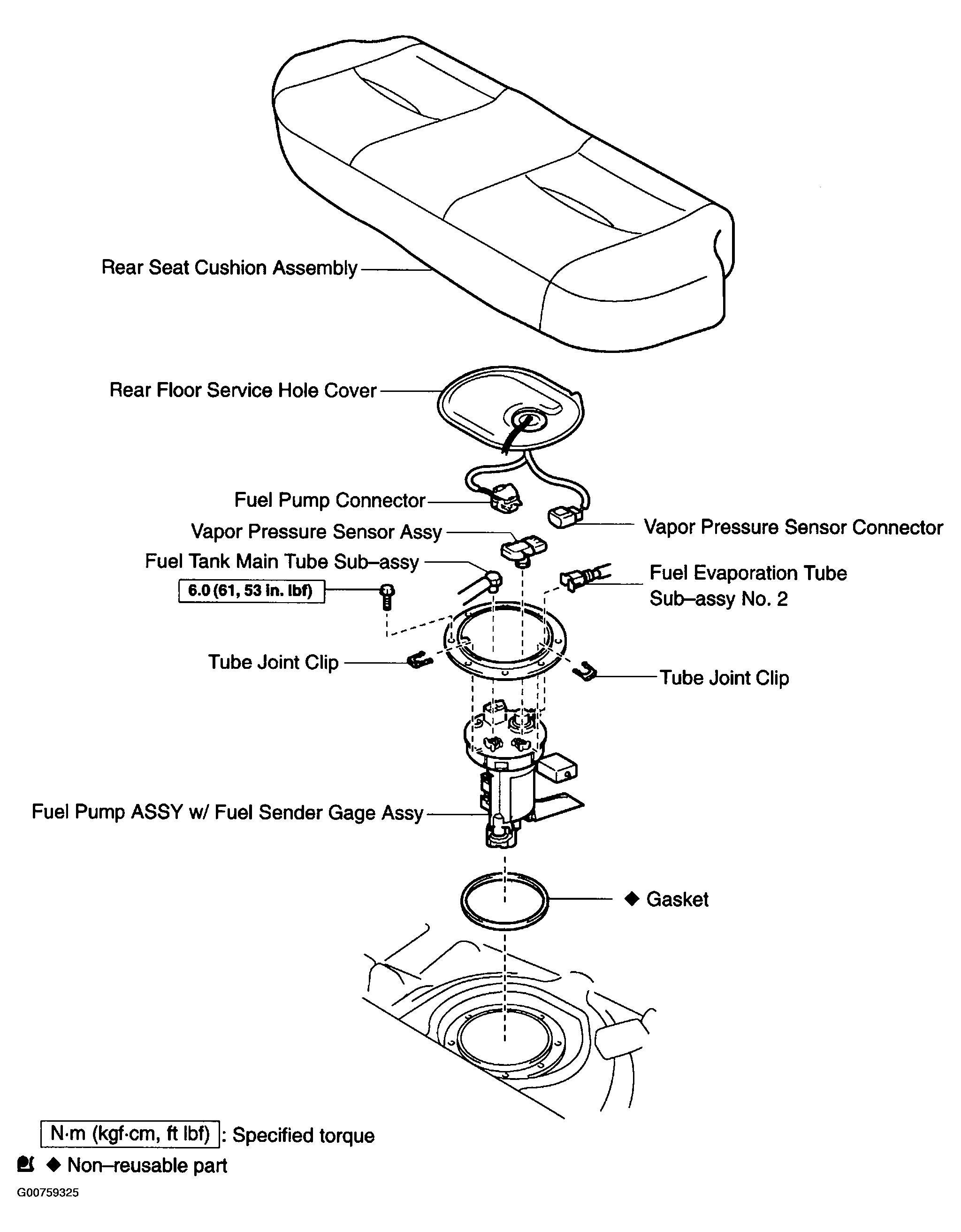

Fig 1: Identifying Fuel Pump Assy Components
G00759325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

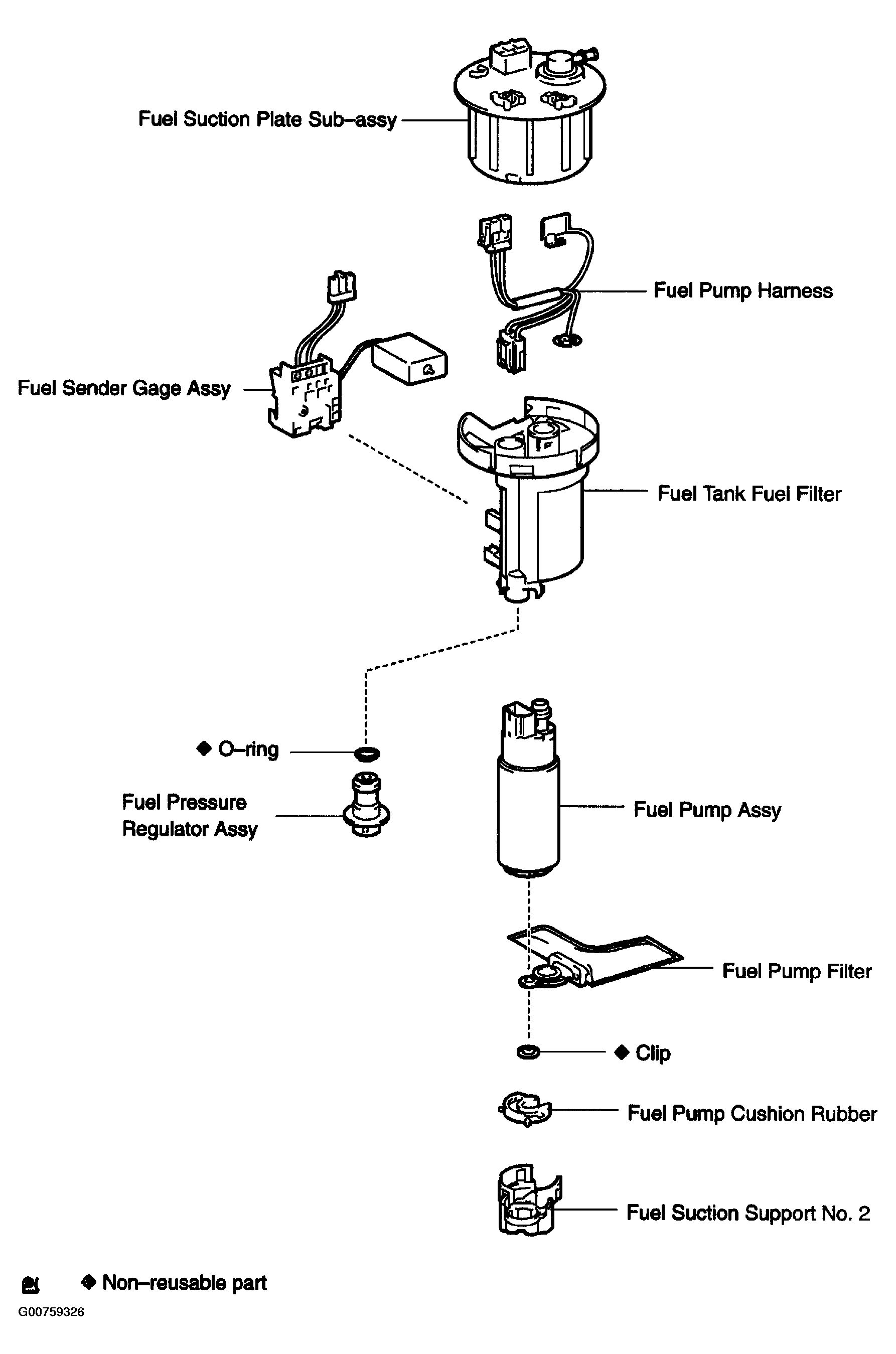

Fig 2: Exploded View Of Fuel Pump Assy Components
G00759326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
