7. Check Air Inlet Line

  1. Disconnect the air inlet line hose from the charcoal canister.
  2. Check that there is ventilation in the air inlet line.
  3. Reconnect the air inlet hose to the charcoal canister.

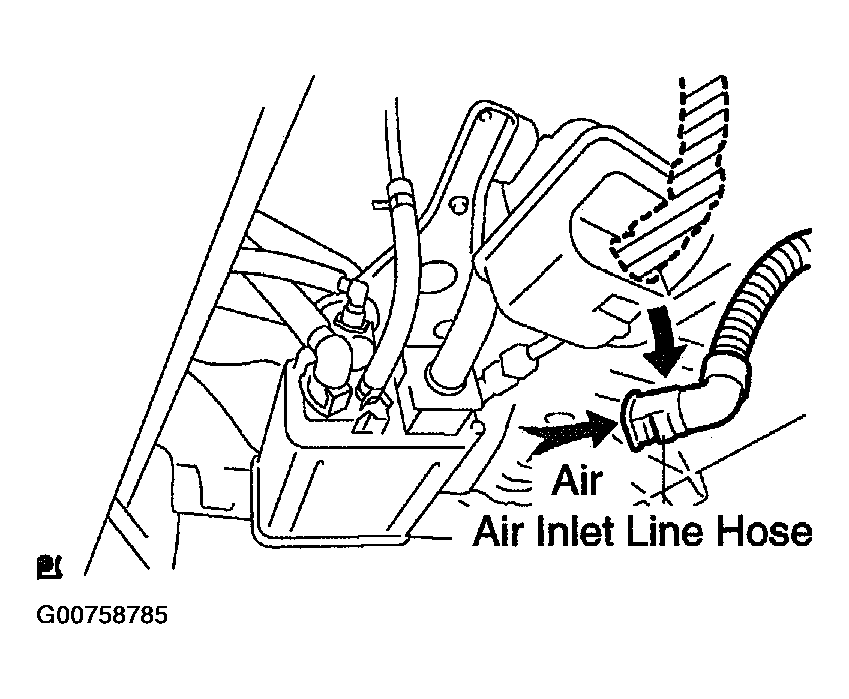

Fig 1: Disconnecting Air Inlet Line Hose
G00758785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
