Repair and Diagnosis
›
Engine Performance
›
System
›
SFI System - Diagnosis
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

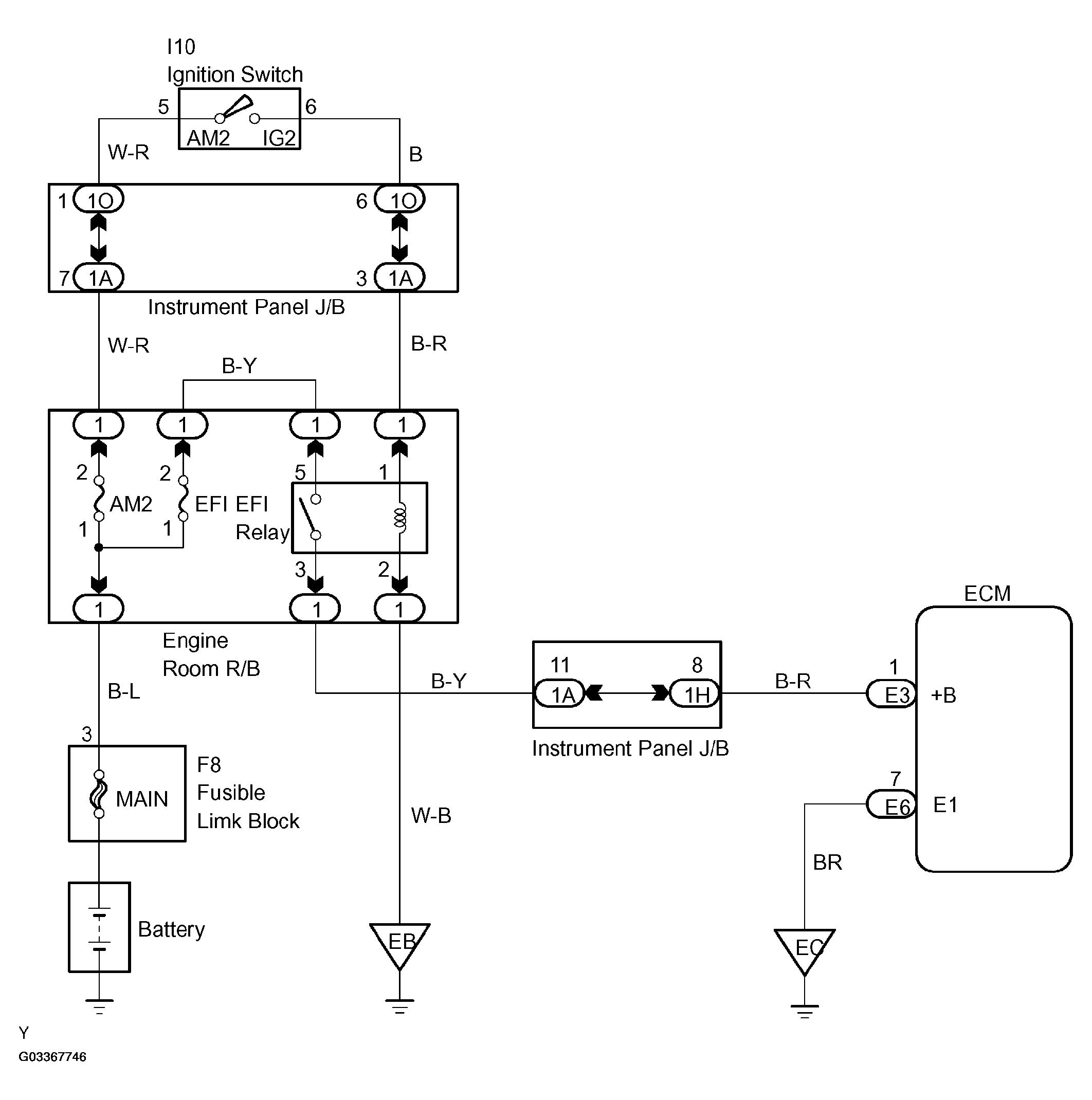

Fig 1: ECM Power Source Circuit Wiring Diagram
