SFI System - Diagnosis
›
Stop Light Switch Circuit
›
Wiring Diagram
Stop Light Switch Circuit: Wiring Diagram

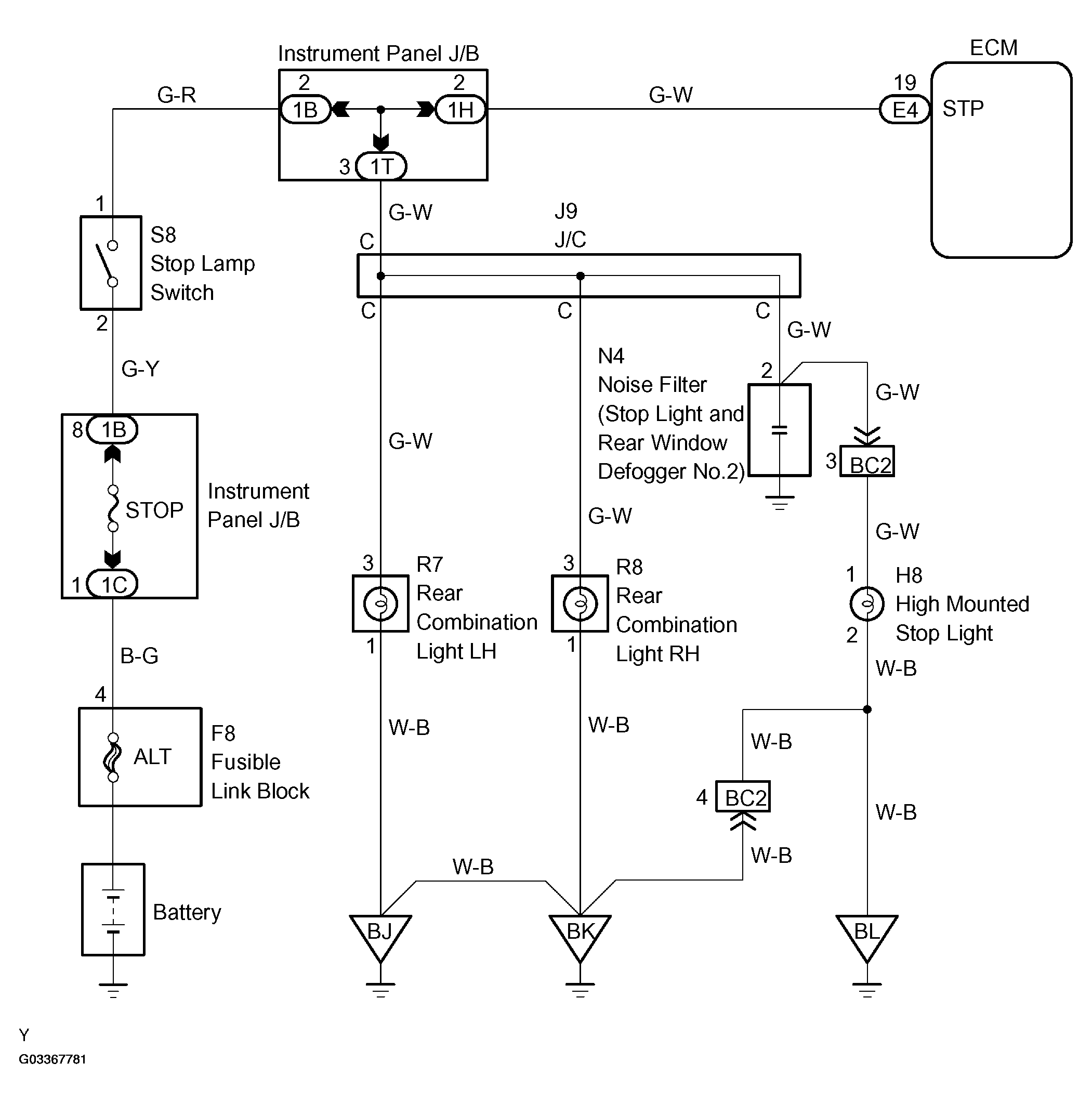

Fig 1: Stop Light Switch Circuit Wiring Diagram
