Engine Immobilizer System: Location

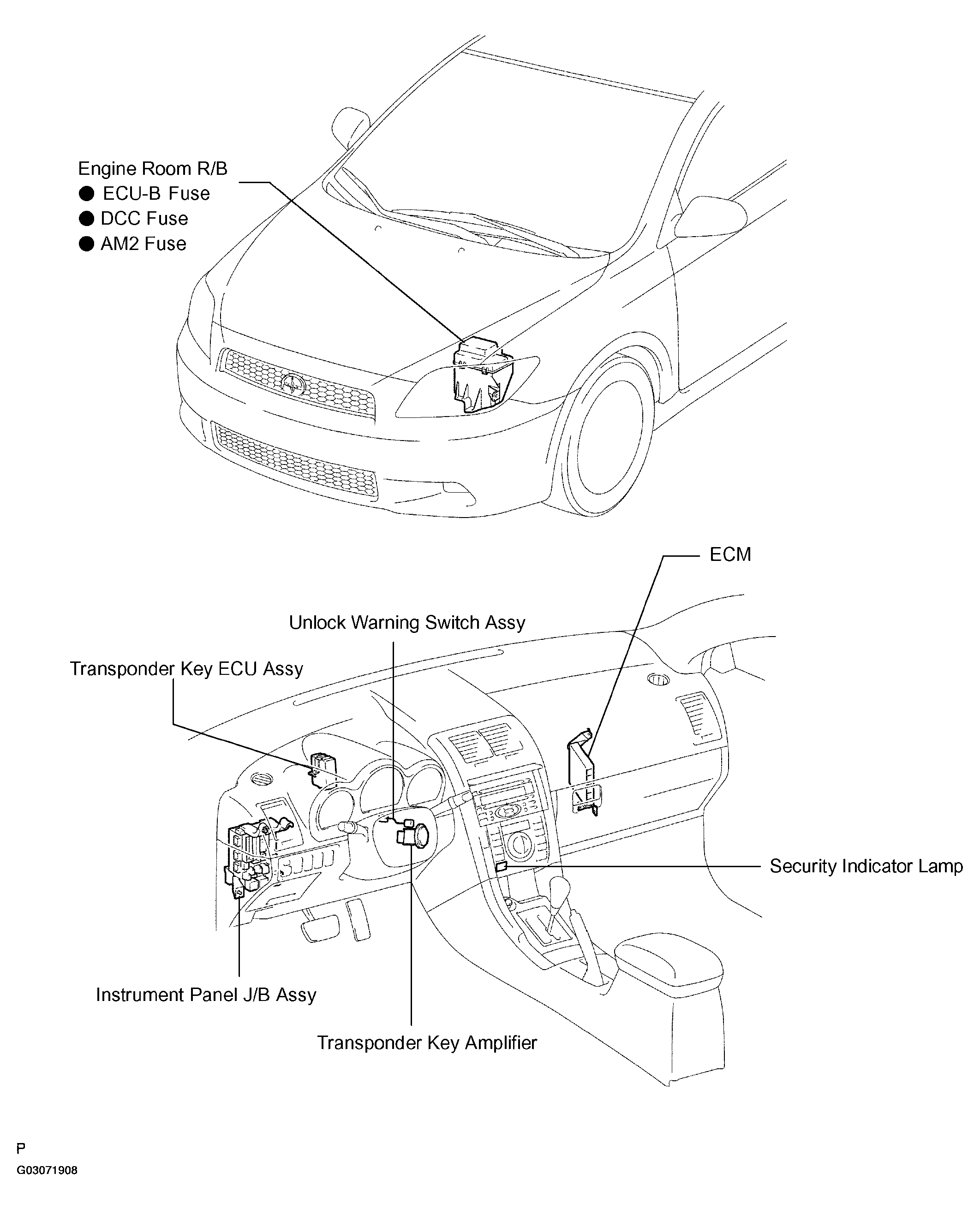

Fig 1: Identifying Engine Immobilizer System Components Location
G03071908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
