Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Key-Linked Lock Are Active): Wiring Diagram

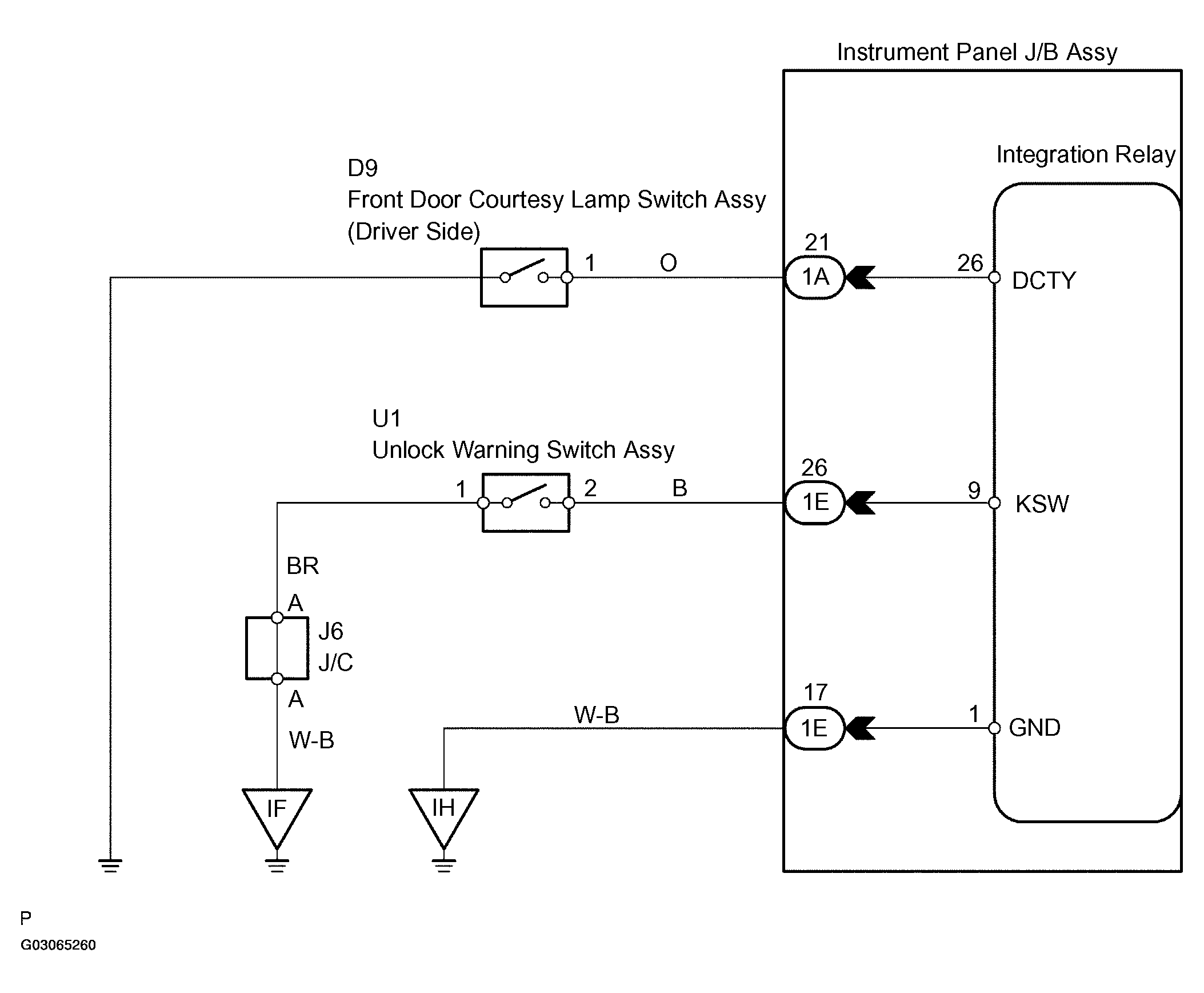

Fig 1: Key Lock-In Prevention Wiring Diagram
G03065260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
