Auto Up/Down Function Does Not Operate On Driver Side
›
Wiring Diagram
Auto Up/Down Function Does Not Operate On Driver Side: Wiring Diagram

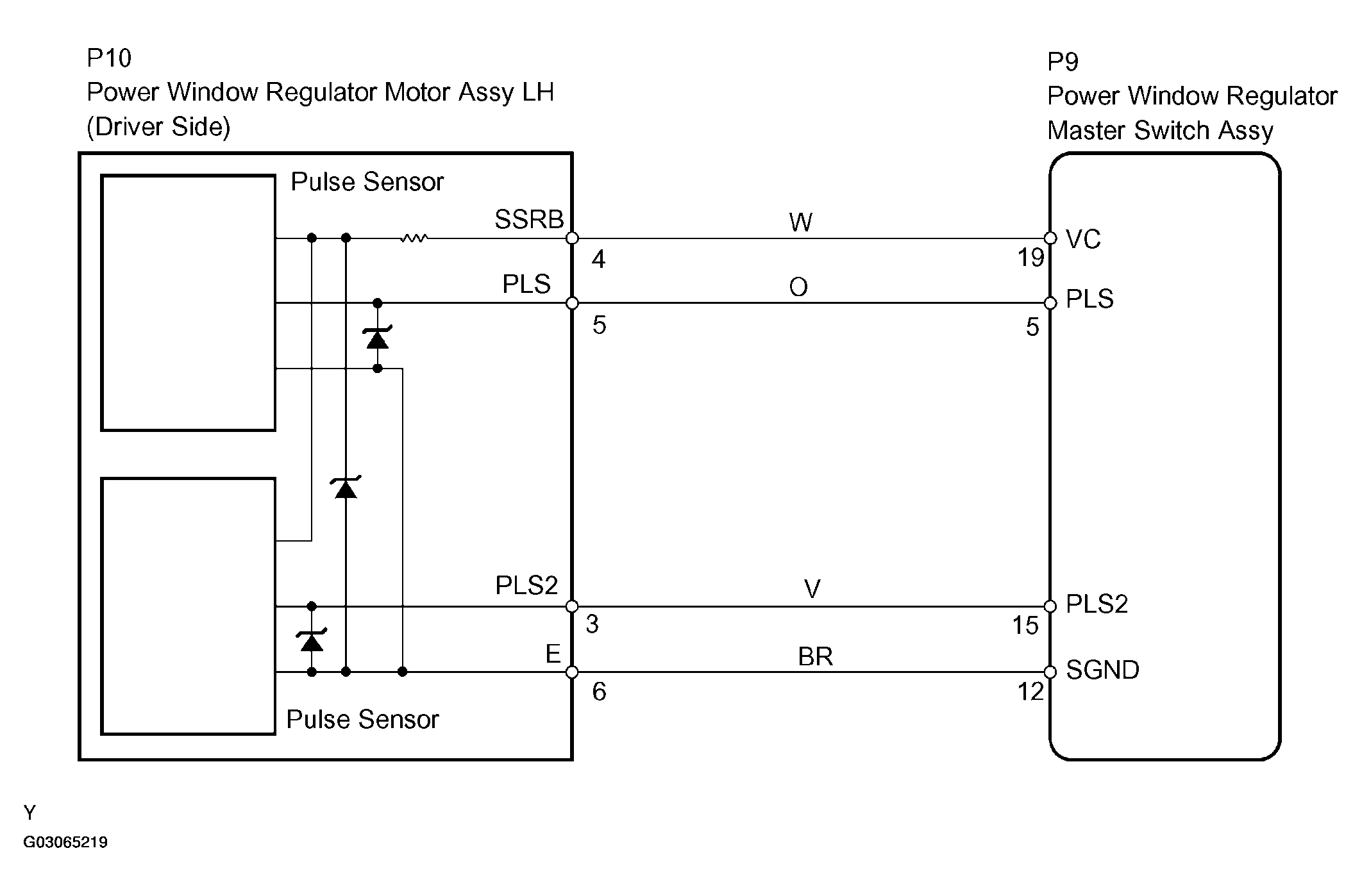

Fig 1: Wiring Diagram - Auto Up/Down (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
