Manual Up/Down Function Does Not Operate On Passenger Side Only: Wiring Diagram

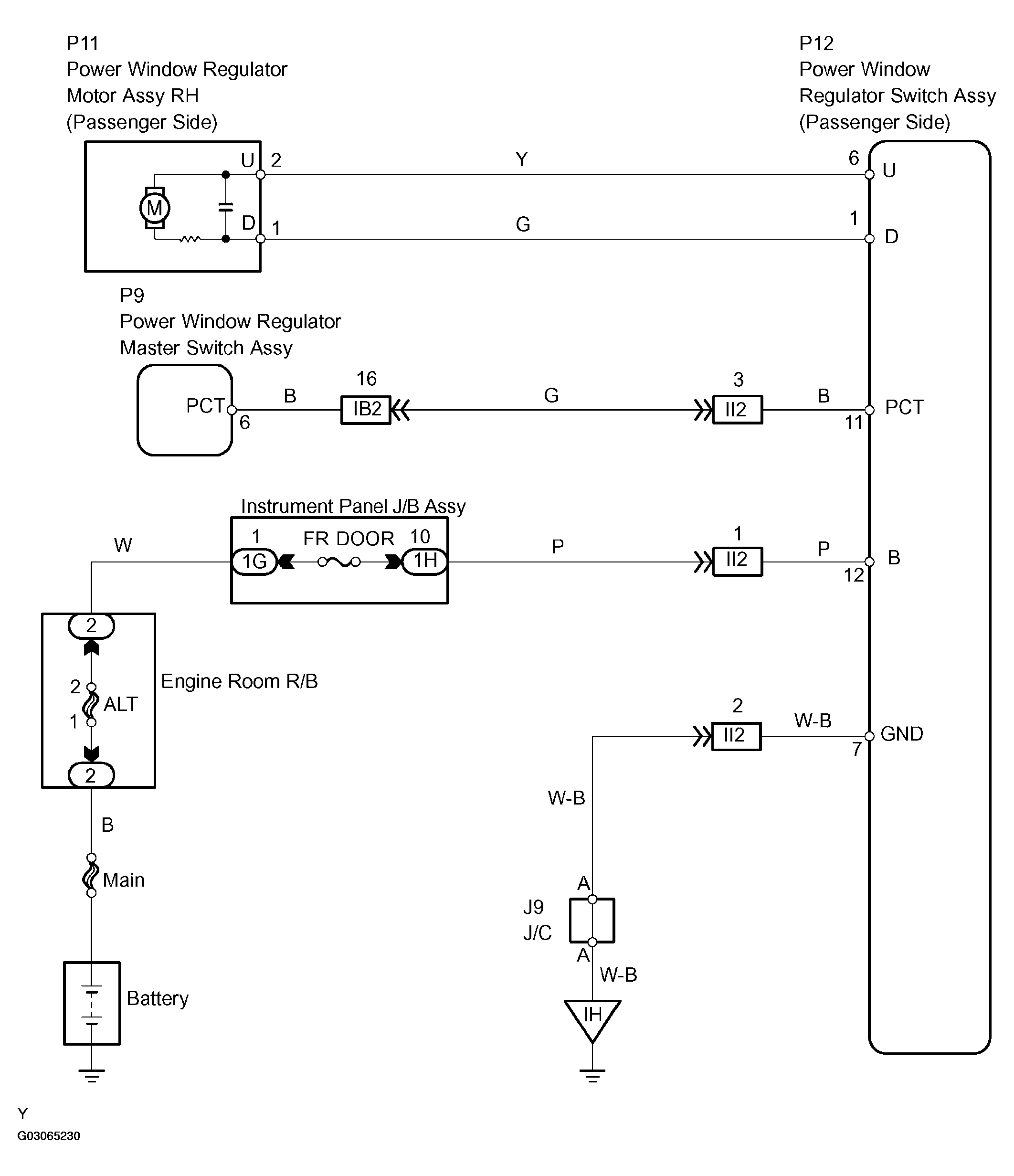

Fig 1: Wiring Diagram - Manual Up/Down (Passenger Side)
G03065230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
