Remote Up/Down Function Does Not Operate: Wiring Diagram

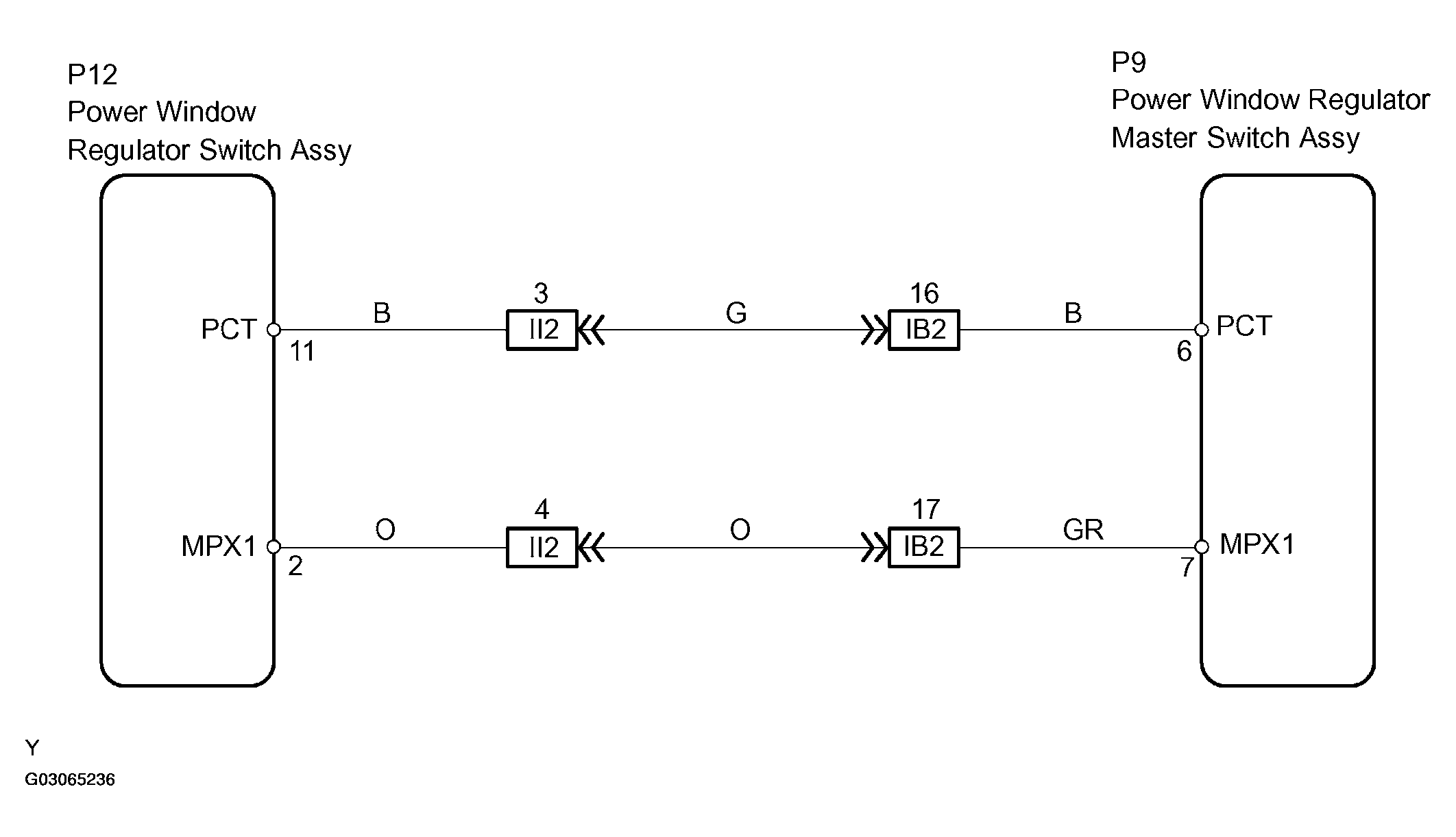

Fig 1: Wiring Diagram - REMOTE UP/DOWN
G03065236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
