Window Defogger System: Location

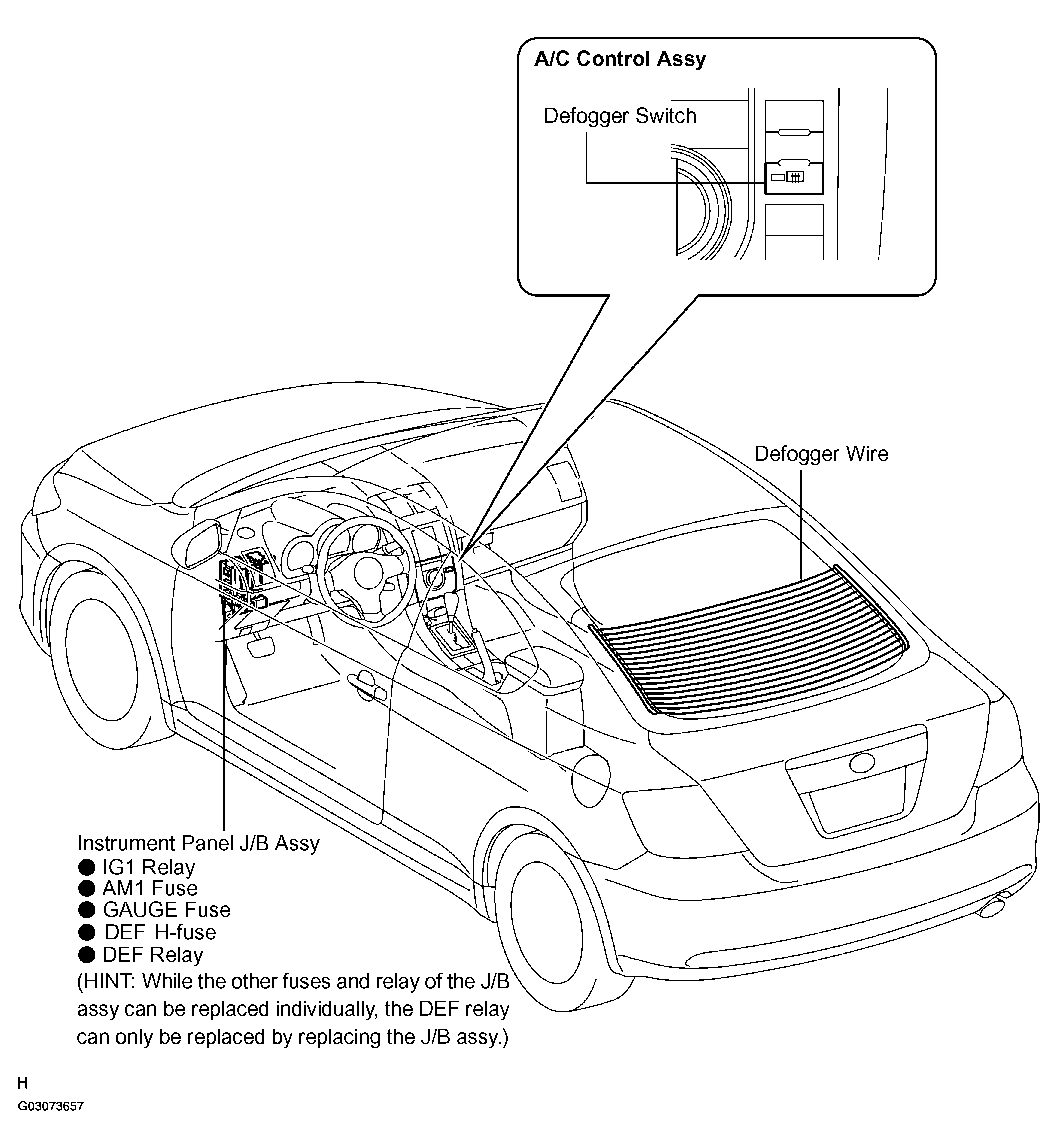

Fig 1: Identifying Window Defogger System Location

G03073657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
