Home › Scion › 2005 › tC Automatic › Repair and Diagnosis › Brakes › Traction Control › Abs With EBD System › Location

Abs With EBD System: Location

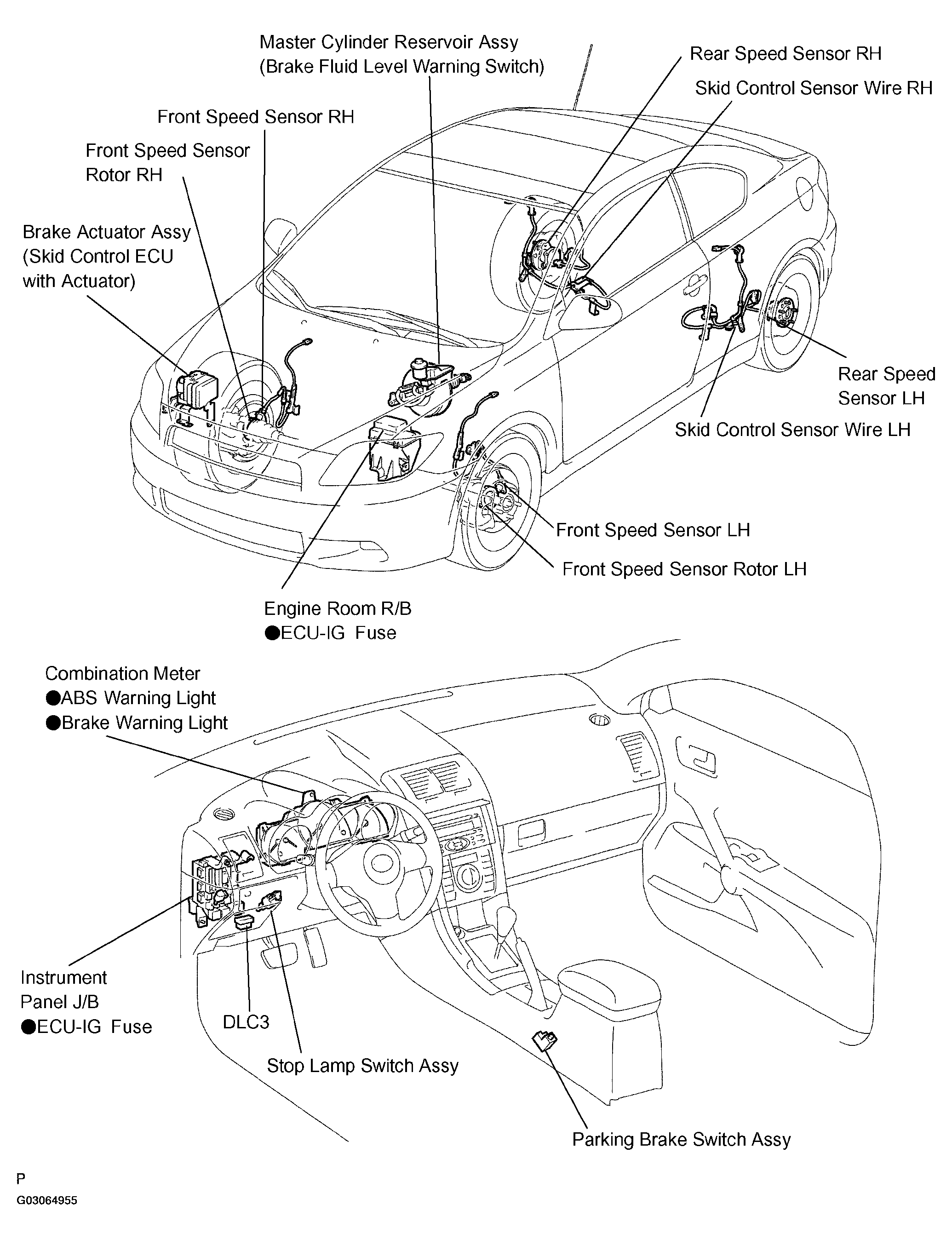

Fig 1: Locating ABS With EBD System Components
G03064955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
