Generator ASSY (2AZ-FE): Components

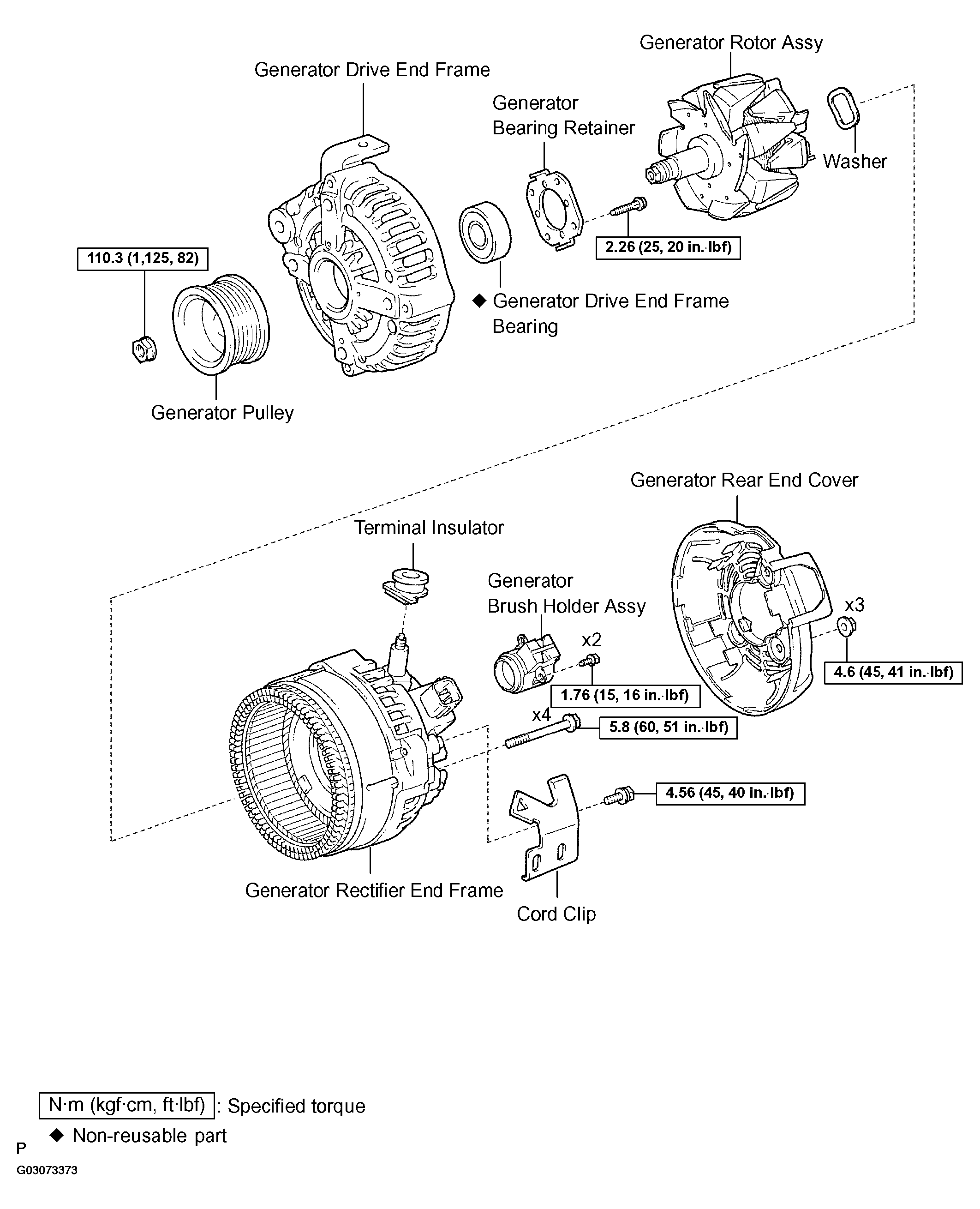

Fig 1: Exploded View Of Generator Assy (2AZ-FE) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

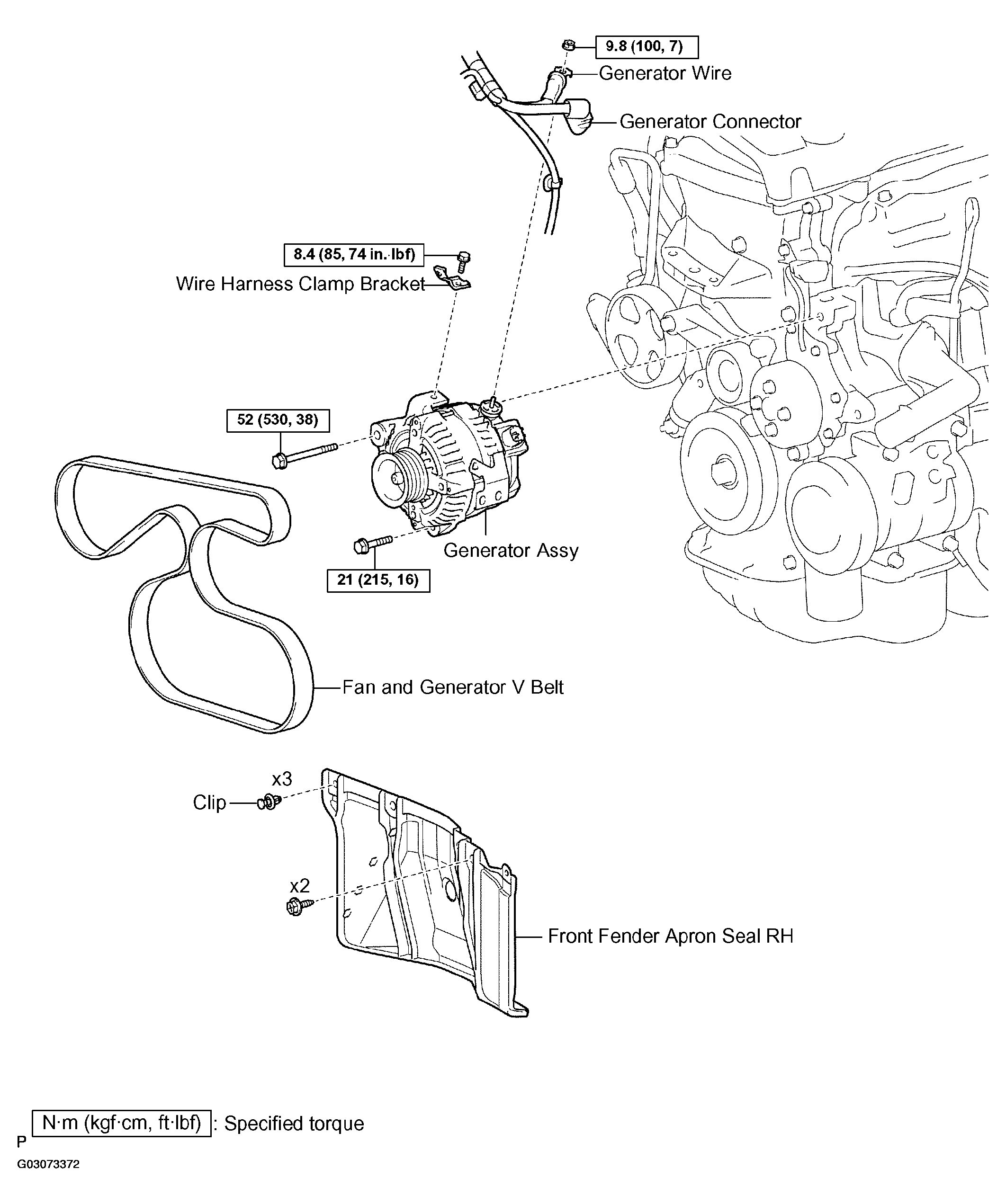

Fig 2: Exploded View Of Generator Assy (2AZ-FE) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
