Engine Exhaust Assembly: Components

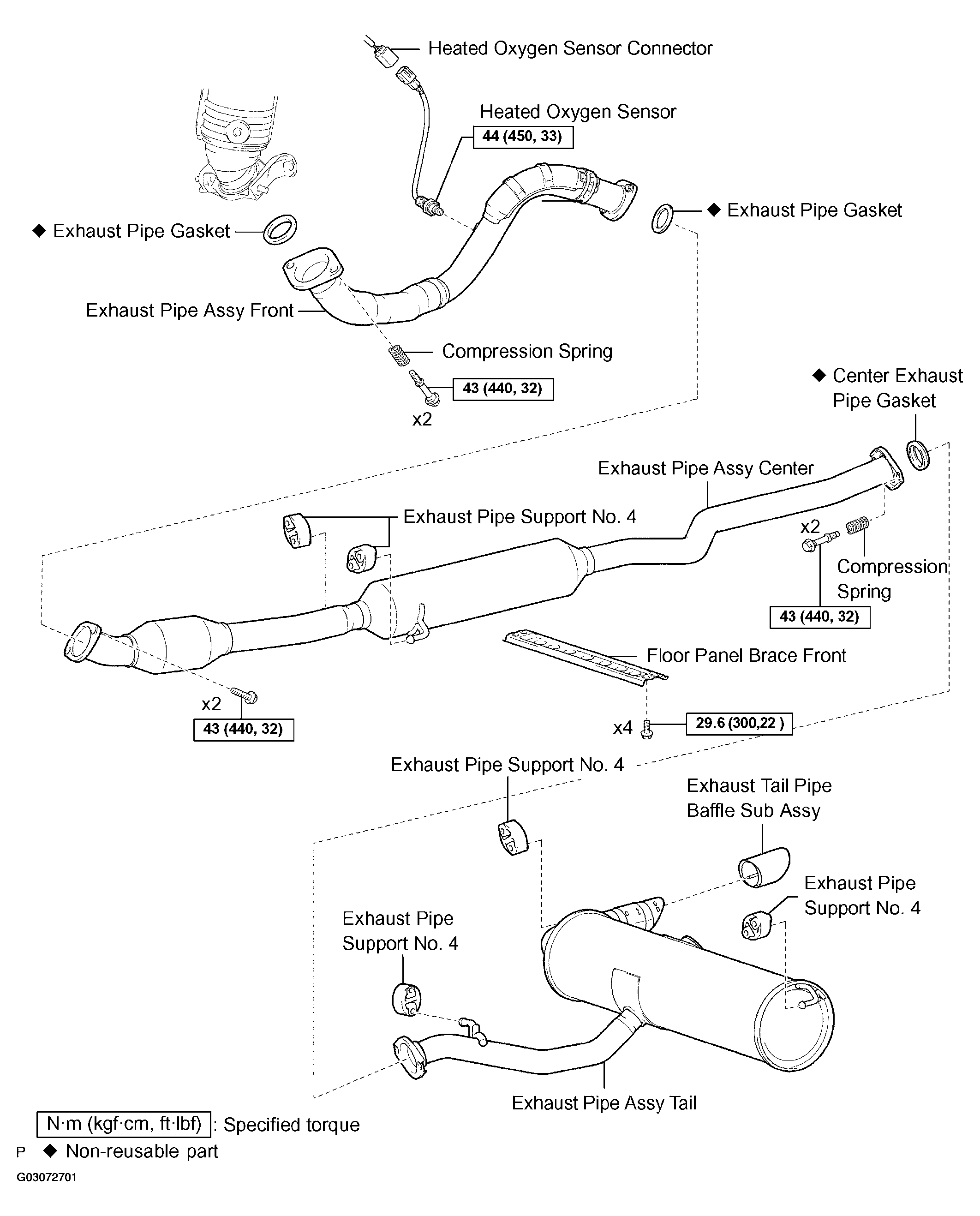

Fig 1: Identifying Exhaust Pipe Assembly Components (2AZ-FE)
G03072701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
