Fuel Injector ASSY (2AZ-FE): Components

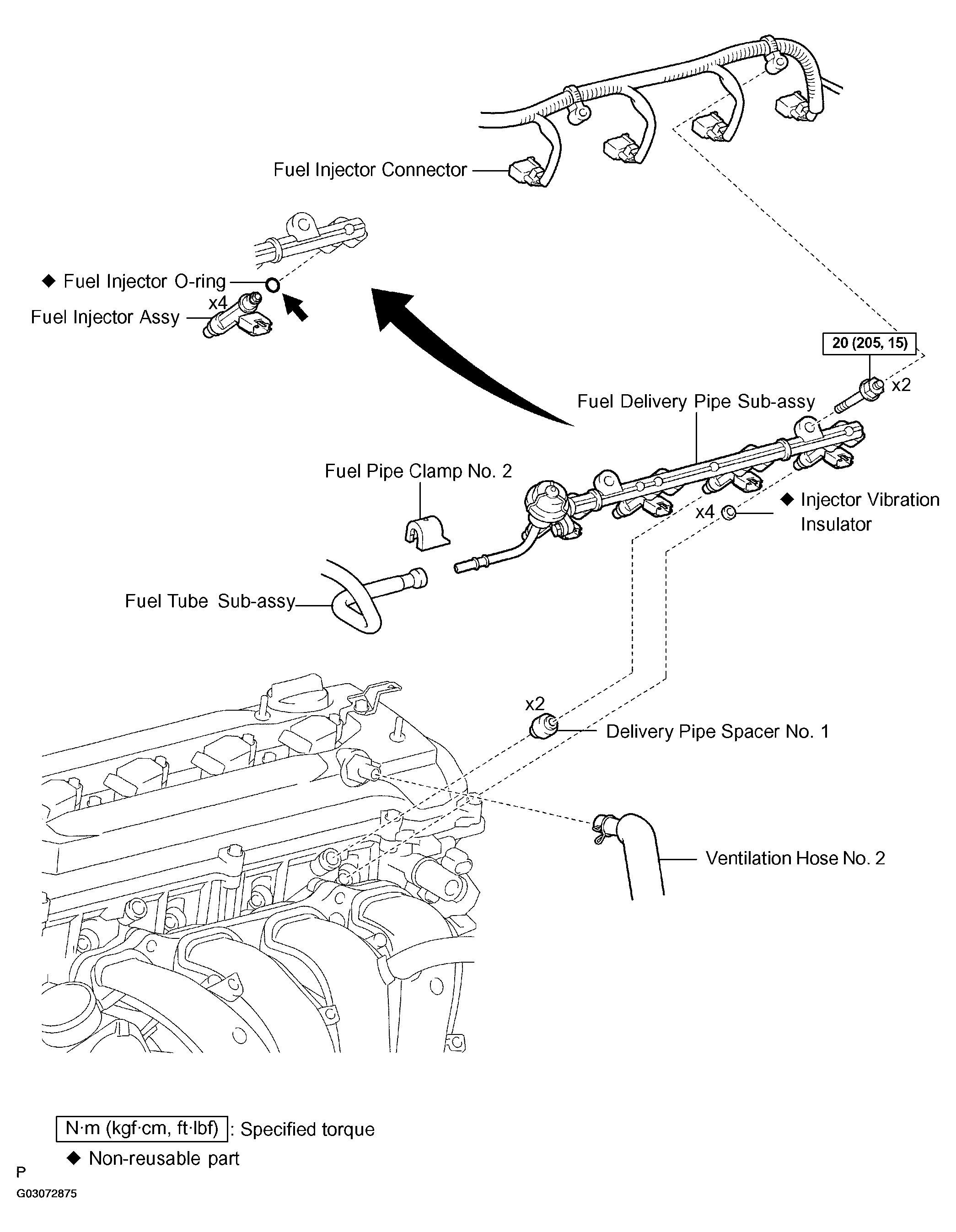

Fig 1: Identifying Fuel Injector Assy (2AZ-FE) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Fuel Injector Assy (2AZ-FE) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
