Fuel Tank ASSY (2AZ-FE): Components

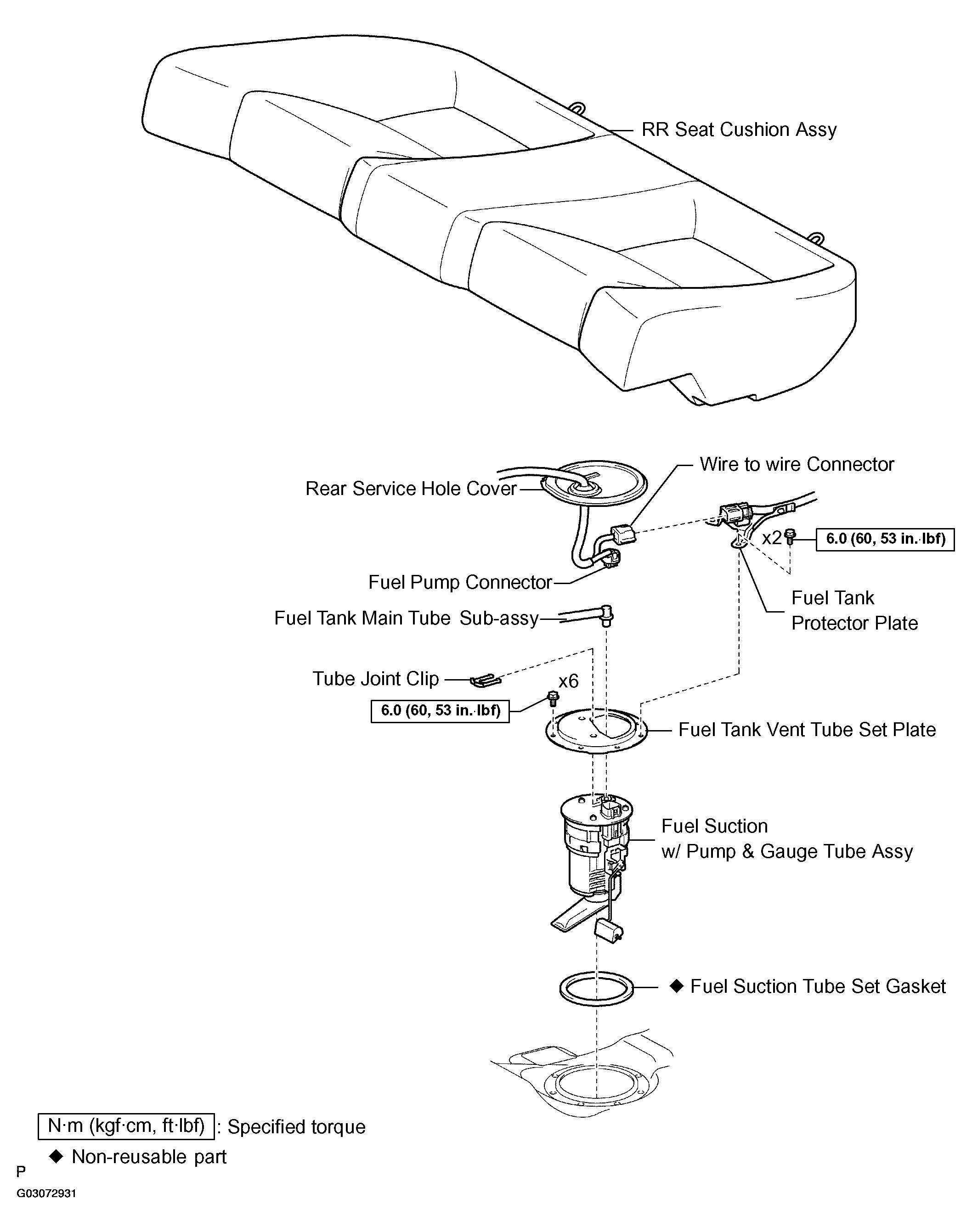

Fig 1: Identifying Fuel Tank Assy (2AZ-FE) Components (1 Of 3)
G03072931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

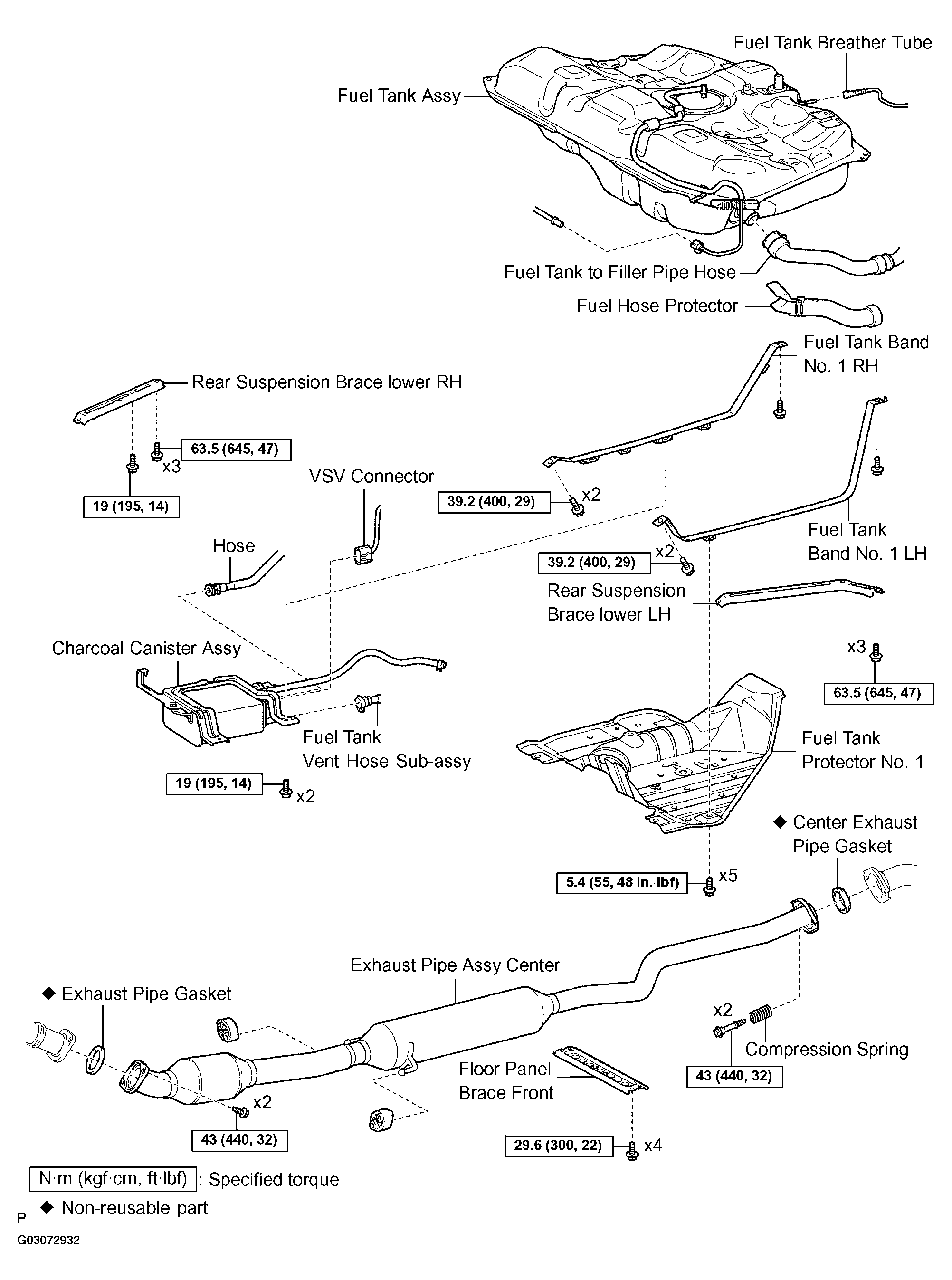

Fig 2: Identifying Fuel Tank Assy (2AZ-FE) Components (2 Of 3)
G03072932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

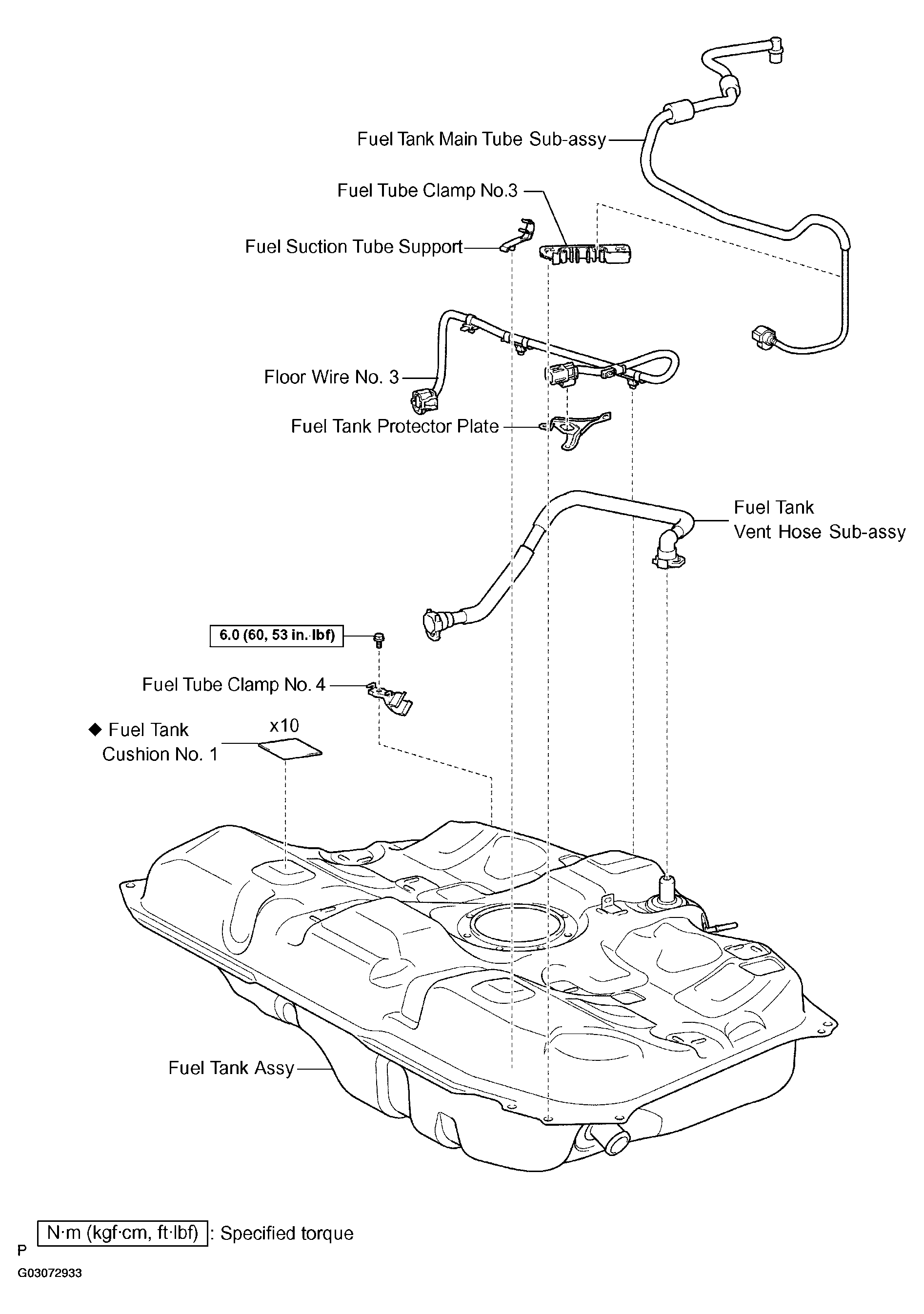

Fig 3: Identifying Fuel Tank Assy (2AZ-FE) Components (3 Of 3)
G03072933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
