Ignition Coil ASSY (2AZ-FE): Replacement

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.

INITIALIZE SYSTEMS

System Name	Refer to
Power Window Control System	INITIALIZATION
Sliding Roof System	INITIALIZATION

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE ENGINE COVER SUB-ASSY NO. 1 (See REPLACEMENT )
REMOVE IGNITION COIL ASSY
1. Disconnect the 4 ignition coil connectors.

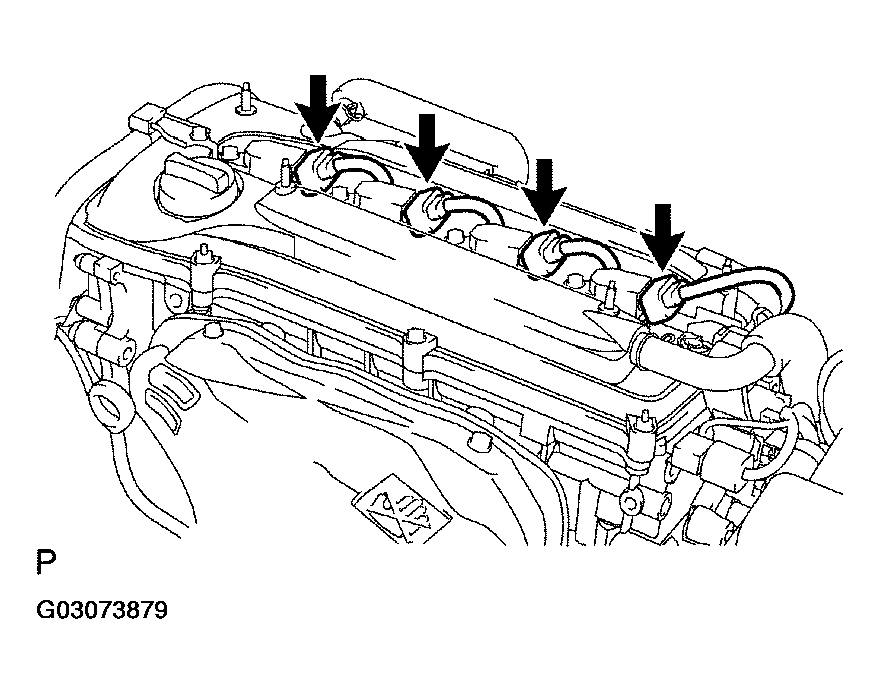

  Fig 1: Disconnecting 4 Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts, then 4 ignition coils.
HINT:

1 ignition coil is installed with 1 bolt.

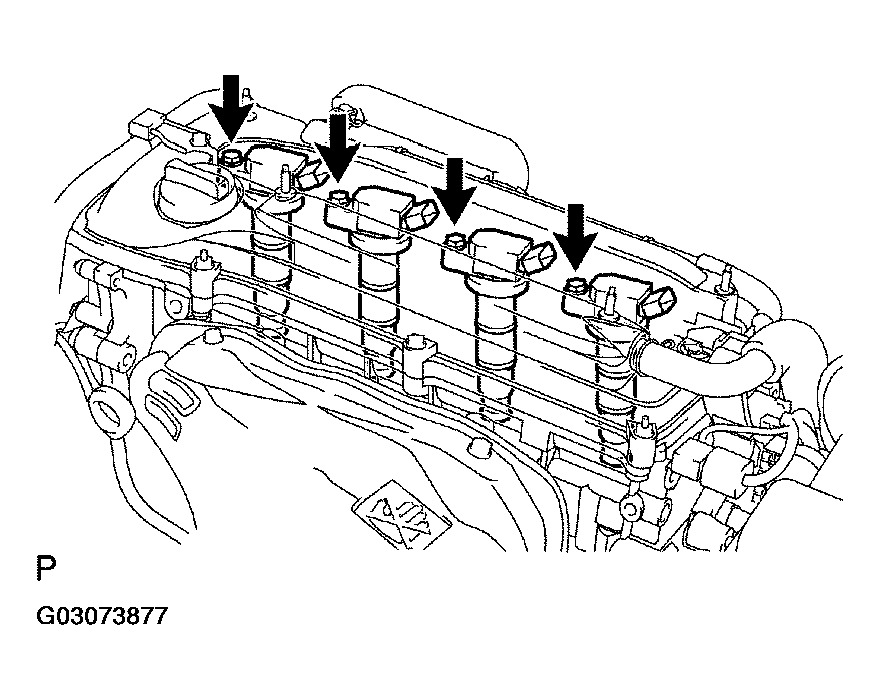

Fig 2: Removing 4 Ignition Coils
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IGNITION COIL ASSY
1. Install the 4 ignition coils with the 4 bolts.
  1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
  HINT:

  1 ignition coil is installed with 1 bolt.

  Fig 3: Installing 4 Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 ignition coil connectors.
Fig 4: Connecting 4 Ignition Coil Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE COVER SUB-ASSY NO. 1 (See REPLACEMENT )
CONNECT BATTERY NEGATIVE TERMINAL
1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
