Accelerator Pedal ASSY (2AZ-FE): Replacement

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.

SYSTEM SPECIFICATIONS

System	Refer To
Power window control system	INITIALIZATION
Sliding roof system	INITIALIZATION

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE ACCELERATOR PEDAL ASSY
1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts, then remove the accelerator pedal.

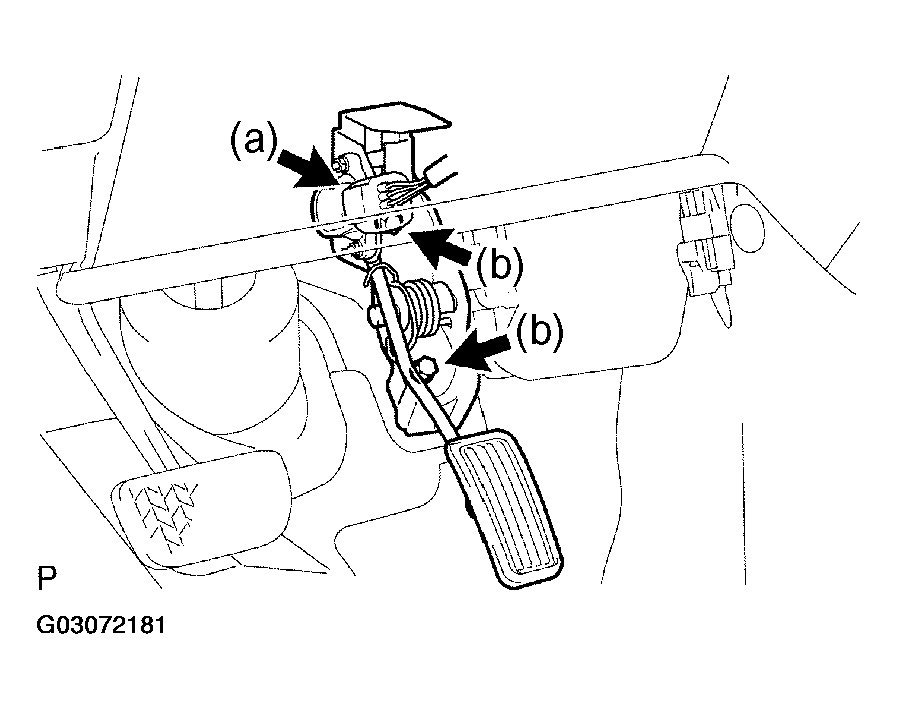

  Fig 1: Removing Accelerator Pedal Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ASSY
1. Install the accelerator pedal with the 2 bolts.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
2. Connect the accelerator position sensor connector.

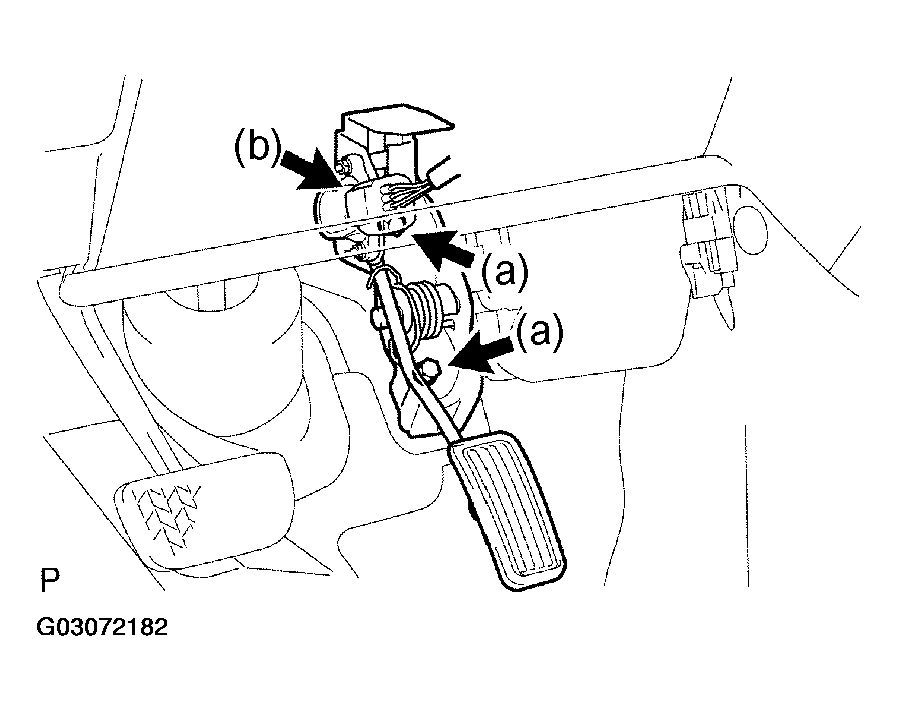

  Fig 2: Installing Accelerator Pedal Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE TERMINAL
1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
