Waveform 8
Camshaft timing oil control valve (OCV)

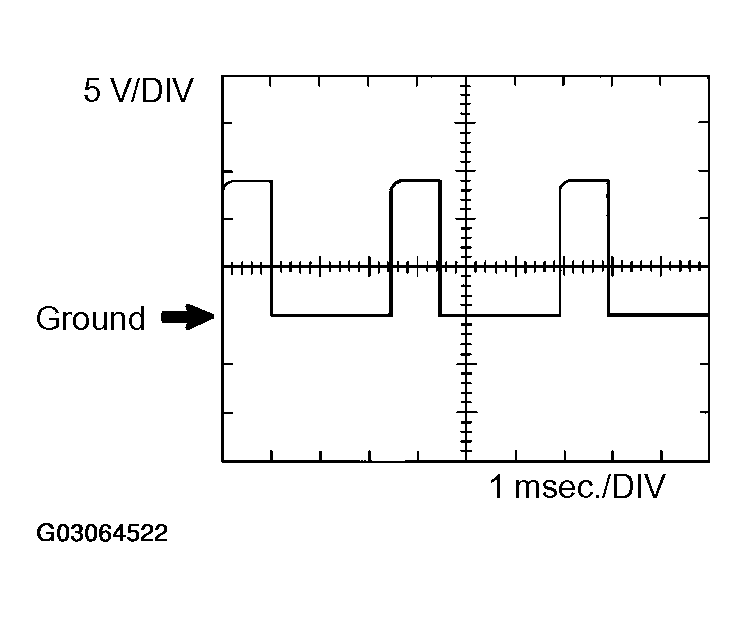

WAVEFORM 8 (CAMSHAFT TIMING OIL CONTROL VALVE (OCV))
| ECM Terminal Names |
Between OC1+ and OC1- |
| Tester Ranges |
5V/DIV, 1 msec./DIV |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine RPM increases.
