General Information
›
OEM General Information
›
Service Specifications
›
Brake System
›
Torque Specifications
Torque Specifications

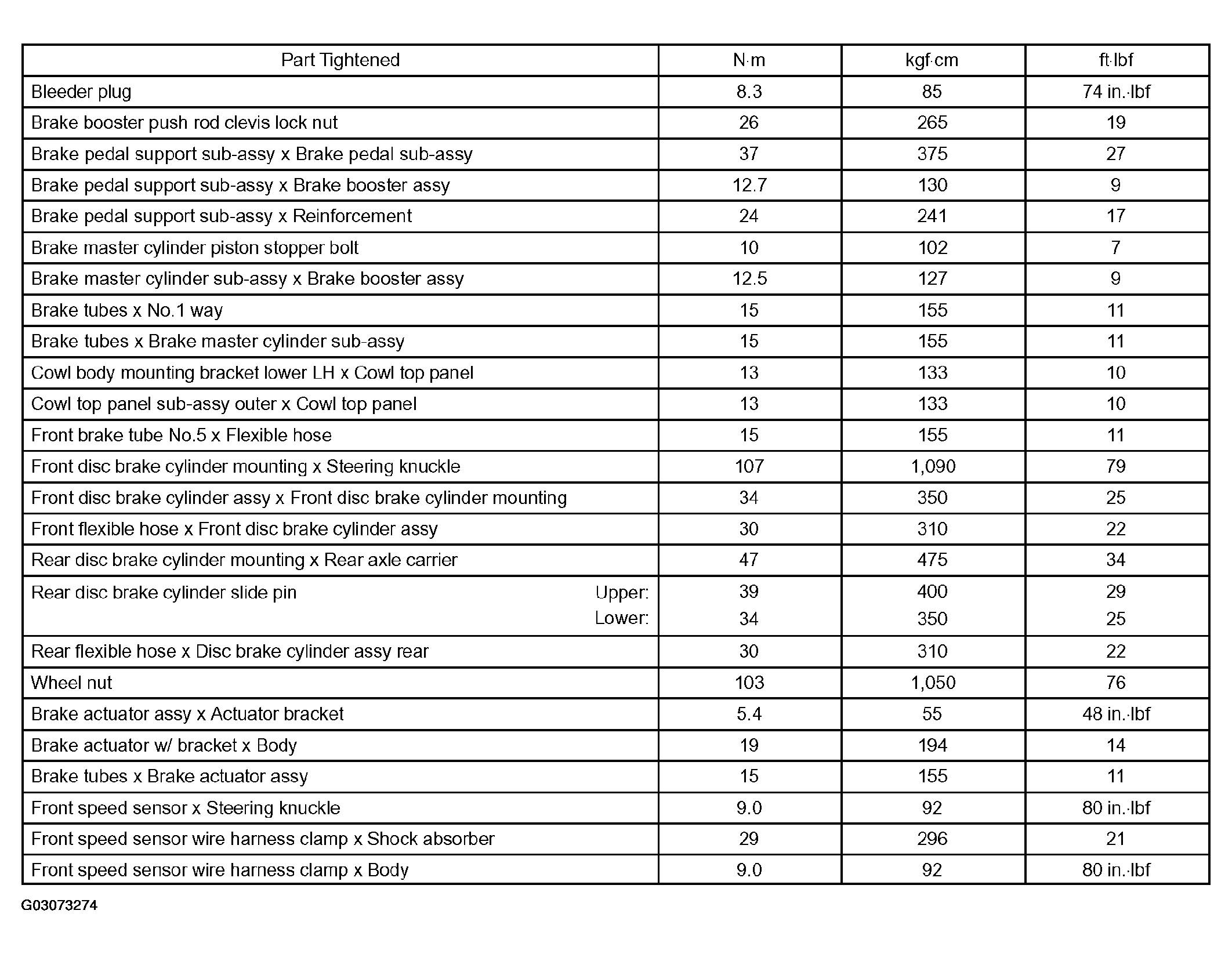

Fig 1: Brake Components Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
