Service Specifications
›
Manual Transaxle
›
Torque Specifications
Torque Specifications

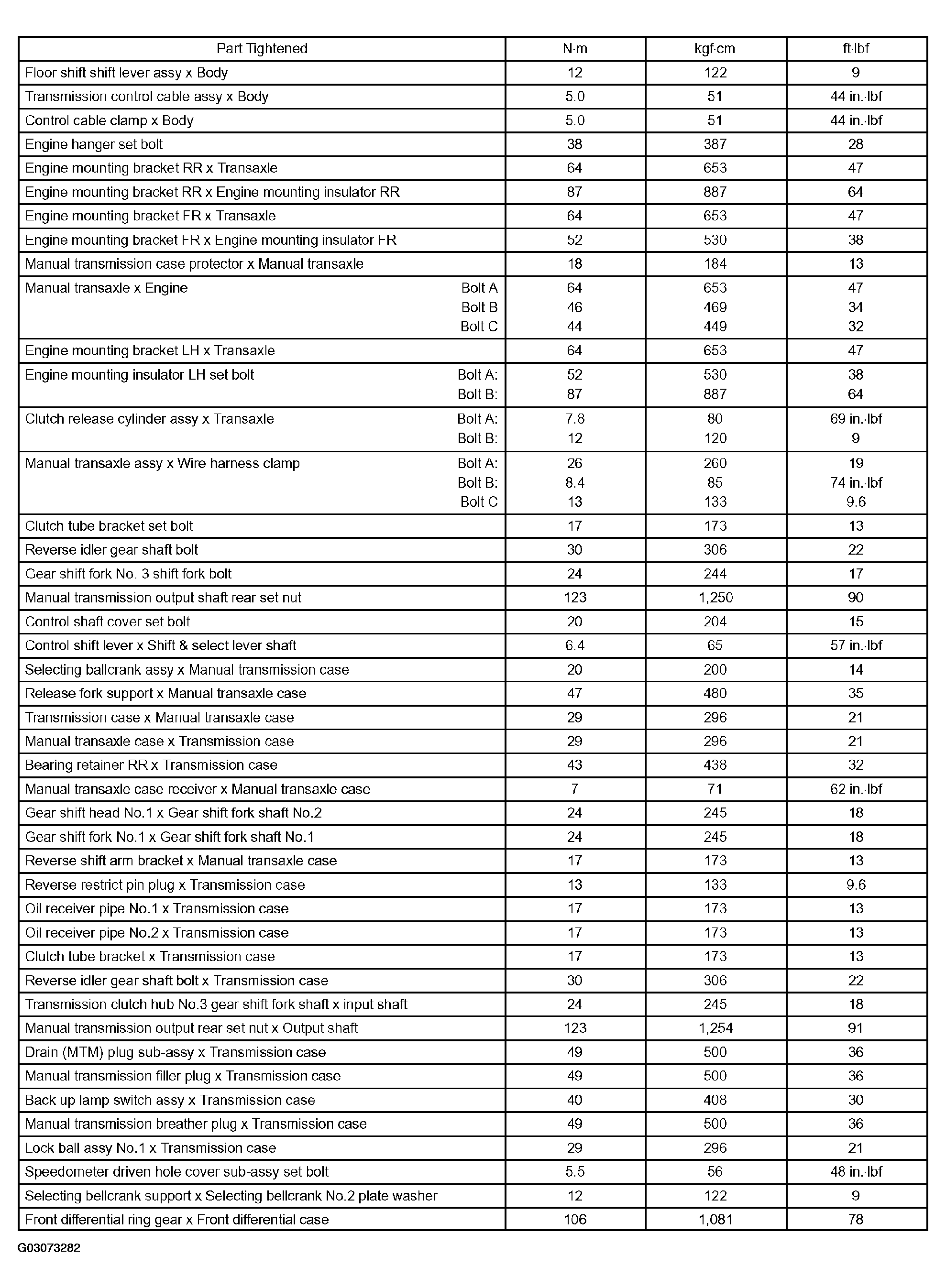

Fig 1: Manual Transmission / Transaxle Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
