Power Steering System
›
Torque Specifications
Torque Specifications

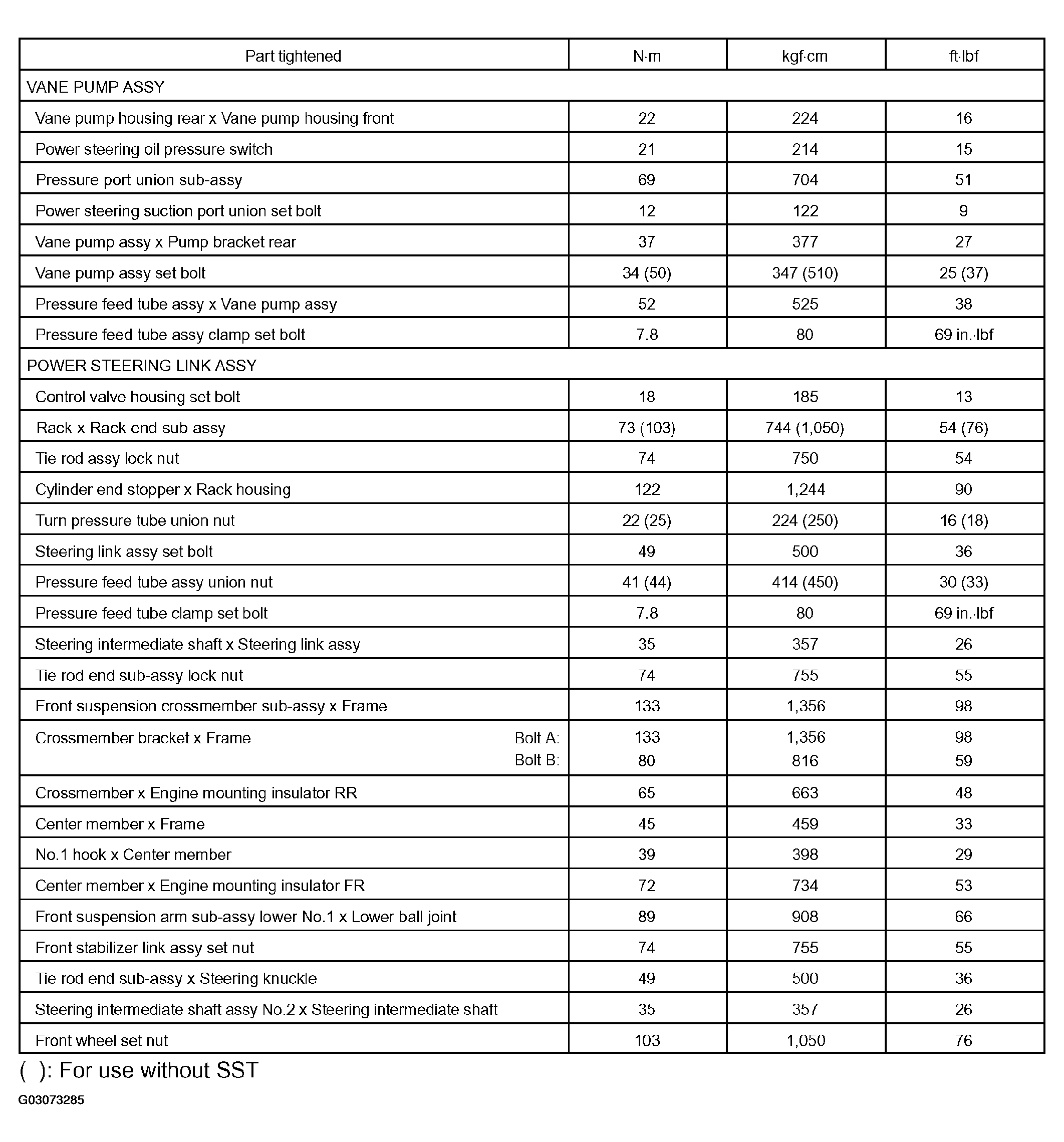

Fig 1: Power Steering Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
