Park/Neutral Position Switch ASSY (ATM): Replacement

REMOVE ENGINE UNDER COVER LH
DISCONNECT TRANSMISSION CONTROL CABLE ASSY

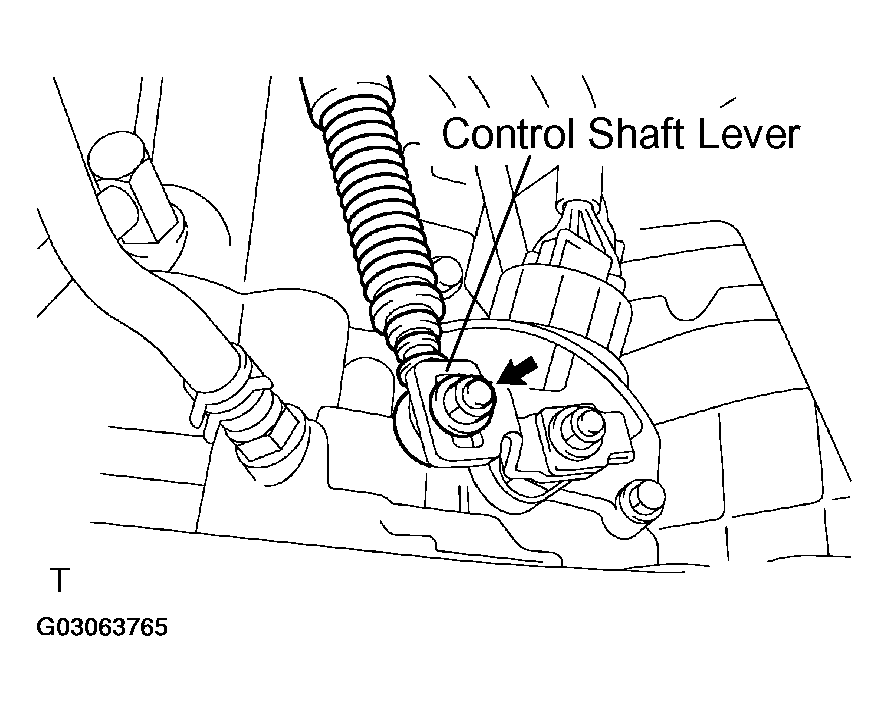

1. Remove the nut from the control shaft lever.
2. Disconnect the control cable from the control shaft lever.

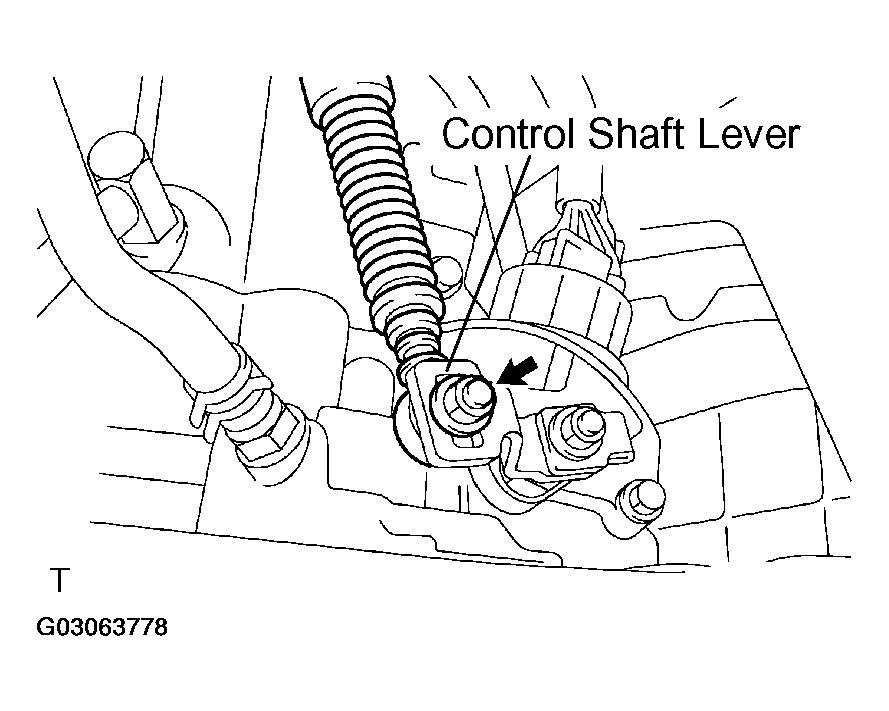

  Fig 1: Removing Bolts And Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the control cable from the control cable bracket.

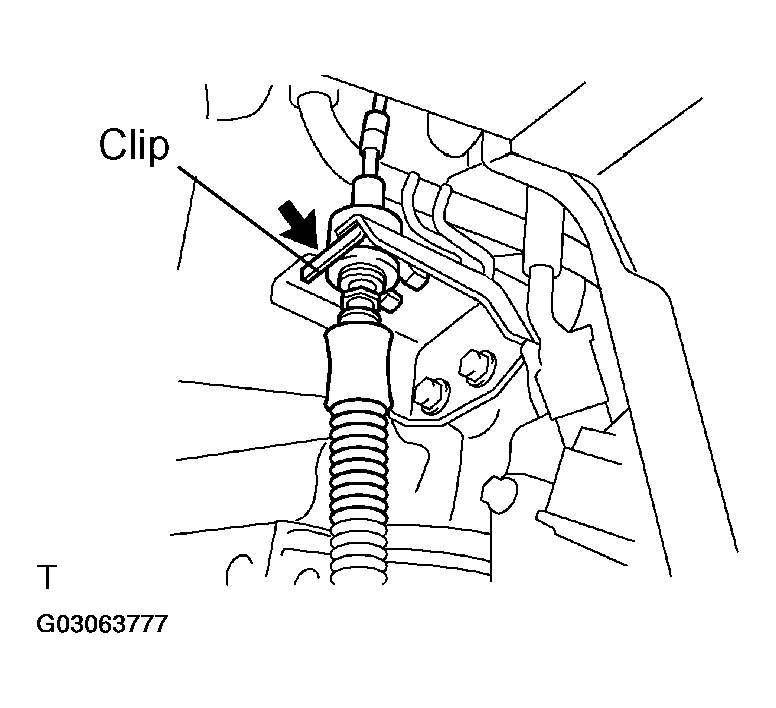

Fig 2: Removing Control Cable Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
1. Disconnect the park/neutral position switch connector.

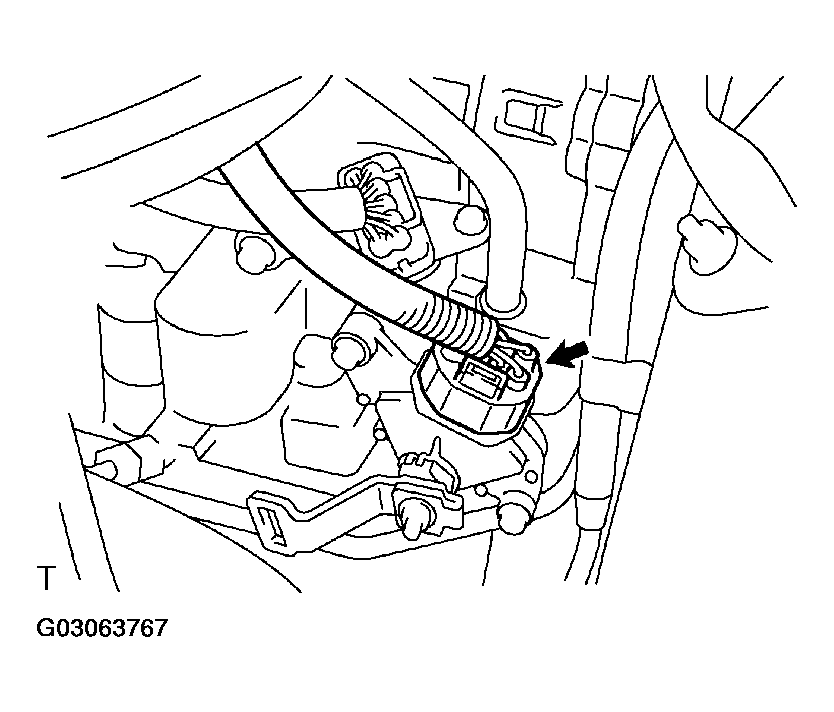

  Fig 3: Disconnecting Park/Neutral Position Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, washer and control shaft lever.

  Fig 4: Removing Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pry up the lock plate and remove the manual valve shaft nut and lock plate.

  Fig 5: Removing Valve Shaft Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts and pull out the park/neutral position switch.
Fig 6: Removing Park/Neutral Position Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
1. Install the park/neutral position switch to the manual valve shaft.
2. Temporarily install the 2 bolts.

  Fig 7: Installing Park/Neutral Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place a new lock plate and tighten the nut.
  1. Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)
4. Temporarily install the control shaft lever.

  Fig 8: Tightening Torque And Park/Neutral Position Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
6. Remove the control shaft lever.

  Fig 9: Turning Control Shaft Lever Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Align the groove with the neutral basic line.
8. Hold the switch in position and tighten the 2 bolts.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
  Fig 10: Identifying Aligning Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a screwdriver, stake the nut with the lock plate.

  Fig 11: Staking Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the control shaft lever, washer and nut.
  1. Torque: 13 N.m (130 kgf.cm, 10 ft.lbf)
11. Connect the park/neutral position switch connector.
Fig 12: Installing Control Shaft Lever
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Install the control cable and clip to the control cable bracket.

  Fig 13: Installing Control Cable & Clip To Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Temporarily install the control cable to the control shaft lever with the nut.
Fig 14: Identifying Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER LH
ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (SEE ADJUSTMENT )
