Transmission Control Cable ASSY (ATM): Replacement

REMOVE AIR CONDITIONING RADIATOR ASSY (SEE OVERHAUL )
REMOVE EXHAUST PIPE ASSY (SEE REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE ENGINE UNDER COVER LH
DISCONNECT TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut from the control shaft lever.
2. Disconnect the control cable from the control shaft lever.

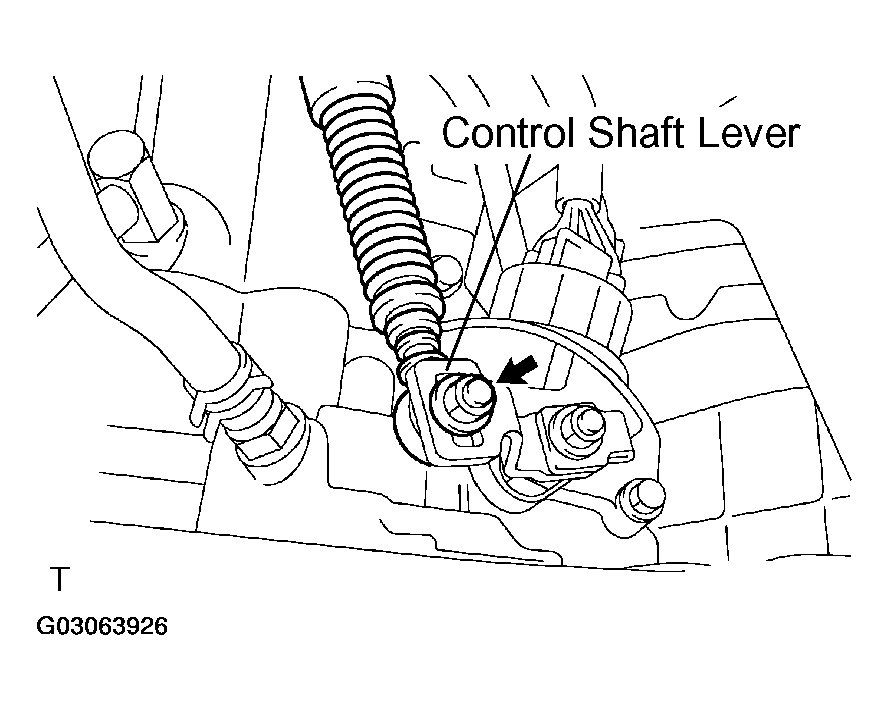

  Fig 1: Removing Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the control cable from the control cable bracket.

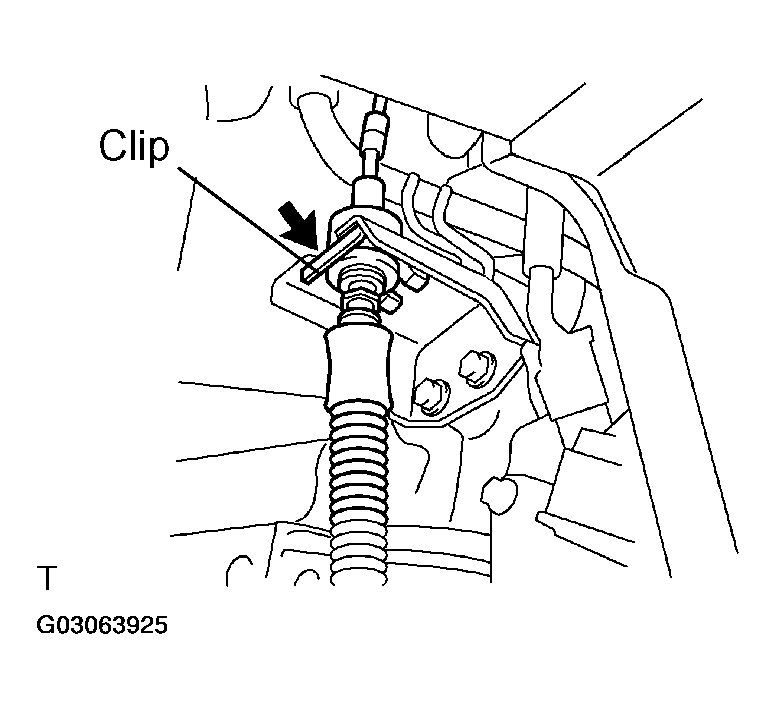

  Fig 2: Removing Clip And Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the control cable from the control cable clamp.

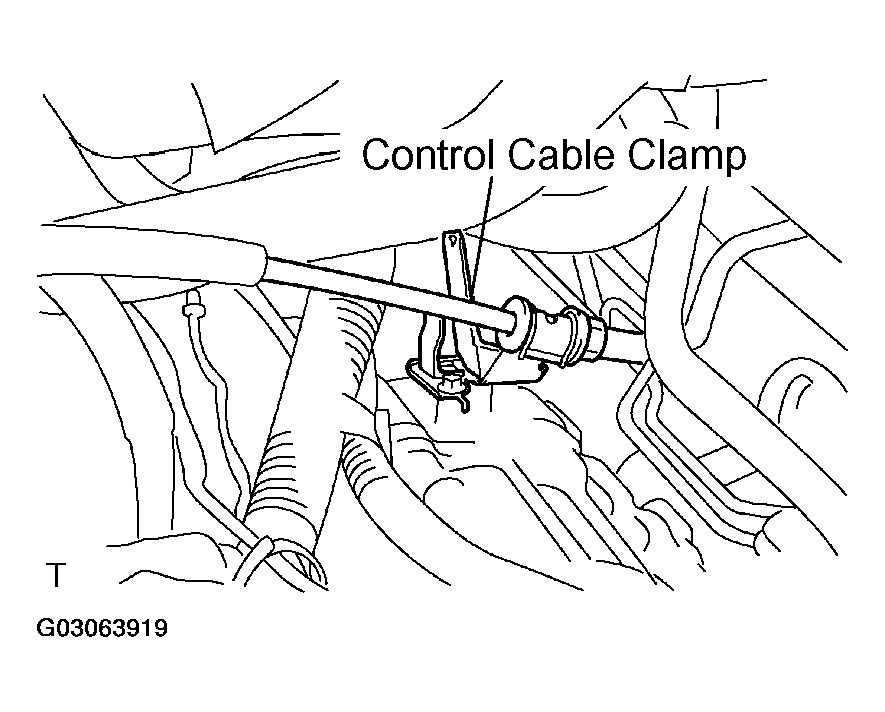

Fig 3: Disconnecting Control Cable From Control Cable Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the 2 bolts and disconnect the shift cable grommet retainer No.2.

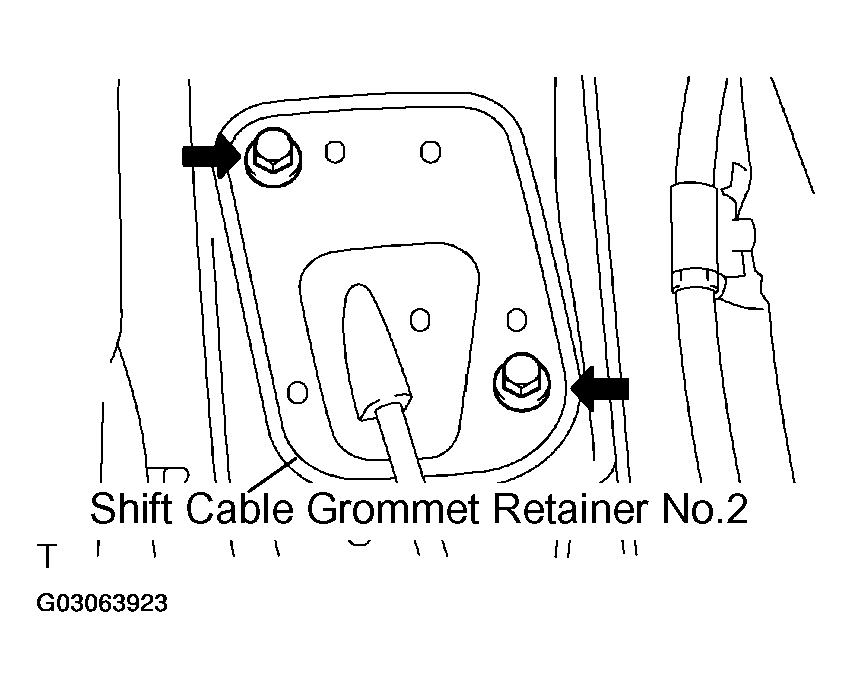

  Fig 4: Disconnecting Shift Cable Grommet Retainer No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the floor shift cable from the transmission floor shift assy.
3. Pull out the control cable from the body.
4. Remove the shift cable grommet retainer No.2.

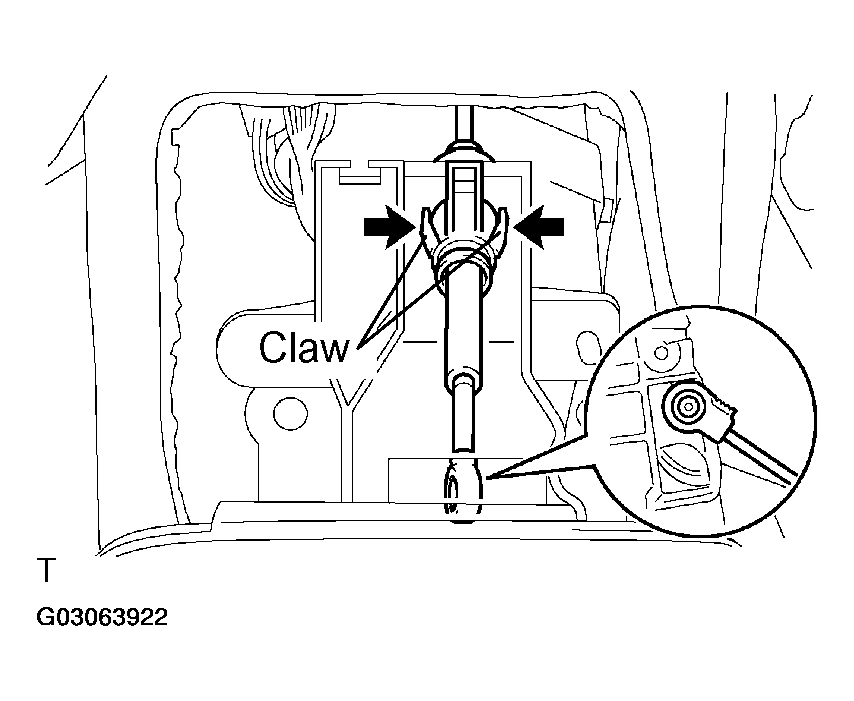

Fig 5: Identifying Claw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Put in the control cable to the body.
2. Install the shift cable grommet retainer No.2 to the floor shift cable.
3. Install the floor shift cable as shown in Fig 6 .
  HINT:

  Securely engage the claws.

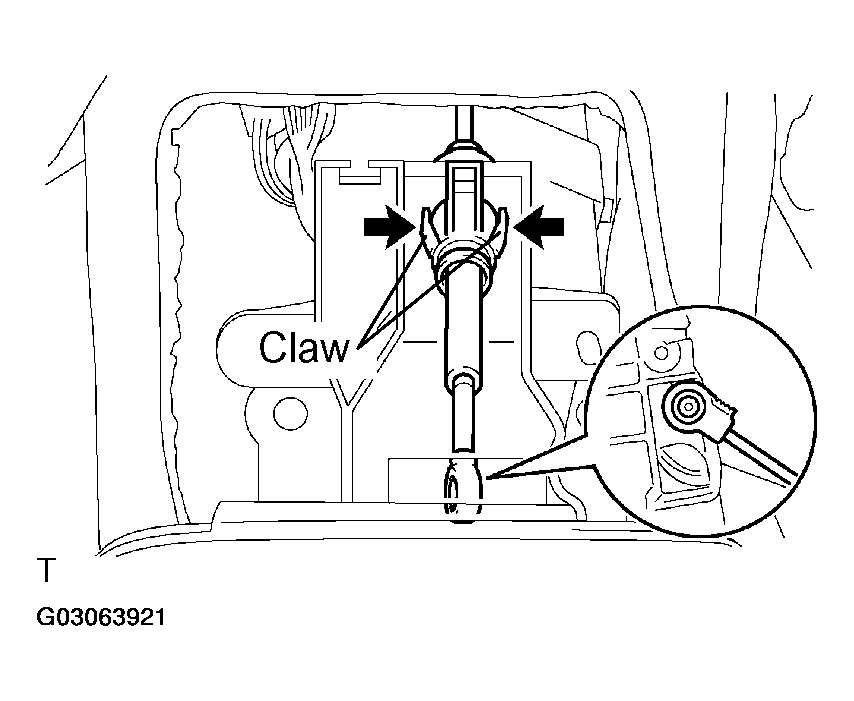

  Fig 6: Engaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the shift cable grommet retainer No.2 with the 2 bolts.
  1. Torque: 5.0 N.m (50 kgf.cm, 43 in.lbf)
Fig 7: Installing Shift Cable Grommet Retainer No.2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSY
1. Connect the control cable to the control cable clamp.

  Fig 8: Connecting Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the control cable with the clip to the bracket.

  Fig 9: Connecting Control Cable With Clip To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the control cable to the control shaft lever with the nut.

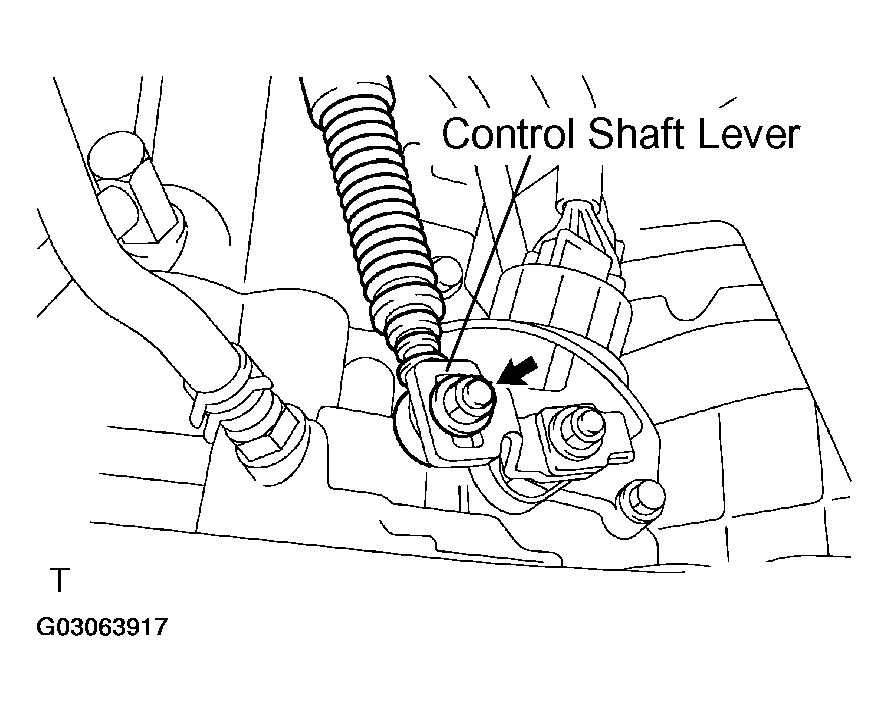

Fig 10: Installing Control Cable To Control Shaft Lever And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CONDITIONING RADIATOR ASSY (SEE OVERHAUL )
INSTALL EXHAUST PIPE ASSY (SEE REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSTALL ENGINE UNDER COVER LH
