Electronic Controlled Automatic Transaxle (ECT): Location

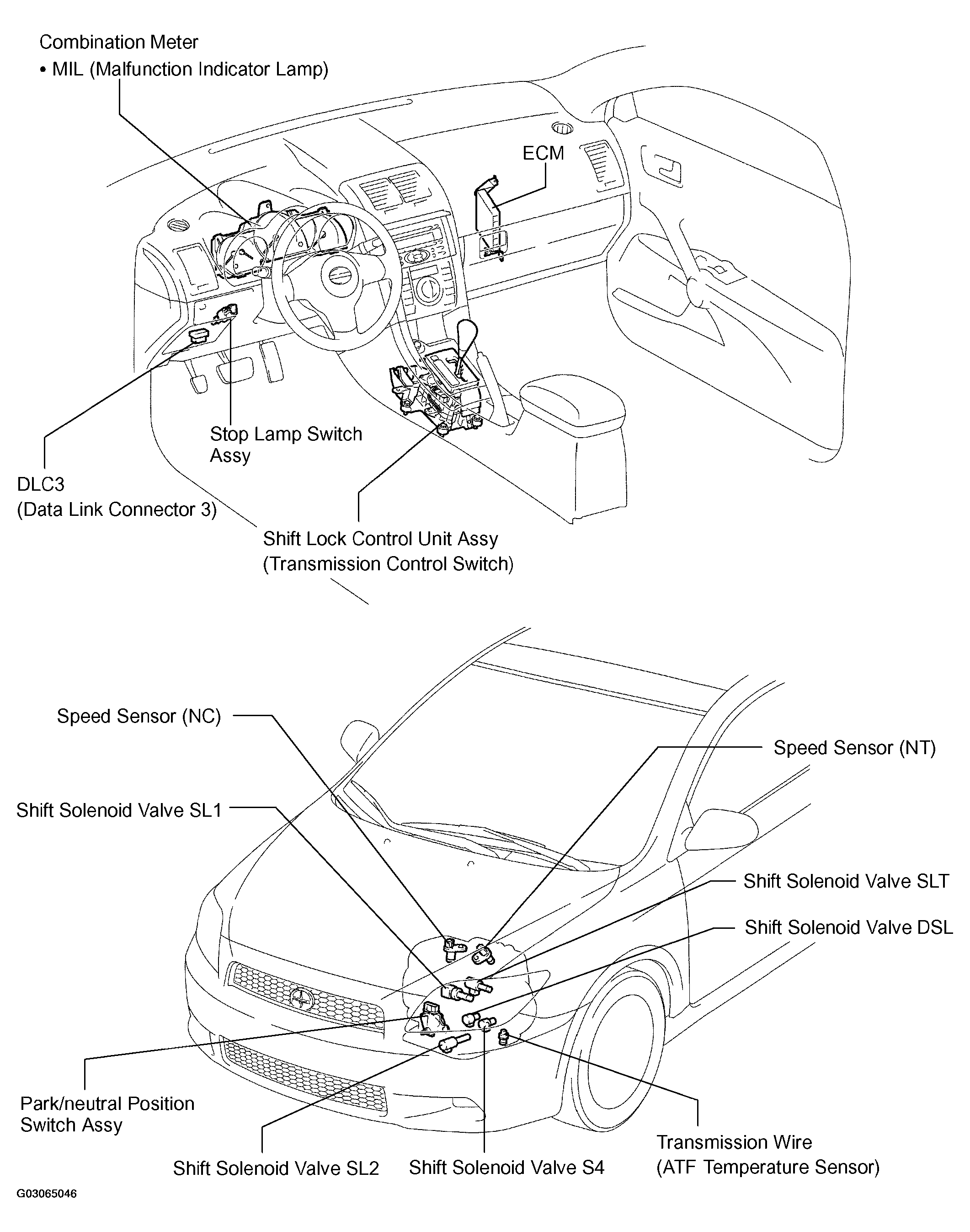

Fig 1: Identifying Electronic Controlled Automatic Transaxle (ECT) Electrical Components Locations
G03065046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
