Problem Symptoms Table

HINT:

Use the table shown in Fig 2, with suspected areas listed in numerical order, to determine the cause of the problem.

Inspect and repair or replace parts as necessary according to the steps in the following information.

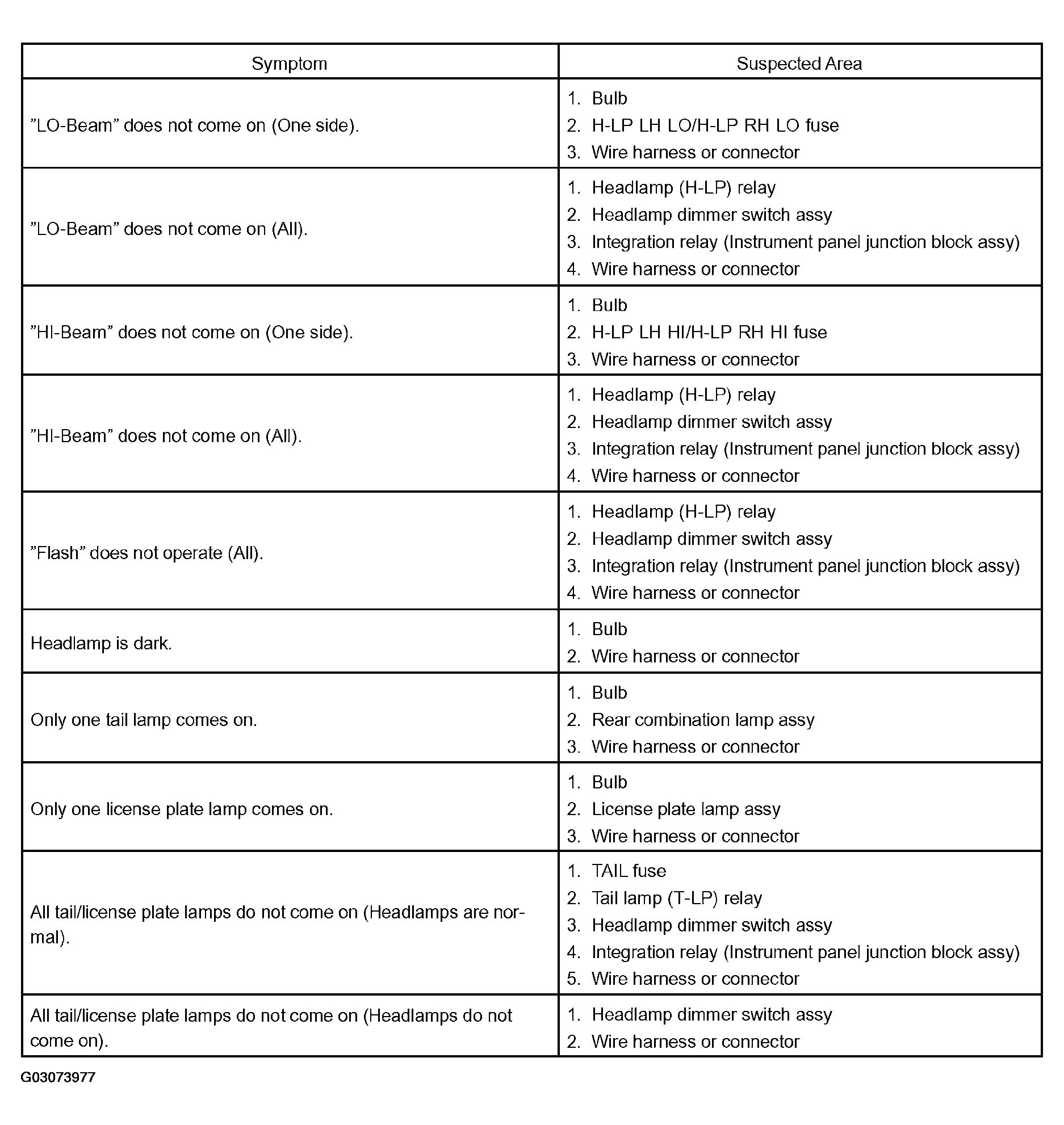

1. HEADLAMP AND TAIL LAMP SYSTEM
   Fig 1: Problem Symptoms Chart Headlamp And Tail Lamp System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

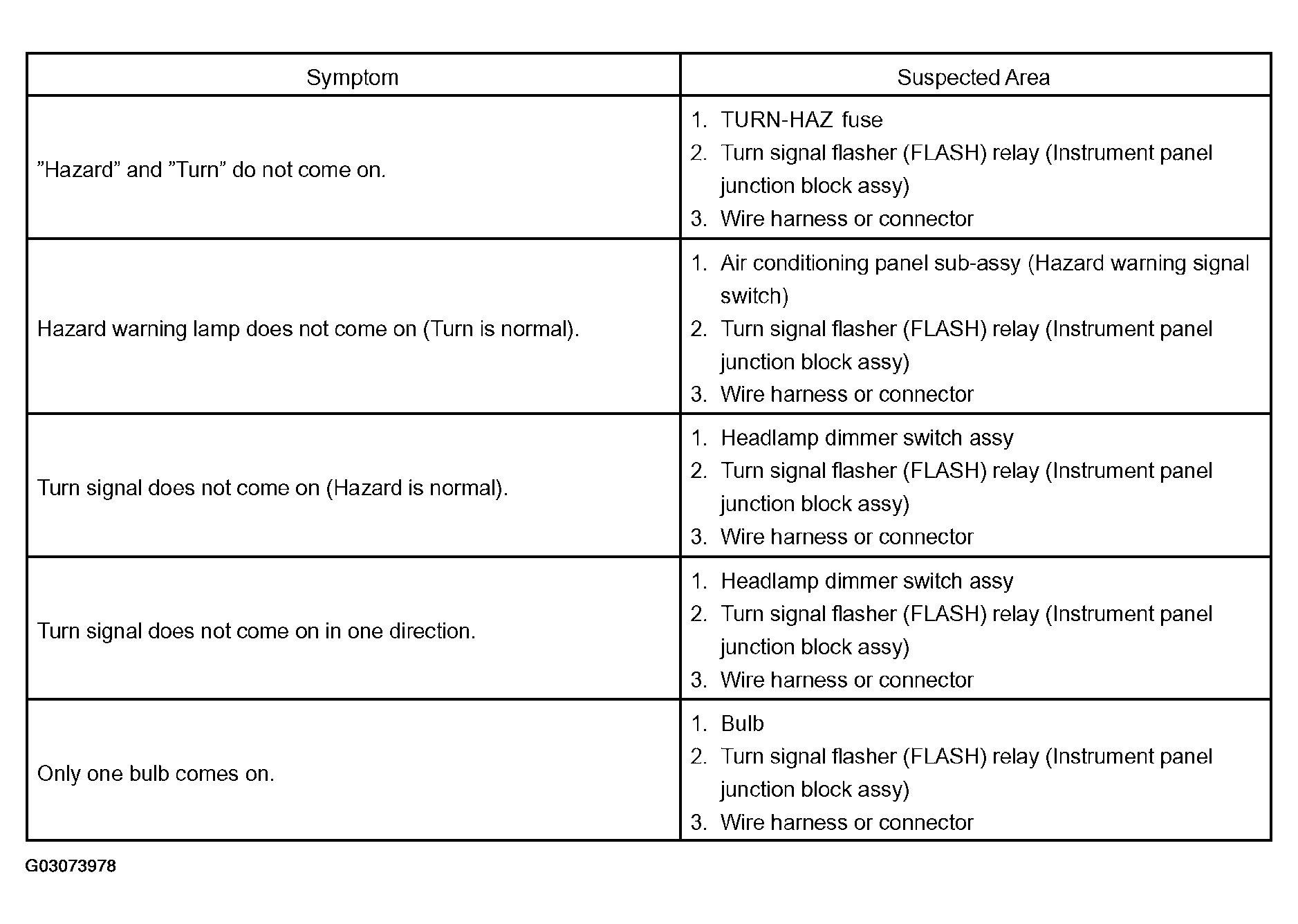

2. TURN SIGNAL AND HAZARD WARNING SYSTEM
   Fig 2: Problem Symptoms Chart Turn Signal And Hazard Warning System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

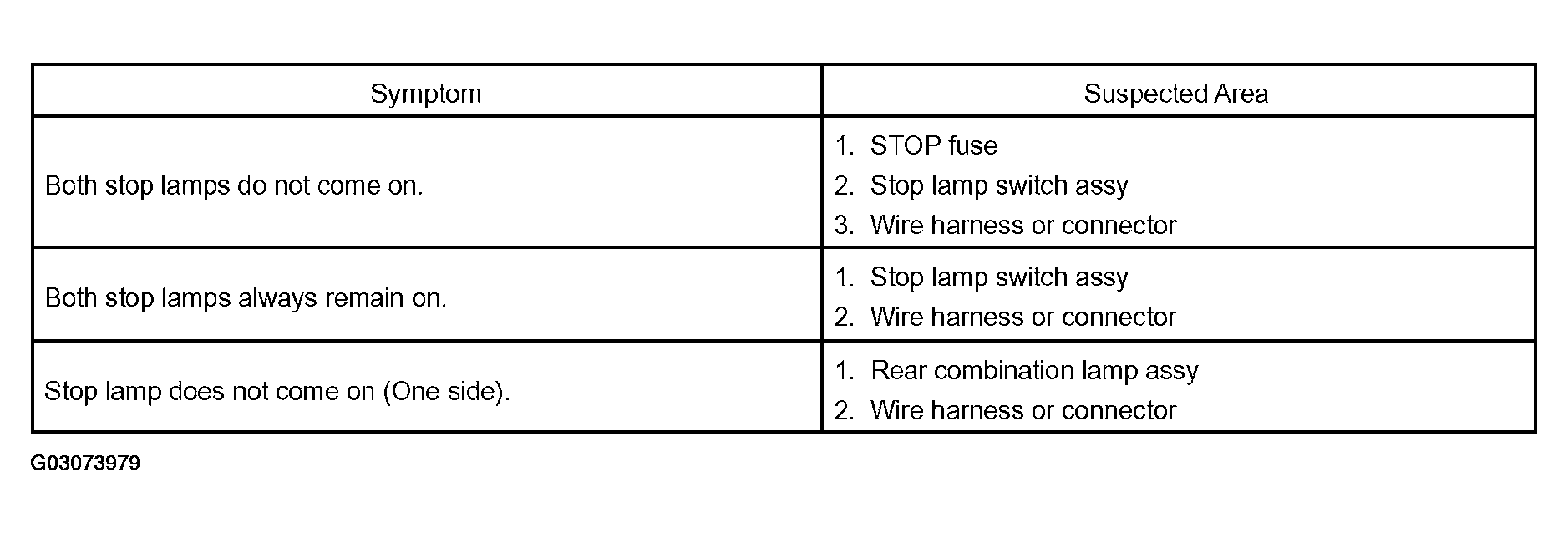

3. STOP LAMP SYSTEM
   Fig 3: Problem Symptoms Chart Stop Lamp System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

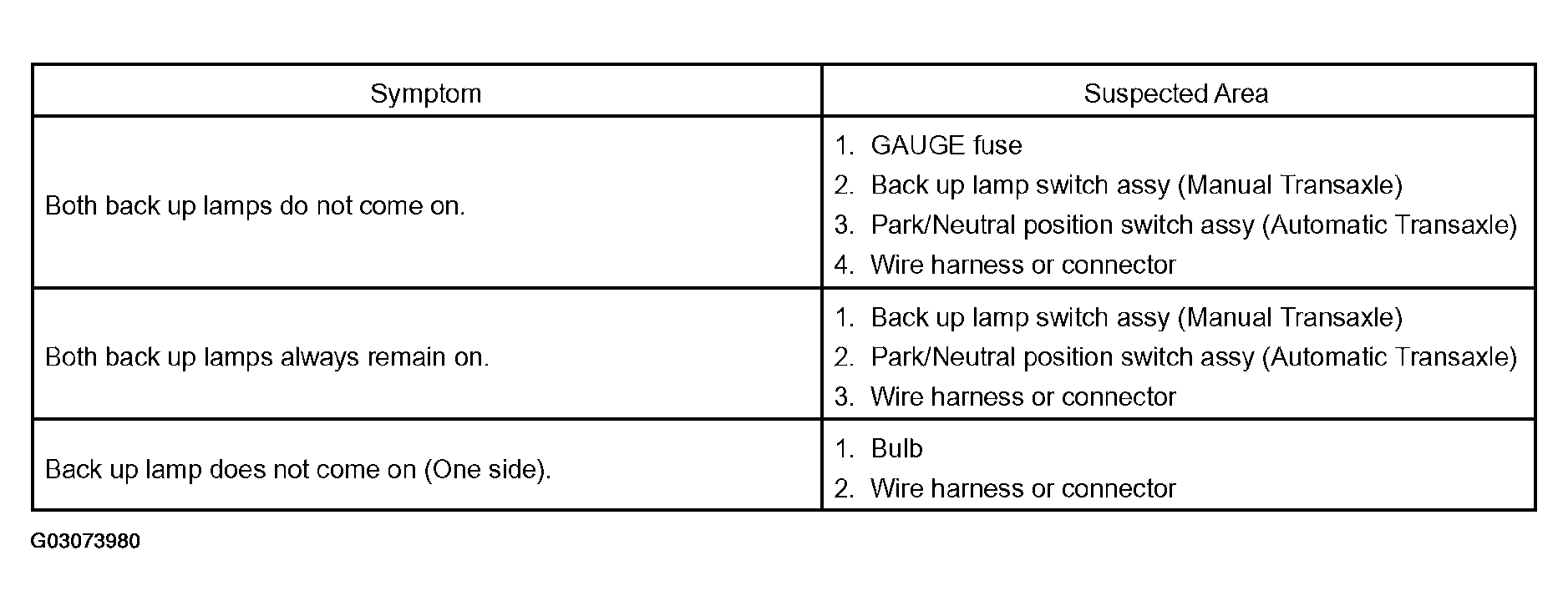

4. BACK UP LAMP SYSTEM
   Fig 4: Problem Symptoms Chart Back Up Lamp System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

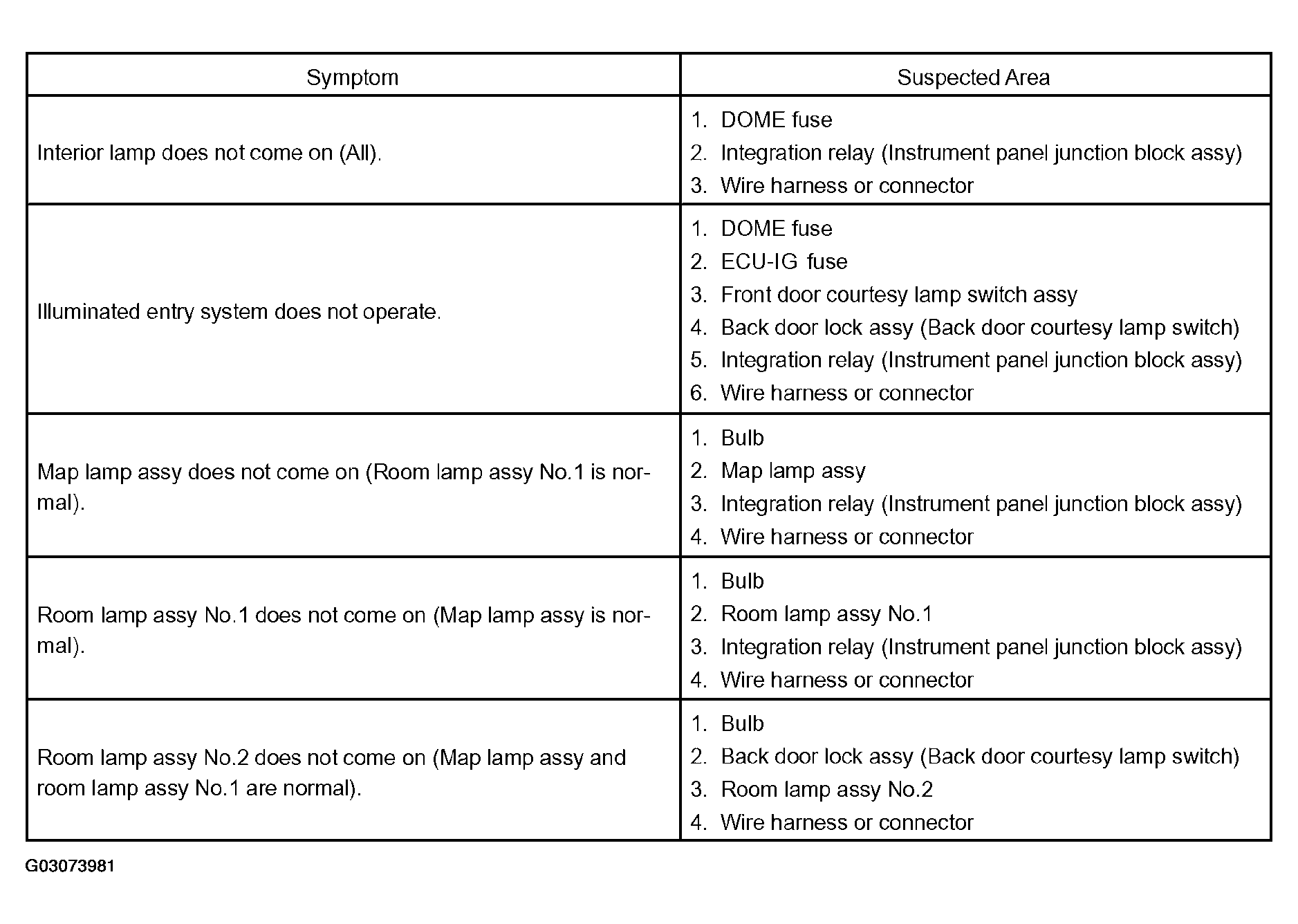

5. INTERIOR LAMP SYSTEM
   Fig 5: Problem Symptoms Chart Interior Lamp System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. ILLUMINATION SYSTEM
   Fig 6: Problem Symptoms Chart Illumination System

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
