Scion
›
2005
›
tC Standard
›
Repair and Diagnosis
›
Body & Frame
›
Mirrors
›
Wireless Door Lock Control System
›
Only Wireless Control Function Is Inoperative
›
Wiring Diagram

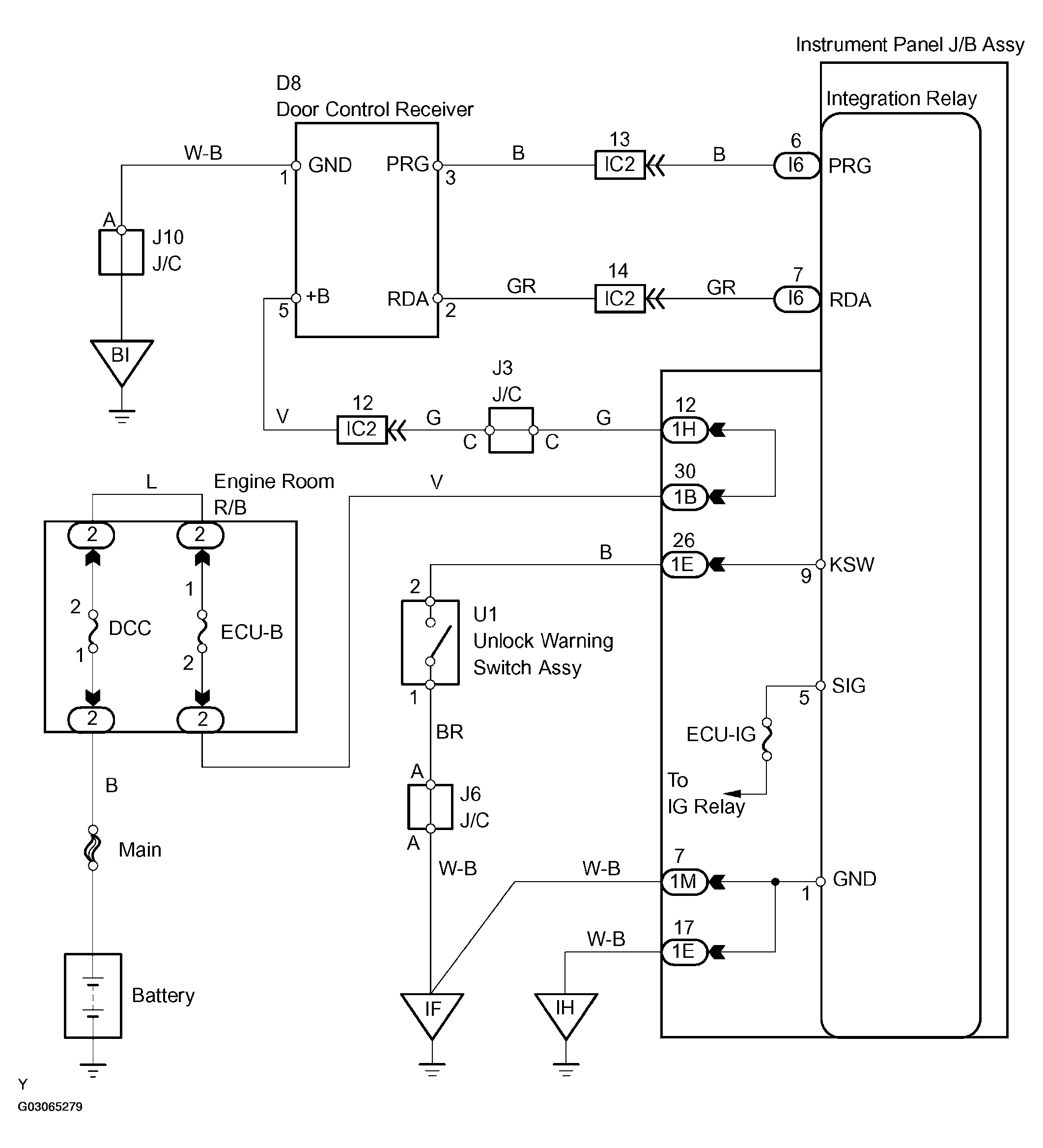

Only Wireless Control Function Is Inoperative: Wiring Diagram
Fig 1: Identifying Wireless Control Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
