Inspection Procedure

  1. INSPECT DLC3 TERMINAL VOLTAGE (TC TERMINAL)
    1. Turn the ignition switch to the ON position.
    2. Measure the voltage according to the value(s) in the table shown in DLC3 TERMINAL VOLTAGE (TC TERMINAL)  .

      STANDARD:

      DLC3 TERMINAL VOLTAGE (TC TERMINAL)

      Tester Connection Condition Specified Condition
      D4-13 (TC) - D4-4 (CG) IG switch ON 10 to 14 V
      Fig 1: Inspecting DLC3 Terminals Voltage (TC Terminal)
      G03065037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   3

    OK: Go to next step.

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value(s) in the table shown in SKID CONTROL ECU SPECIFIED CONDITIONS  .

      STANDARD:

      SKID CONTROL ECU SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      S1-16 (TC) - D4-13 (TC) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table shown in DLC3 SPECIFIED CONDITIONS  .

      STANDARD:

      DLC3 SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      S1-16 (TC) - Body ground 10 kΩ or higher
      Fig 2: Checking Harness And Connector (Skid Control ECU - DLC3)
      G03065038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TC CIRCUIT)

    OK: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )

  3. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table shown in DLC3 - BODY GROUND SPECIFIED CONDITIONS  .

      STANDARD:

      DLC3 - BODY GROUND SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      D4-4 (CG) - Body ground Below 1 Ω
      Fig 3: Checking Harness And Connector (DLC3 - Body Ground)
      G03065039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

    OK: Go to next step.

  4. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value(s) in the table shown in SKID CONTROL ECU CONNECTOR SPECIFIED CONDITIONS  .

      STANDARD:

      SKID CONTROL ECU CONNECTOR SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      S1-16 (TC) - D4-13 (TC) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table shown in DLC3 SPECIFIED CONDITIONS  .

      STANDARD:

      DLC3 SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      S1-16 (TC) - Body ground 10 kΩ or higher

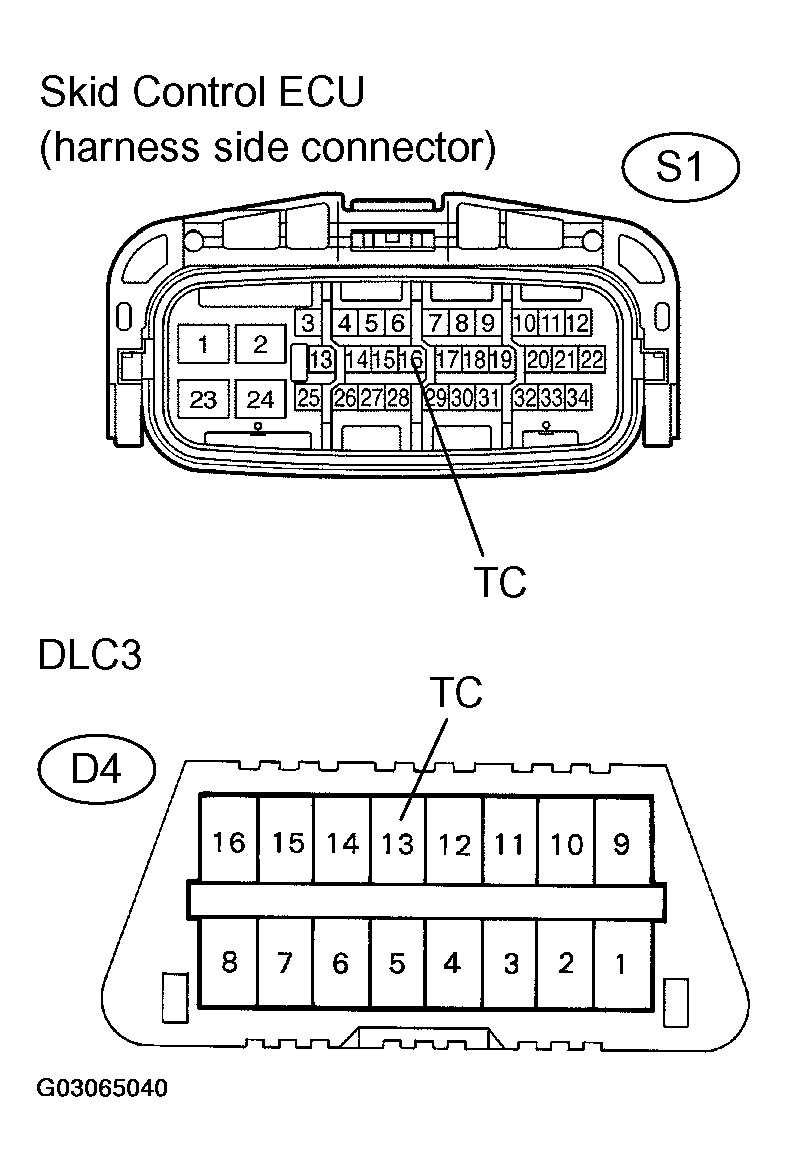

      Fig 4: Checking Harness And Connector (Skid Control ECU - DLC3)
      G03065040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (TC CIRCUIT)

    OK: REPLACE BRAKE ACTUATOR ASSY (SEE  REPLACEMENT  )
