Starting System & Charging System - Service Specifications
›
Starting System & Charging System
›
Torque Specifications
Torque Specifications
2AZ-FE:

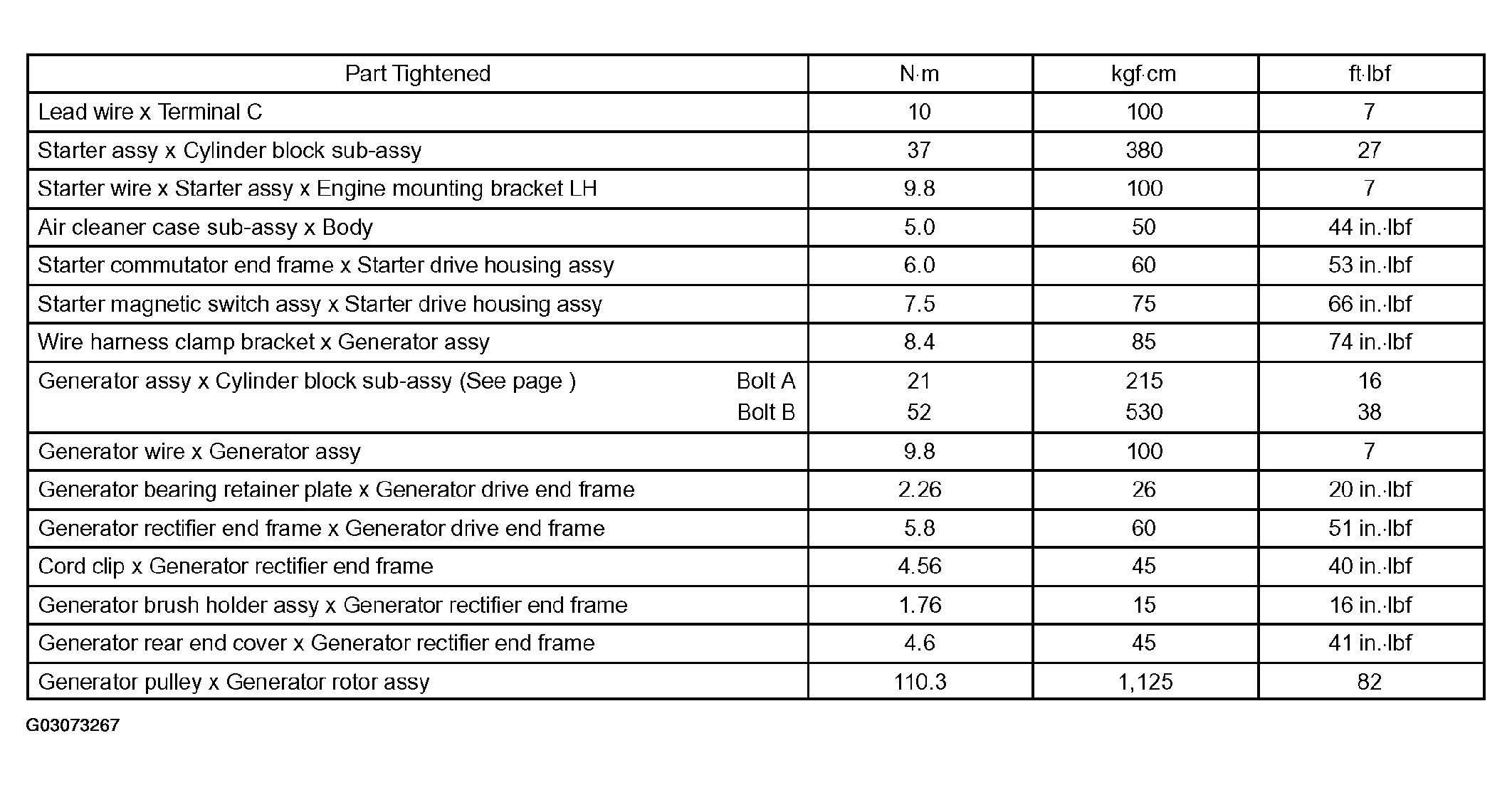

Fig 1: Starting System Torque Specifications (2AZ-FE) Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
