Throttle Body ASSY (2AZ-FE): Components

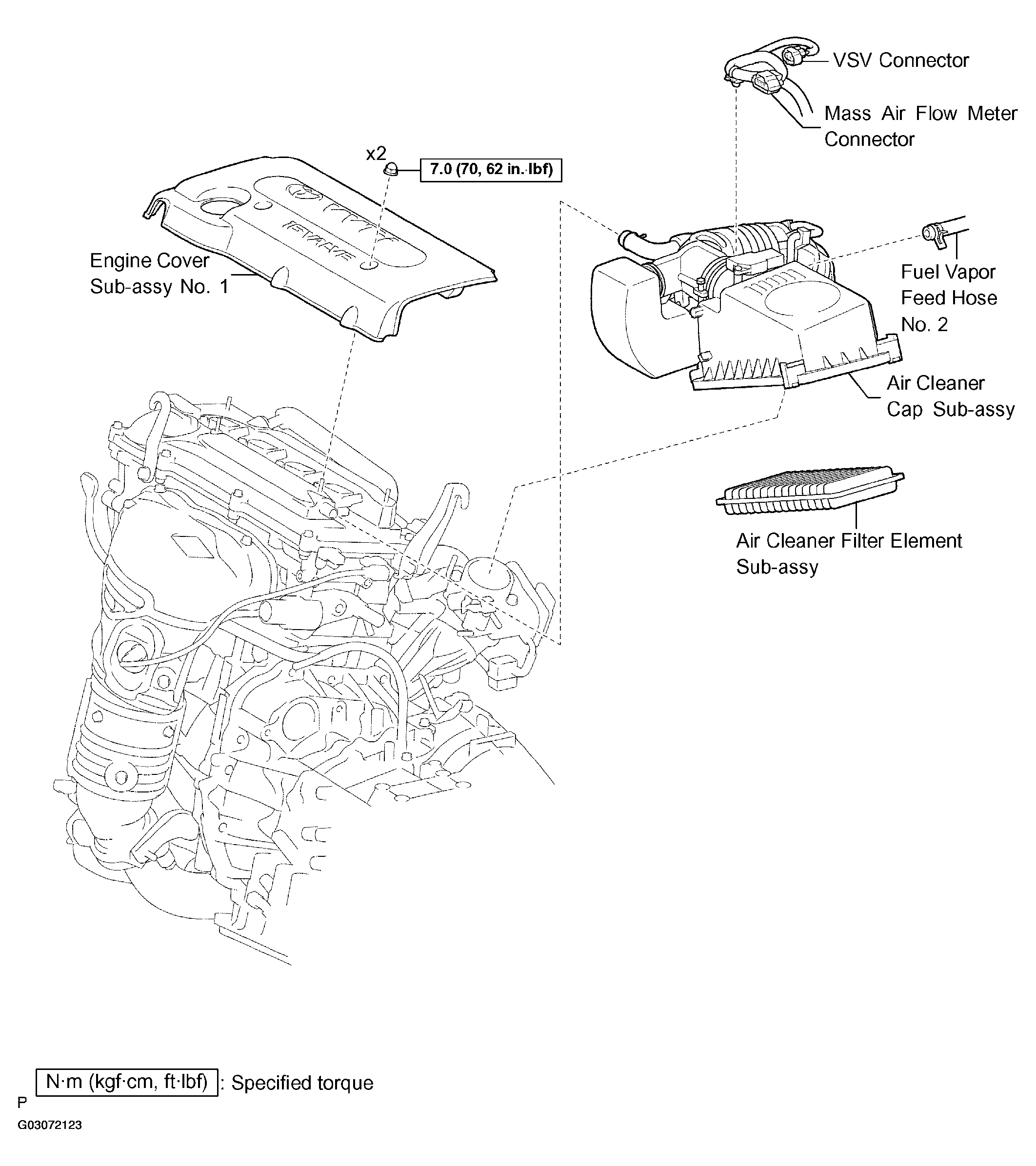

Fig 1: Identifying Throttle Body Assy (2AZ-FE) Components (1 Of 2)
G03072123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

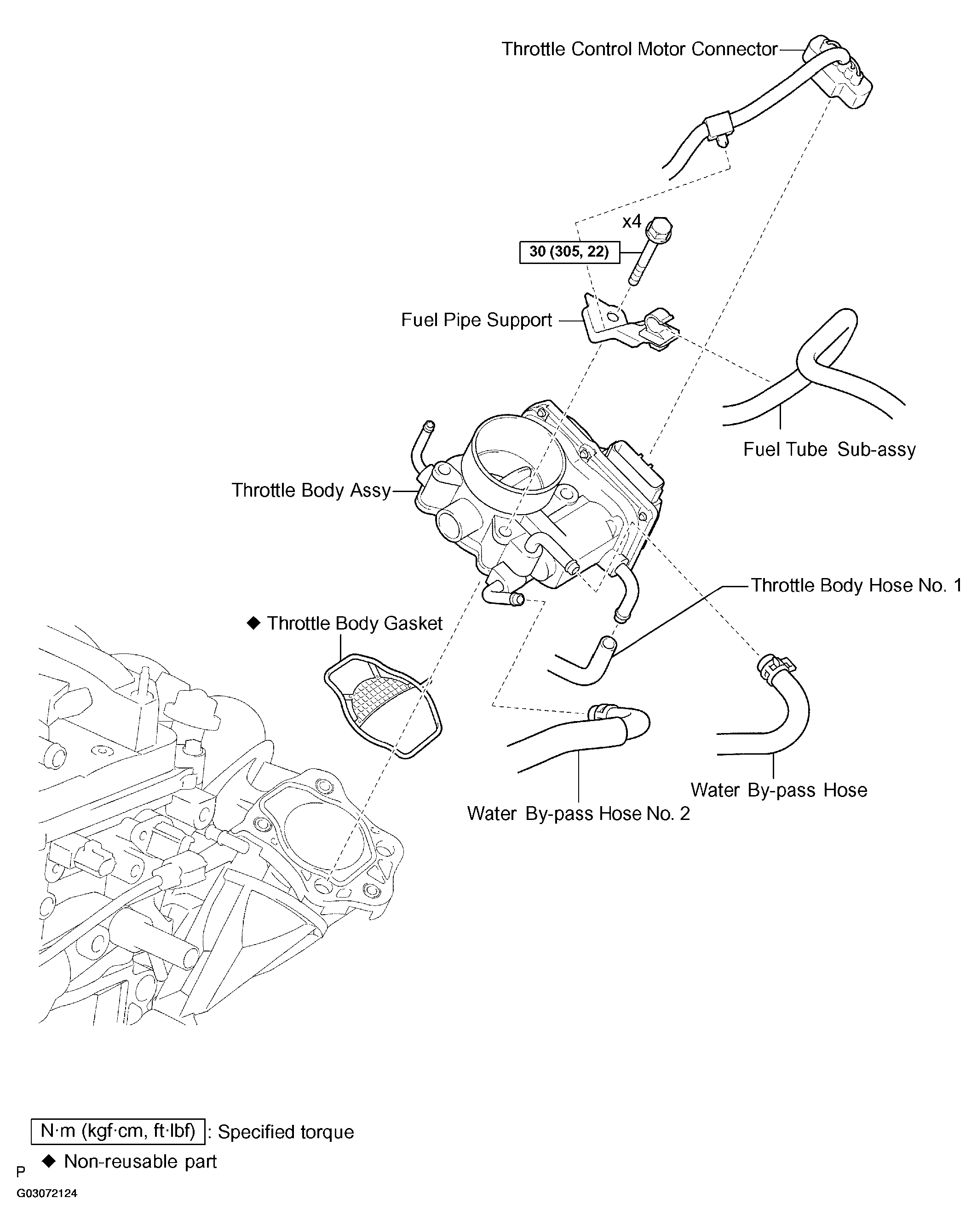

Fig 2: Identifying Throttle Body Assy (2AZ-FE) Components (2 Of 2)
G03072124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
