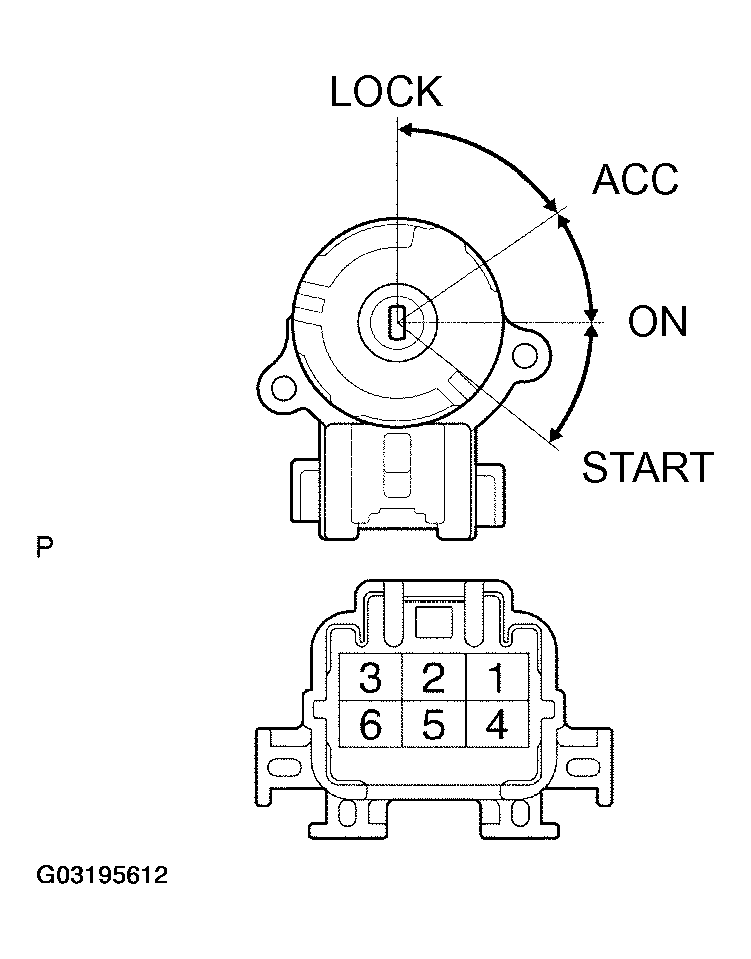

Check the switch resistance.Standard:
SWITCH CONDITION
| Tester Connection |
Switch Condition |
Specified Condition |
| 1 - 3 |
ACC |
Below 1 Ω |
| 1 - 2 |
ON |
| 1 - 3 |
| 5 - 6 |
| 1 - 2 |
START |
| 4 - 5 |
| 5 - 6 |
If the result is not as specified, replace the switch assy.
