Quarter Window ASSY RH: Components

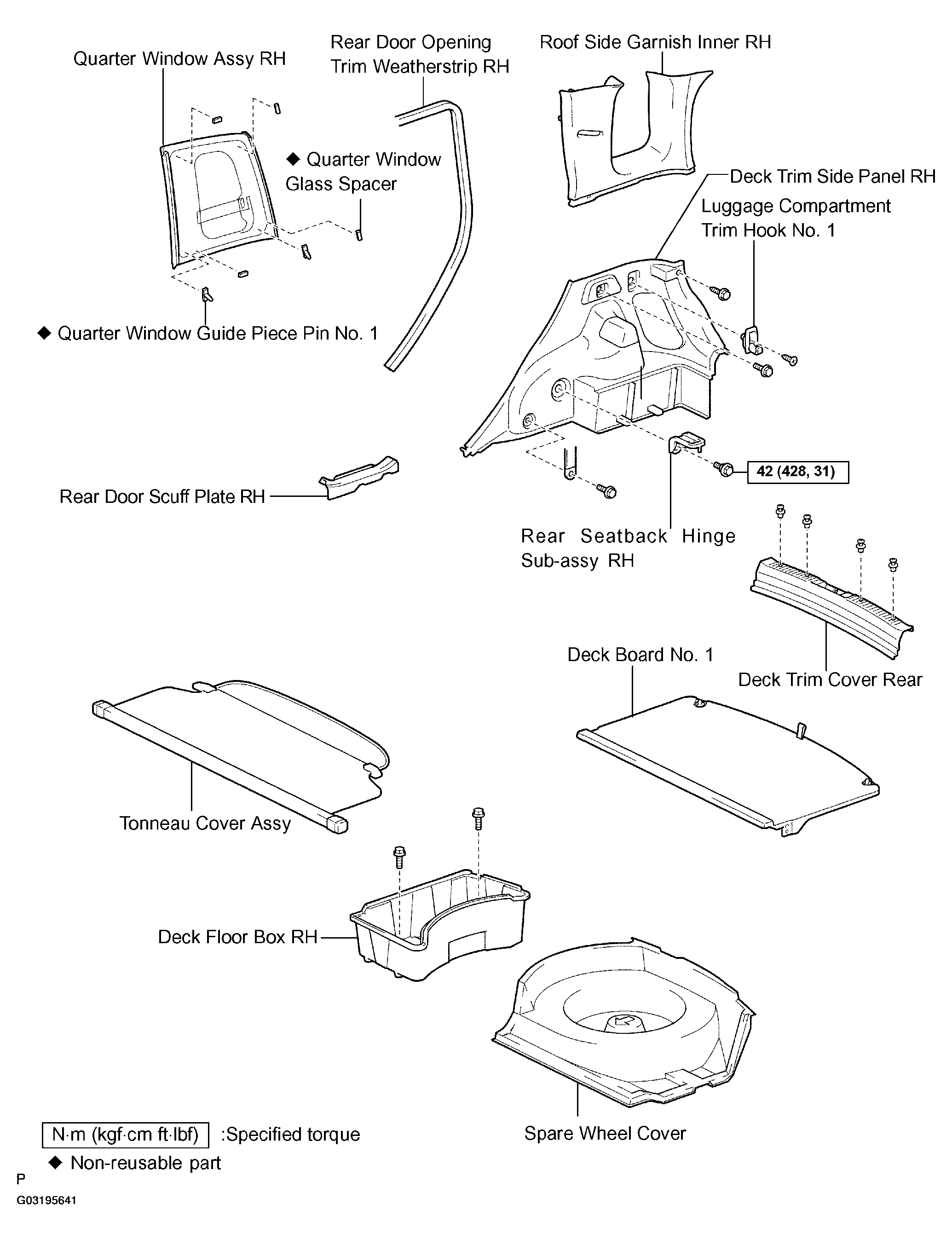

Fig 1: Identifying Quarter Window Assy RH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
