Instrument/Panel Sub-ASSY: Replacement

HINT:

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated below and coded alphabetically.

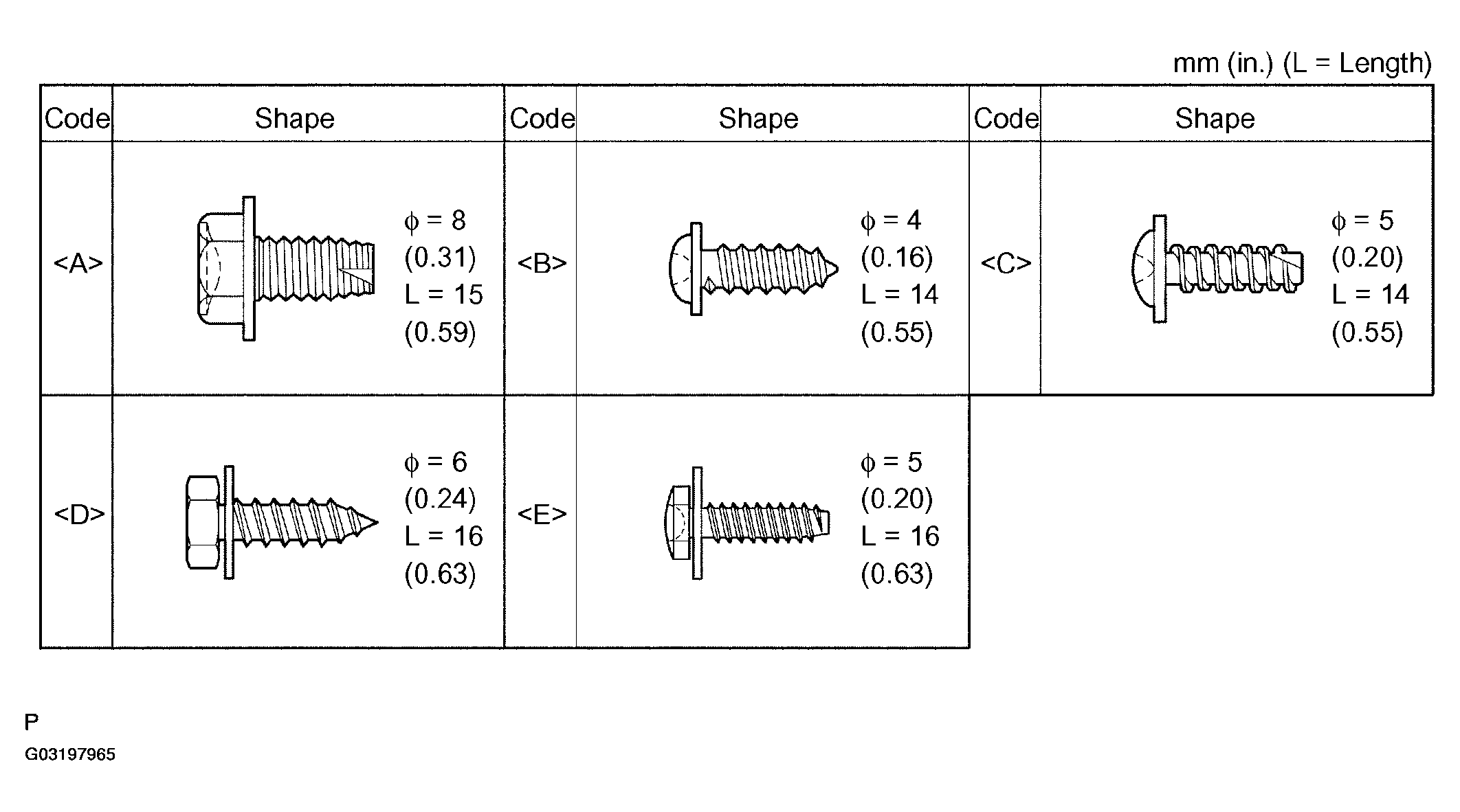

    Fig 1: Bolt, Screw & Nut Specification Table
    G03197965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
  3. REMOVE FRONT PILLAR GARNISH LH
    1. Disengage the 2 clips, and remove the front pillar garnish LH.

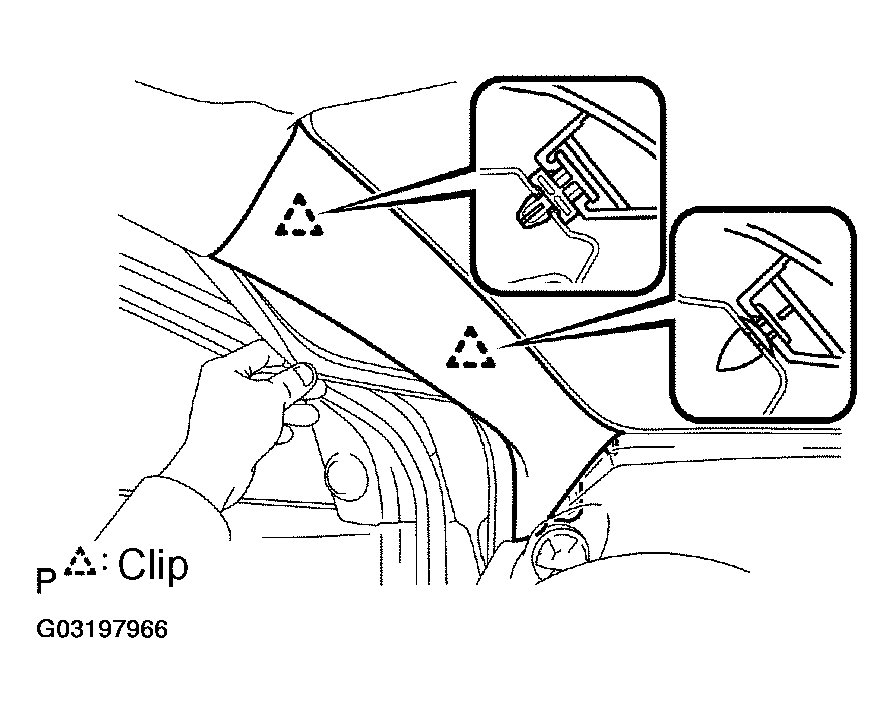

      Fig 2: Disengaging Clips
      G03197966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and LH side.

  5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
    1. Disengage the 2 clips and the claw, and remove the instrument panel finish lower panel LH.

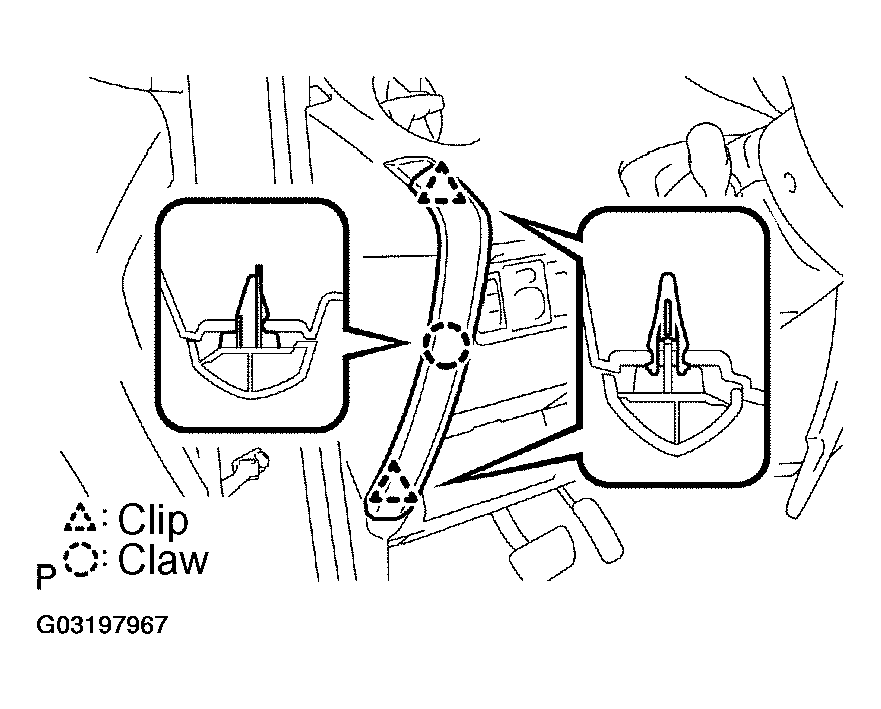

      Fig 3: Disengaging Clips & Claw
      G03197967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH

    HINT:

    Use the same procedures for the RH side and LH side.

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL
    1. Remove the 2 clips.
    2. Disengage the 6 claws, and remove the instrument cluster finish panel.

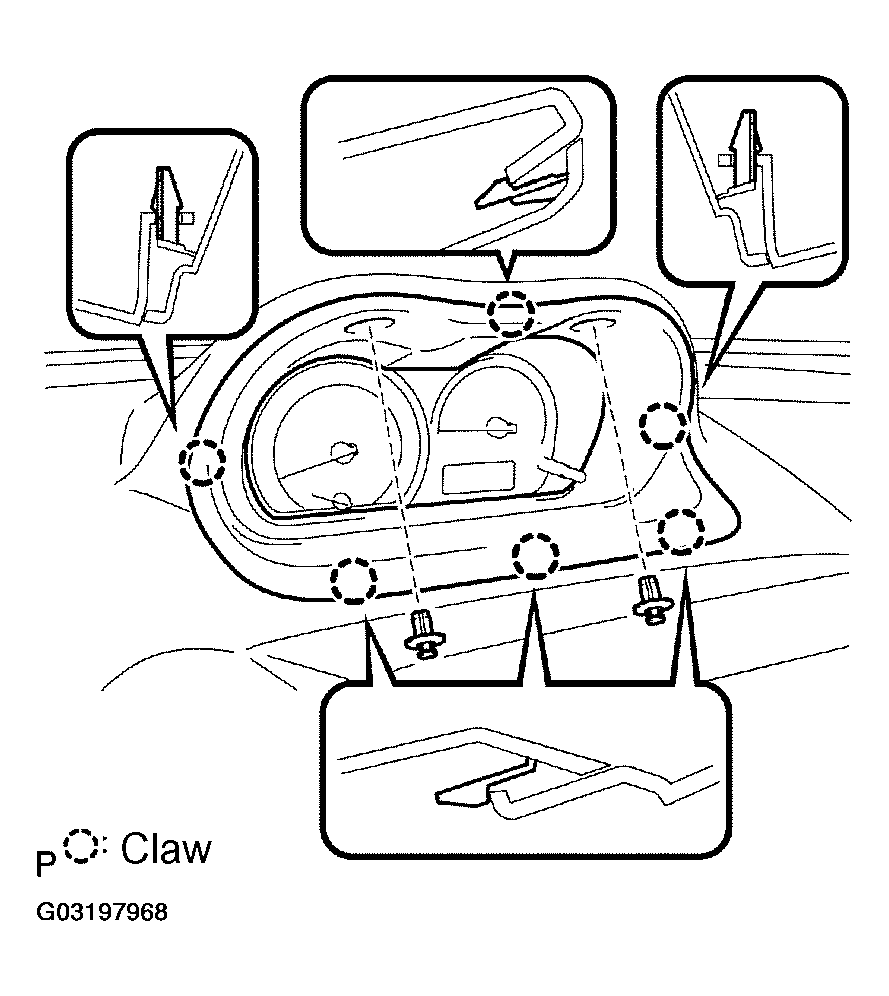

      Fig 4: Removing Instrument Cluster Finish Panel By Disengaging Claws
      G03197968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COMBINATION METER ASSY
    1. Remove the 3 screws < E >.
    2. Disconnect the connectors, and remove the combination meter assy.

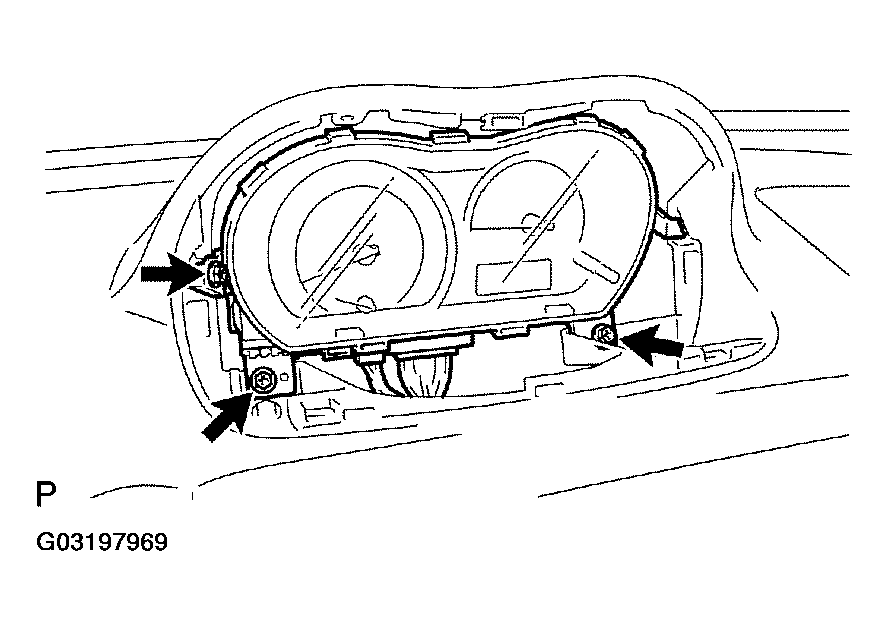

      Fig 5: Removing Combination Meter Assembly
      G03197969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
    1. Disengage the 2 clips and the 2 claws, and remove the instrument cluster finish panel garnish No.2.

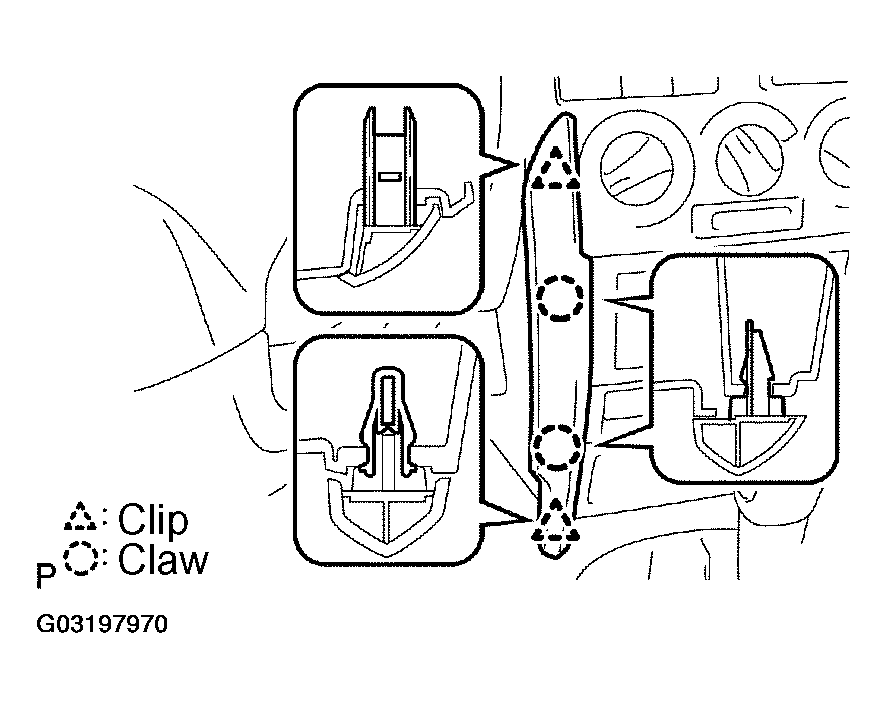

      Fig 6: Removing Instrument Cluster Finish Panel Garnish
      G03197970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1
  11. REMOVE HEATER CONTROL KNOB
    1. Remove the 3 heater control knobs.

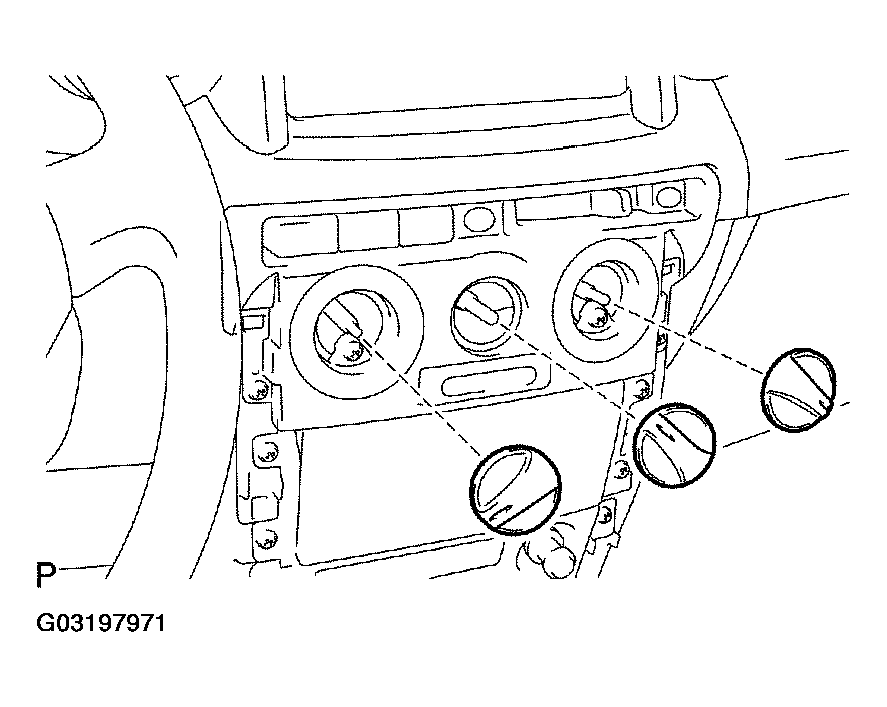

      Fig 7: Removing Heater Control Knob
      G03197971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR
    1. Remove the 4 screws.
    2. Disengage the 4 clips and the claw, and remove the instrument cluster finish panel sub-assy CTR.
    3. Disconnect the connectors.

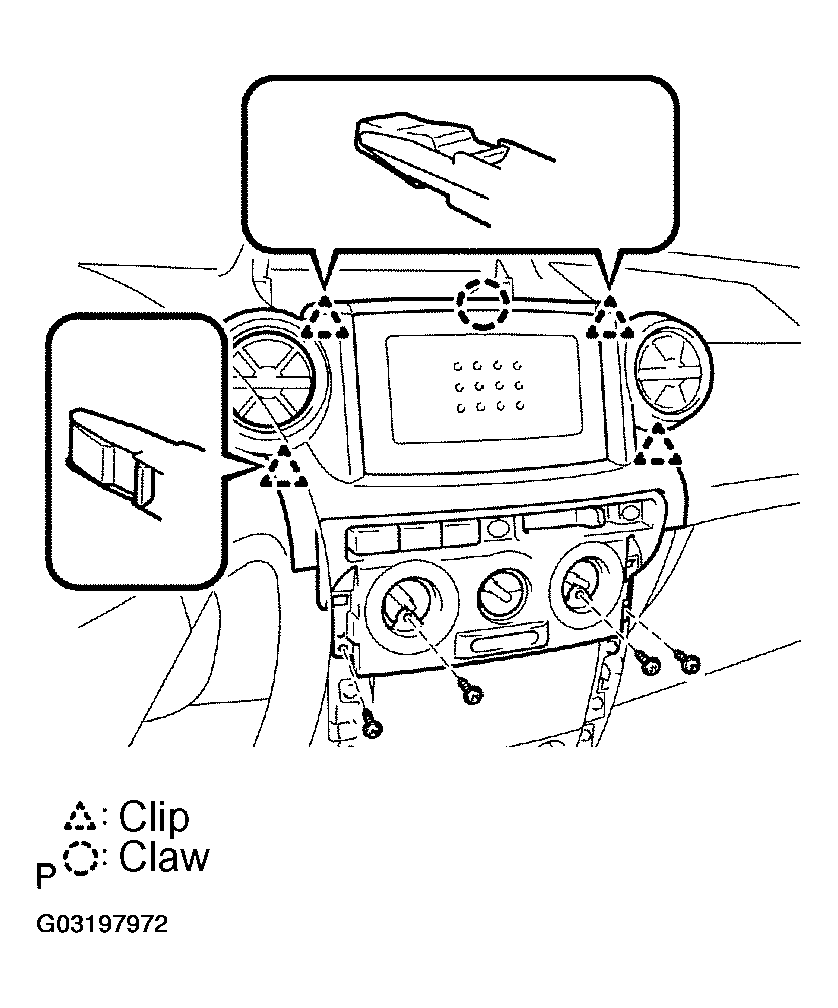

      Fig 8: Removing Instrument Cluster Finish Panel Sub-Assembly CTR
      G03197972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE STEREO OPENING COVER W/BRACKET (W/O RADIO)
    1. Remove the 4 screws and the radio bracket No.1 & No.2.

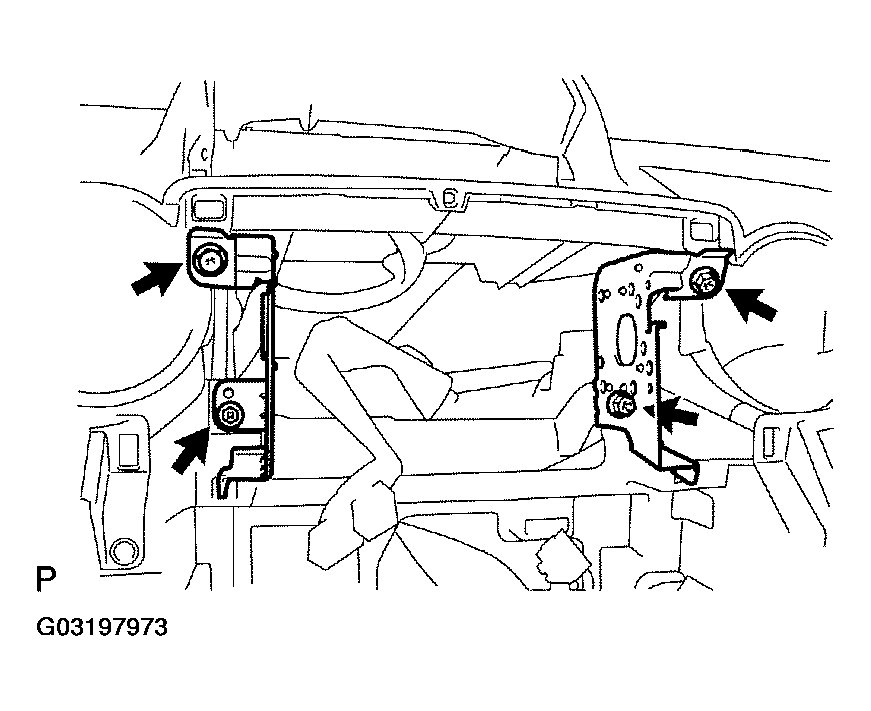

      Fig 9: Removing Screws & Radio Bracket
      G03197973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIO RECEIVER ASSY W/BRACKET (W/ RADIO) (SEE  REPLACEMENT  )
  15. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Push in the sides of the upper part of the glove compartment door assy to release the stoppers.
    2. Pull the glove compartment door assy and remove it.

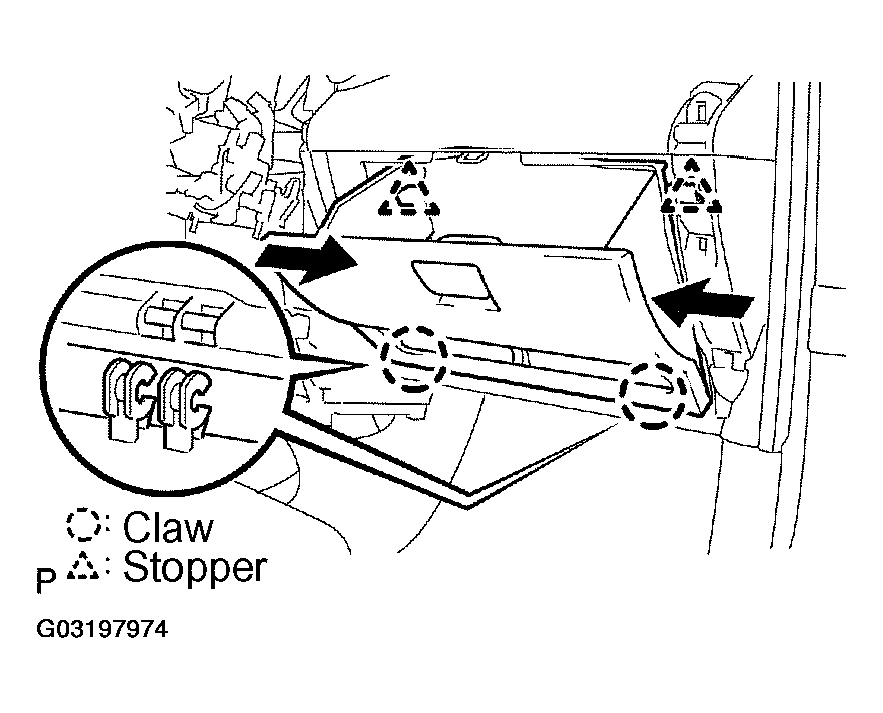

      Fig 10: Removing Glove Compartment Door Assembly
      G03197974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT PASSENGER AIRBAG CONNECTOR
  17. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Remove the 4 screws < C >, < D > or < E >and the bolt < A >.
    2. Disengage the 3 clips and the 9 claws.
    3. Disconnect the connectors.
    4. Pull the instrument panel sub-assy w/ passenger airbag assy and remove it.

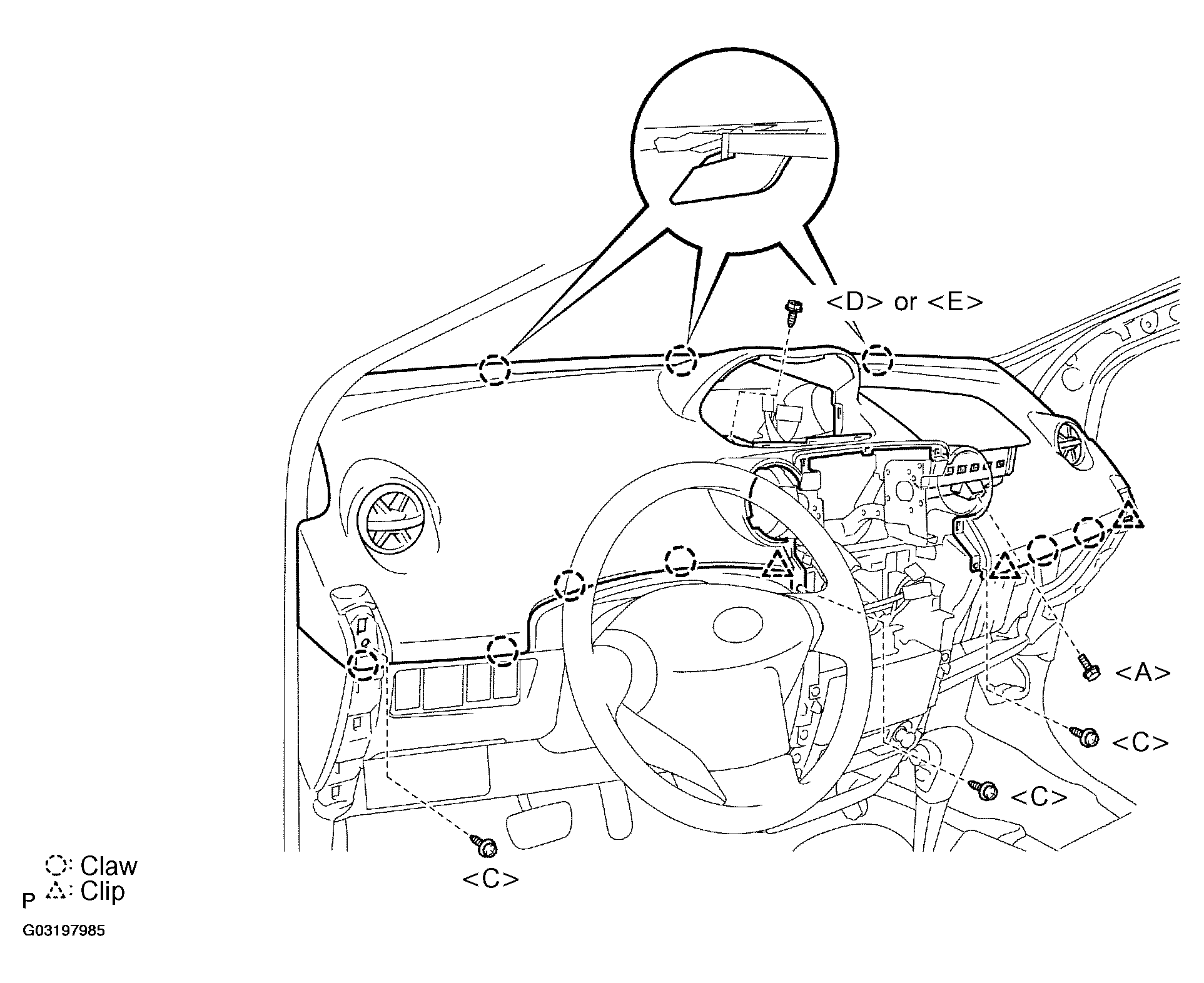

      Fig 11: Disconnecting Passenger Airbag Connector
      G03197975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE INSTRUMENT PANEL PASSENGER AIR BAG ASSY (SEE  REPLACEMENT  )
  19. REMOVE HEATER TO REGISTER DUCT NO.1
    1. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the heater to register duct No.1 from the instrument panel sub-assy.

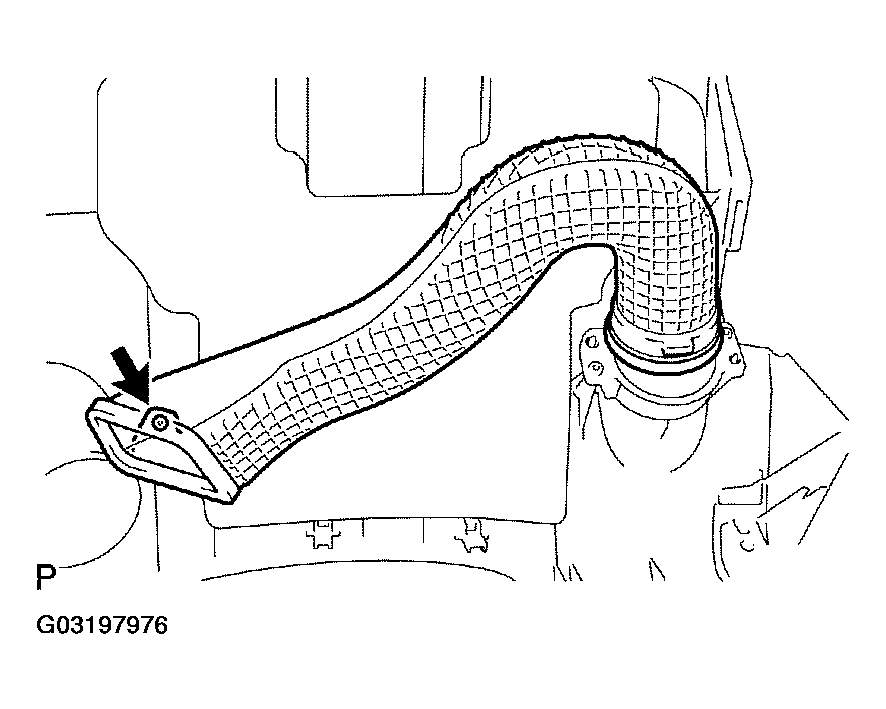

      Fig 12: Identifying Ultrasonic Welding Portion
      G03197976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 13: Removing Heater To Register Duct From Instrument Panel Sub-Assembly
      G03197977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE HEATER TO REGISTER DUCT NO.3
  21. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
    1. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the instrument panel register assy No.1 from the instrument panel sub-assy.
      Fig 14: Identifying Instrument Panel Register Assembly Bolts
      G03197978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 15: Removing Instrument Panel Register Assembly From Instrument Panel Sub-Assembly
      G03197979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE INSTRUMENT PANEL CUSHION NO.1
    1. Remove the instrument panel cushion No.1 from the instrument panel sub-assy.
      Fig 16: Removing Instrument Panel Cushion From Instrument Panel Sub-Assembly
      G03197980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INSTRUMENT PANEL SUB-ASSY
  24. INSTALL INSTRUMENT PANEL REGISTER ASSY NO.1
    1. When replacing the instrument panel sub-assy with a new one, cut the boss off using nippers, etc. as shown in the illustration.
      NOTE: When reusing the instrument panel sub-assy, start from step (b).
      Fig 17: Cutting Boss off Using Nippers
      G03197981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screw, install the instrument panel register assy No.1 to the instrument panel sub-assy.
      Fig 18: Installing Instrument Panel Register Assembly To Instrument Panel Sub-Assembly
      G03197982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL HEATER TO REGISTER DUCT NO.1
    1. When replacing the instrument panel sub-assy with a new one, cut the boss off using nippers, etc. as shown in the illustration.
      NOTE: When reusing the instrument panel sub-assy, start from step (b).
      Fig 19: Cutting Boss Off Using Nippers
      G03197983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screw, install the heater to register duct No.1 to the instrument panel sub-assy.
      Fig 20: Installing Heater To Register Duct To Instrument Panel Sub-Assembly
      G03197984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL HEATER TO REGISTER DUCT NO.3
  27. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Using a torque wrench, install the instrument panel sub-assy w/ passenger airbag assy with bolt < A >.

      Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

      Fig 21: Installing Heater To Register Duct
      G03197985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
