Fuel Injector ASSY: Components

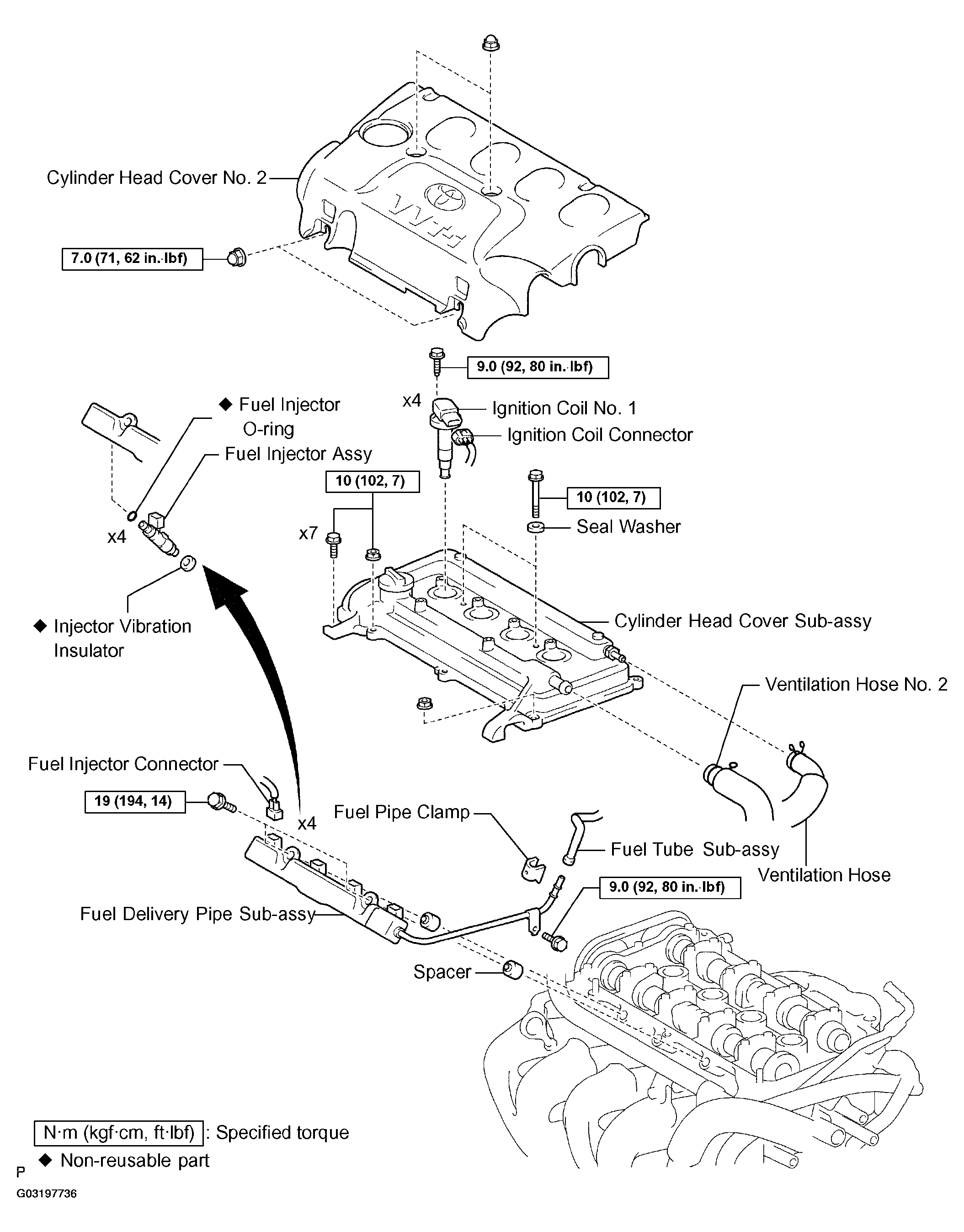

Fig 1: Exploded View Of Fuel Injector Assy

G03197736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
