Throttle Body ASSY: Components

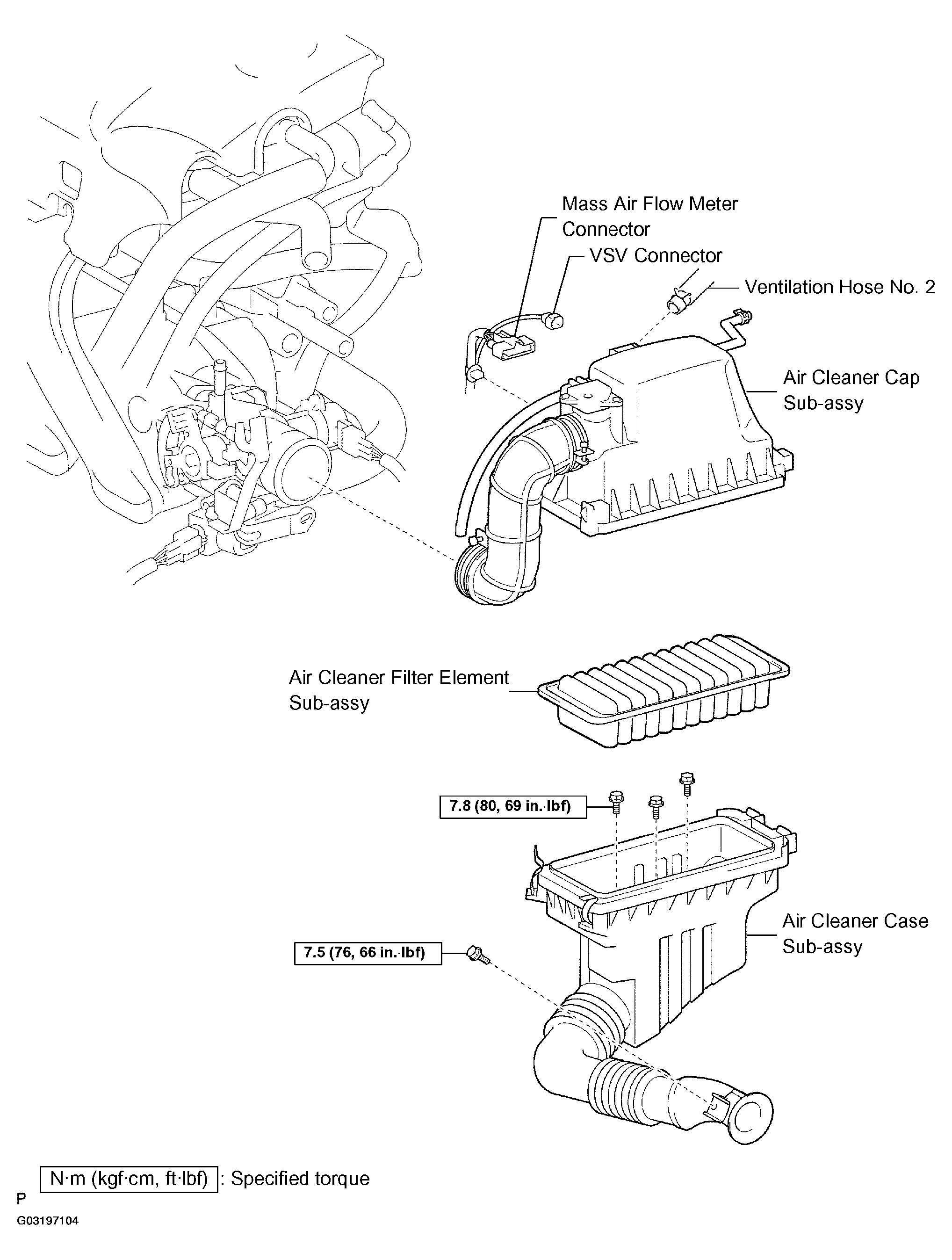

Fig 1: Exploded View Of Throttle Body Assy (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

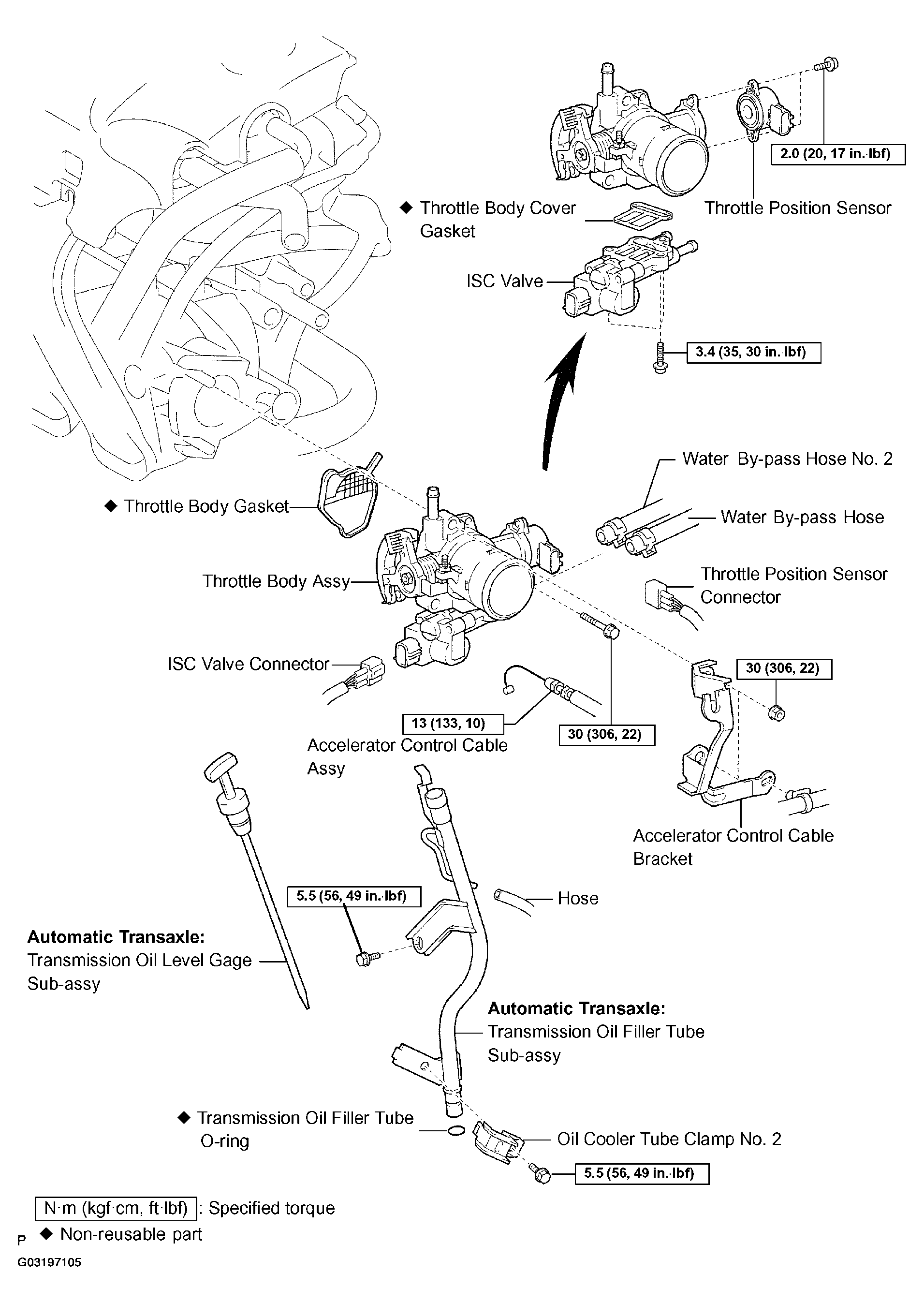

Fig 2: Exploded View Of Throttle Body Assy (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
