Automatic Revolution Sensor (ATM): Replacement

REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER BRACKET
1. Disconnect wire harness clamp.
2. Remove the 2 bolts and air cleaner bracket.

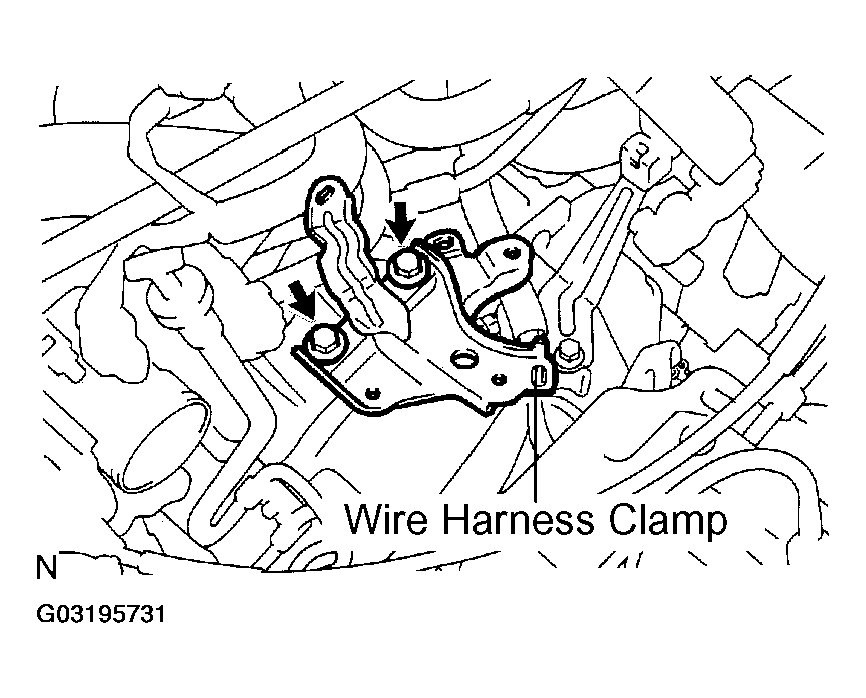

  Fig 1: Removing Bolts & Air Cleaner Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR
1. Disconnect the connector.
2. Remove the bolt and transmission revolution sensor.

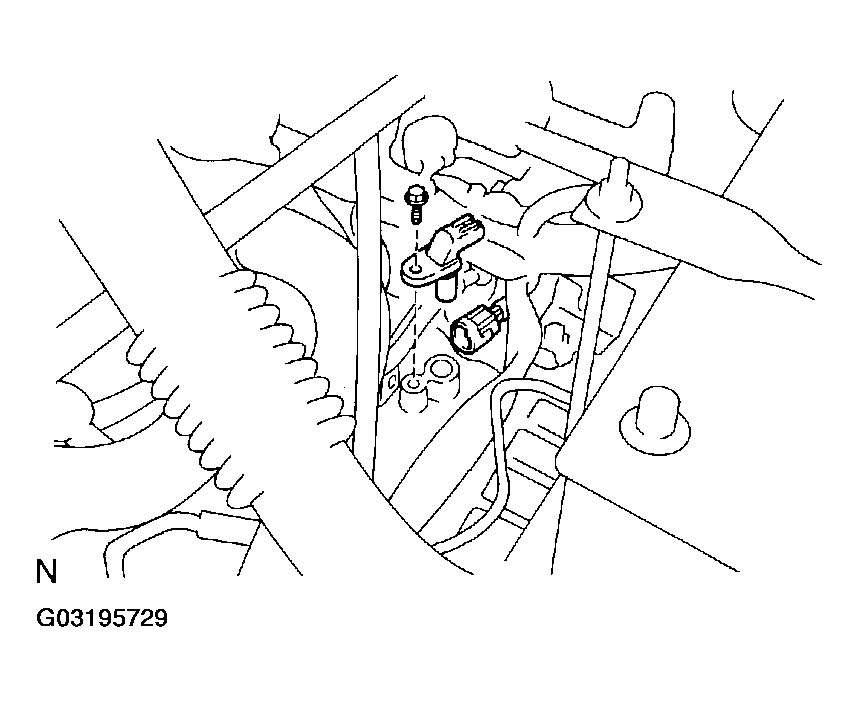

  Fig 2: Removing Bolt & Transmission Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR
1. Coat the O-ring with ATF.
2. Install the transmission revolution sensor with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the connector.

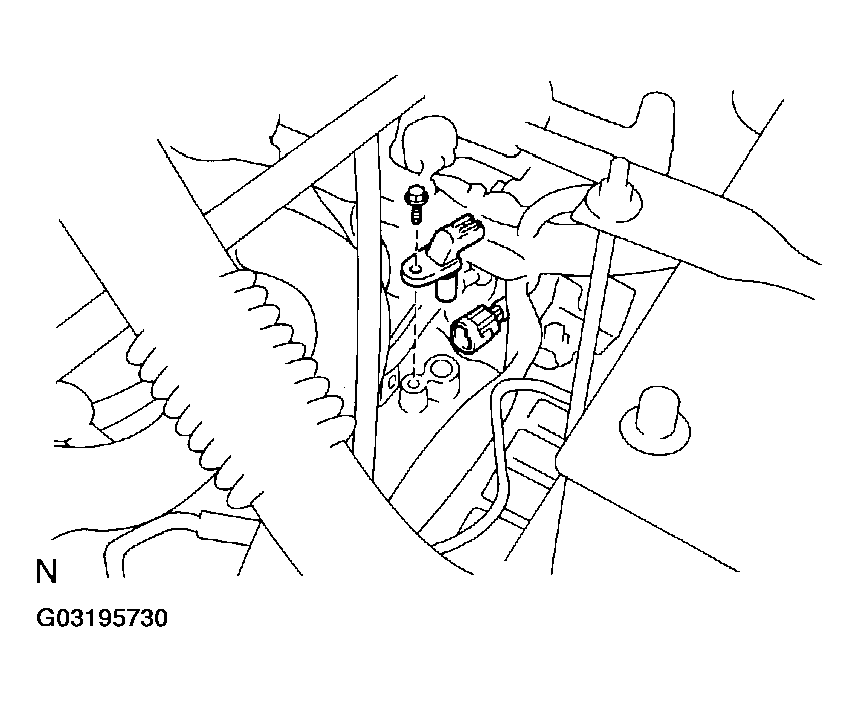

  Fig 3: Installing Transmission Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER BRACKET
1. Install the air cleaner bracket with the 2 bolts.
  Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
2. Connect the wire harness clamp to the air cleaner bracket.

  Fig 4: Installing Air Cleaner Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSY
