Automatic Transaxle ASSY (ATM): Components

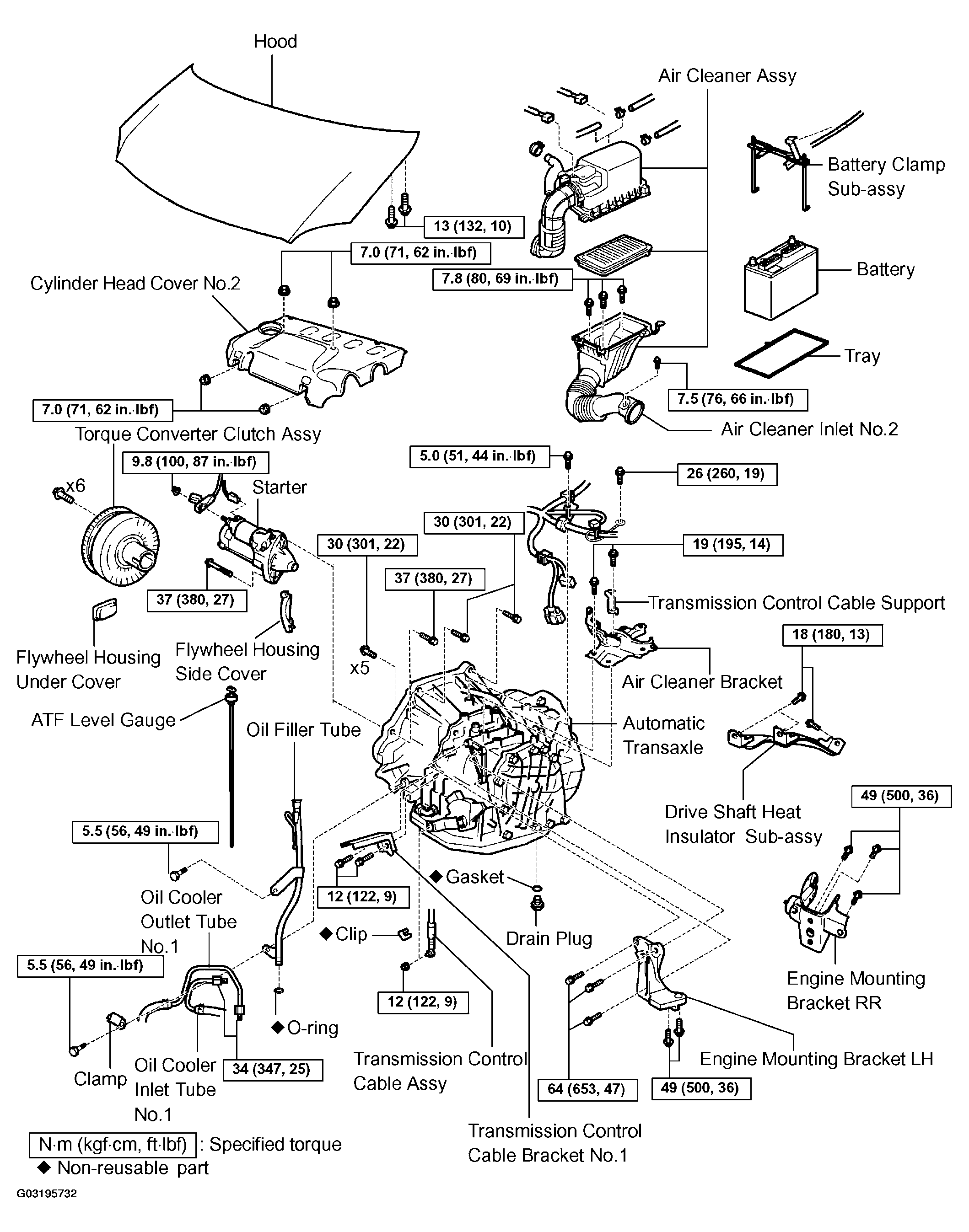

Fig 1: Identifying Automatic Transaxle Assy (ATM) Component (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

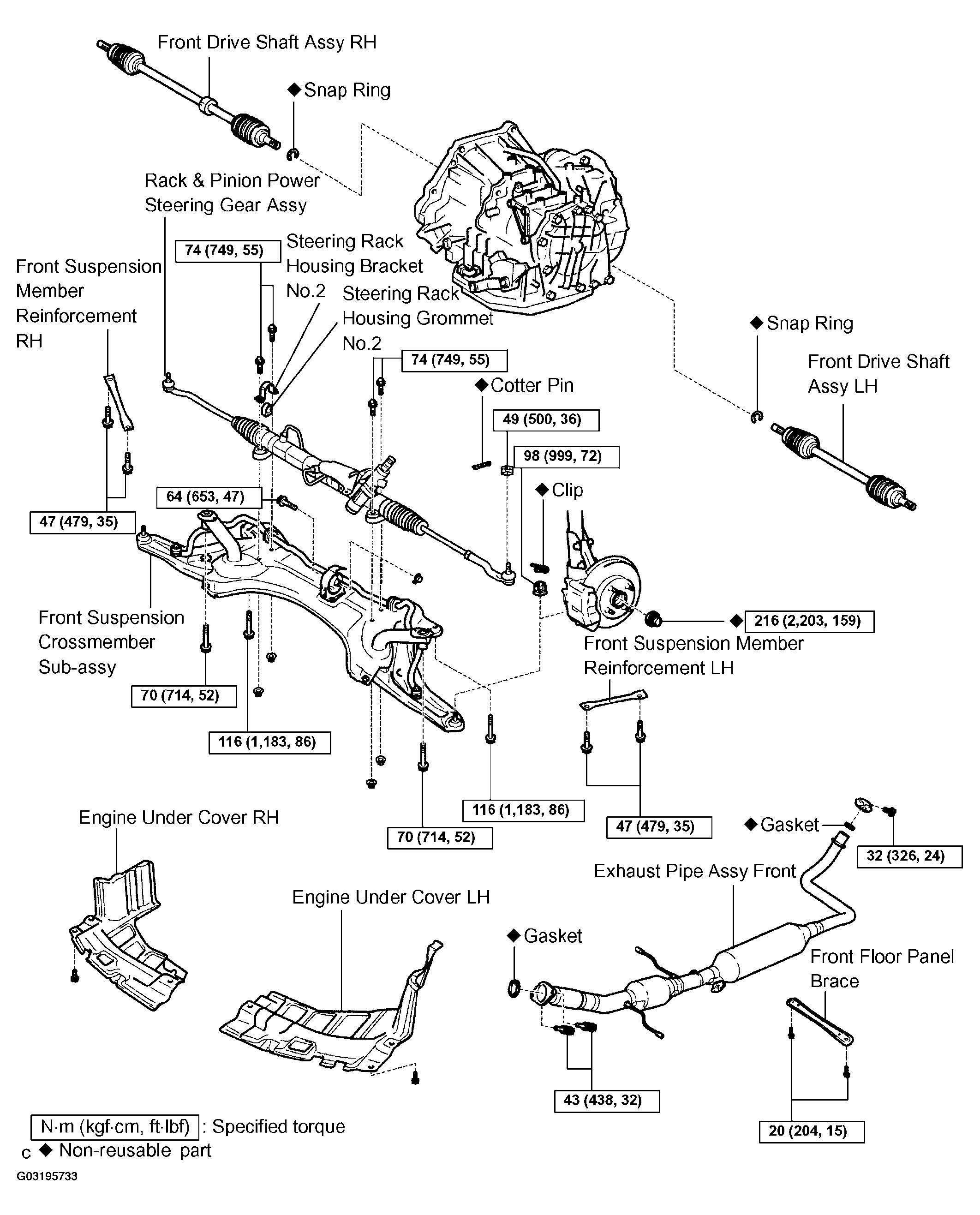

Fig 2: Identifying Automatic Transaxle Assy (ATM) Component (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
