Electronic Controlled Automatic Transaxle (ECT): Location

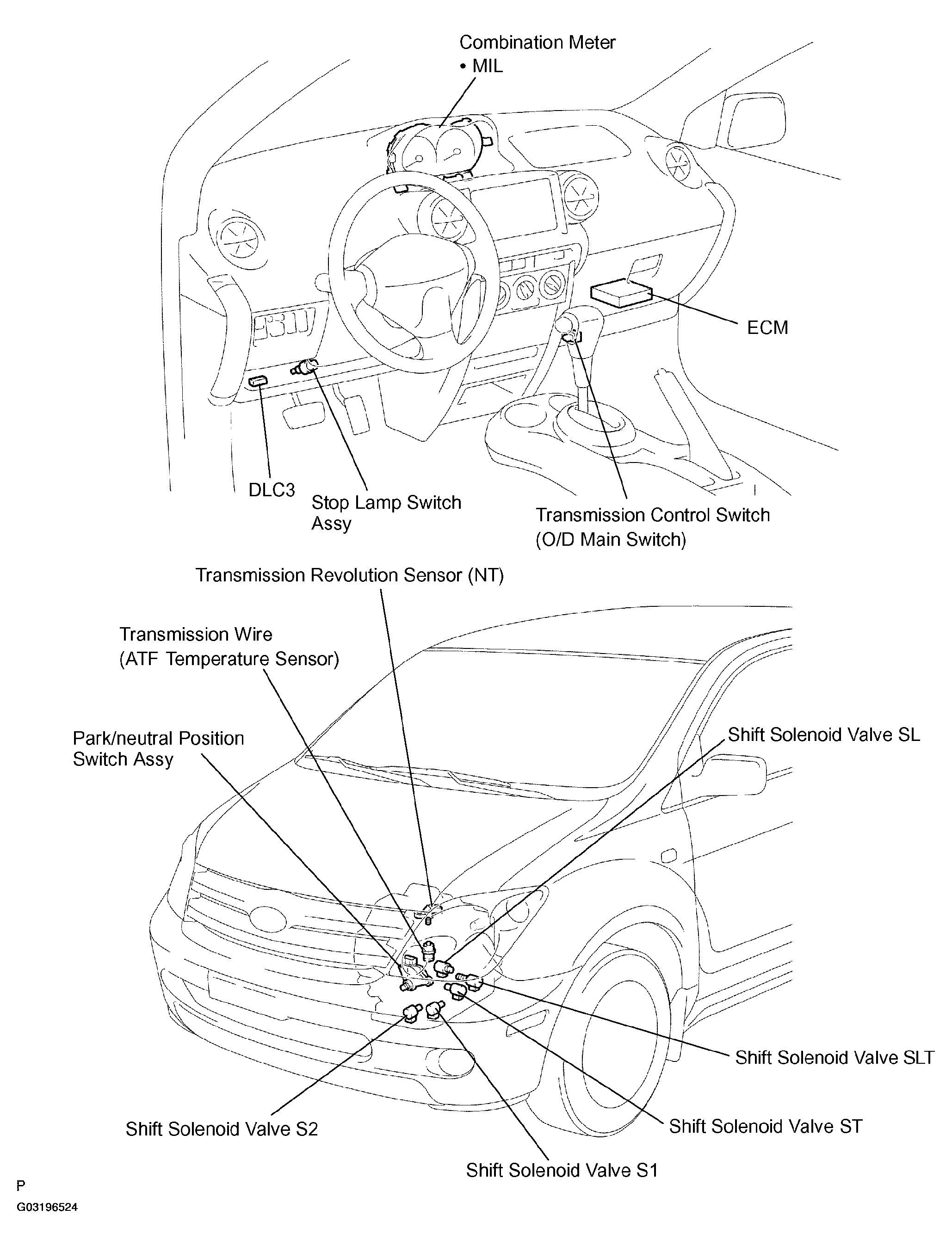

Fig 1: Identifying Electronic Controlled Component
G03196524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
