Audio & Visual System: Inspection

  1. FRONT NO.1 SPEAKER ASSY
    1. Inspect front No.1 speaker assy continuity.
      1. Measure the resistance according to the value(s) in the table below.

        Standard

        TESTER CONNECTION CONDITION AND SPECIFICATION

        Tester connection Condition Specification
        1 - 2 Always 4 Ω

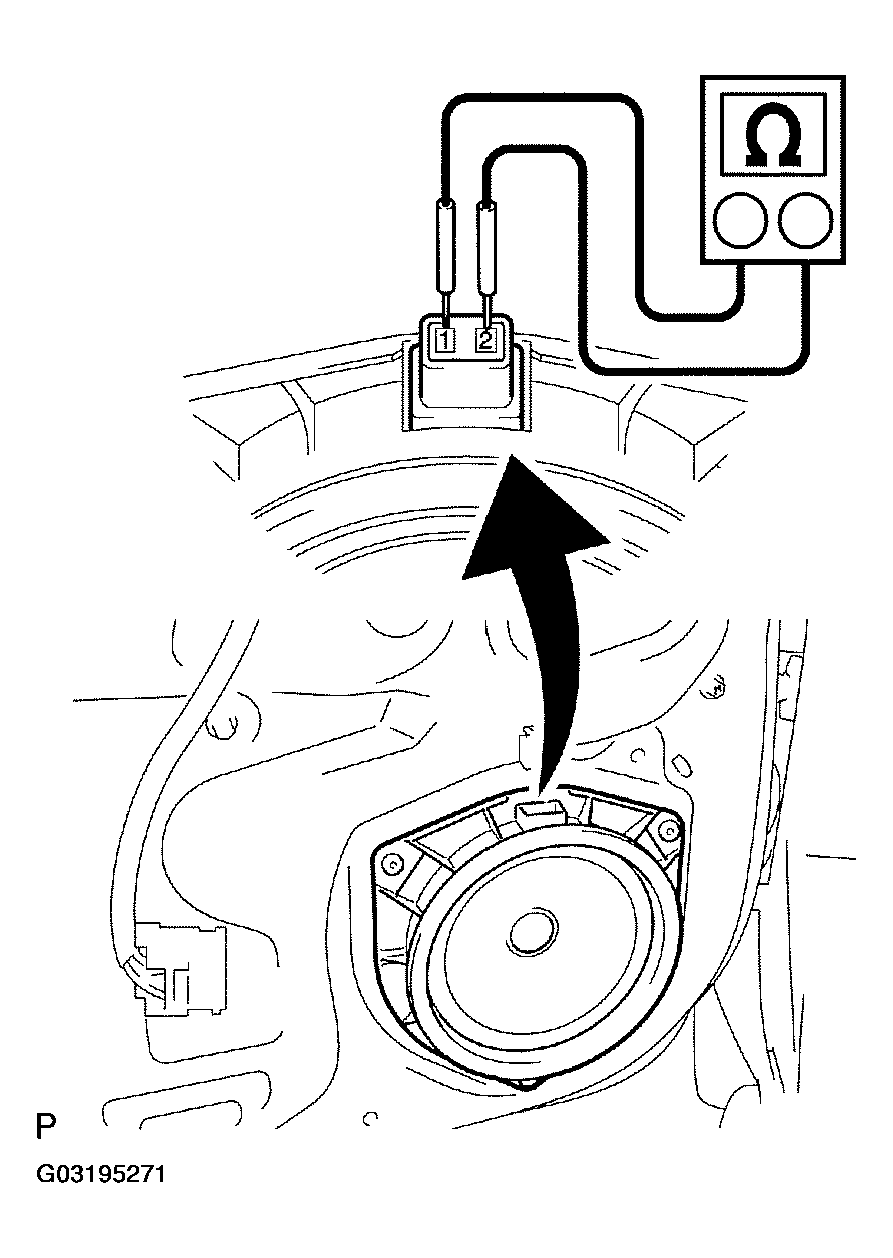

        Fig 1: Measuring Front No.1 Speaker Assy Continuity
        G03195271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FRONT NO.2 SPEAKER ASSY
    1. Inspect front No.2 speaker assy continuity.
      1. Measure the resistance according to the value(s) in the table below.

        Standard:

        TESTER CONNECTION CONDITION AND SPECIFICATION

        Tester connection Condition Specification
        1 - 2 Always 4 Ω

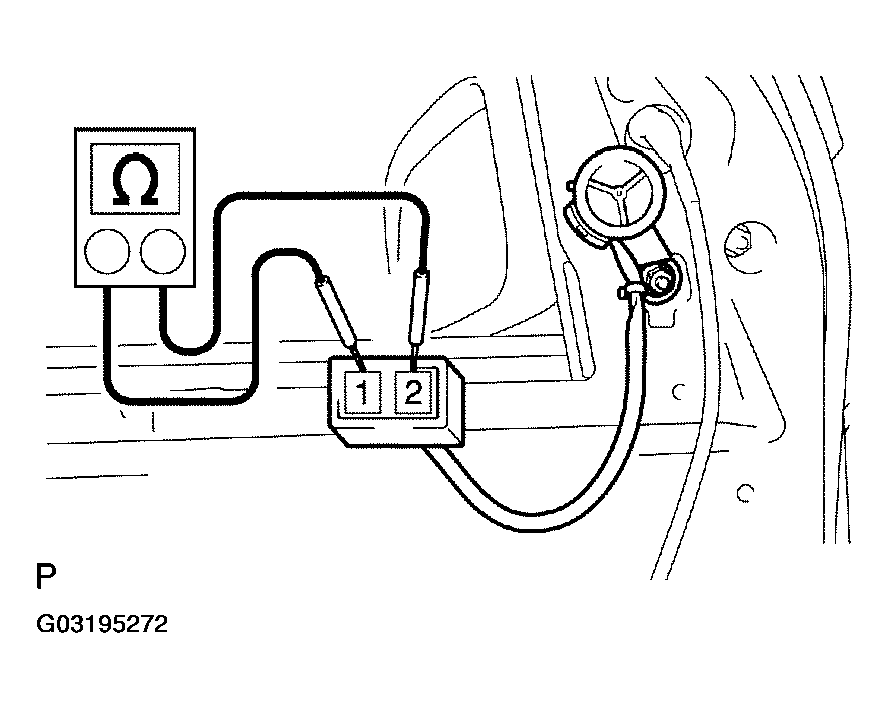

        Fig 2: Measuring Front No.2 Speaker Assy Continuity
        G03195272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REAR SPEAKER ASSY
    1. Inspect rear speaker assy continuity.
      1. Measure the resistance according to the value(s) in the table below.

        Standard:

        TESTER CONNECTION CONDITION AND SPECIFICATION

        Tester connection Condition Specification
        1 - 2 Always 4 Ω

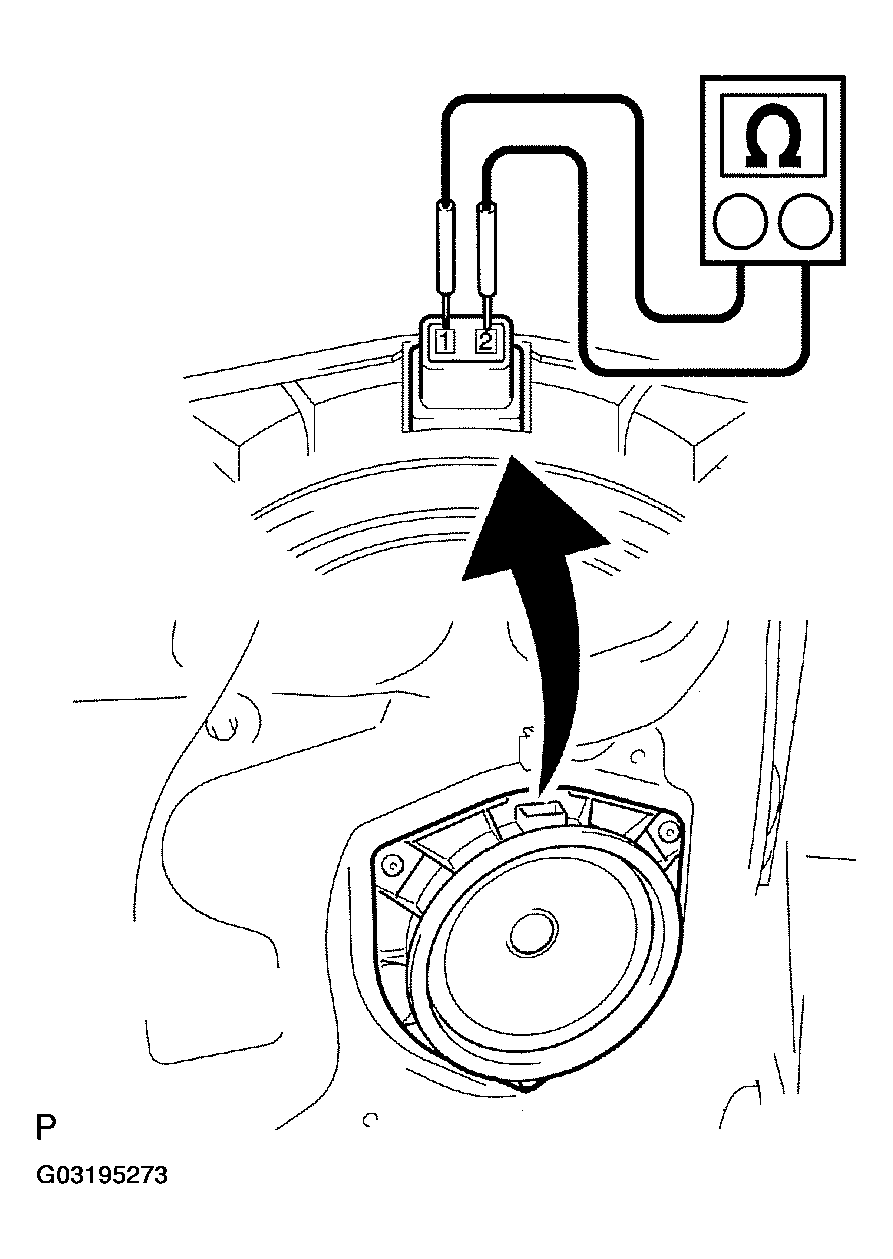

        Fig 3: Measuring Rear Speaker Assy Continuity
        G03195273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
