Fuel Pump Control Circuit: Wiring Diagram

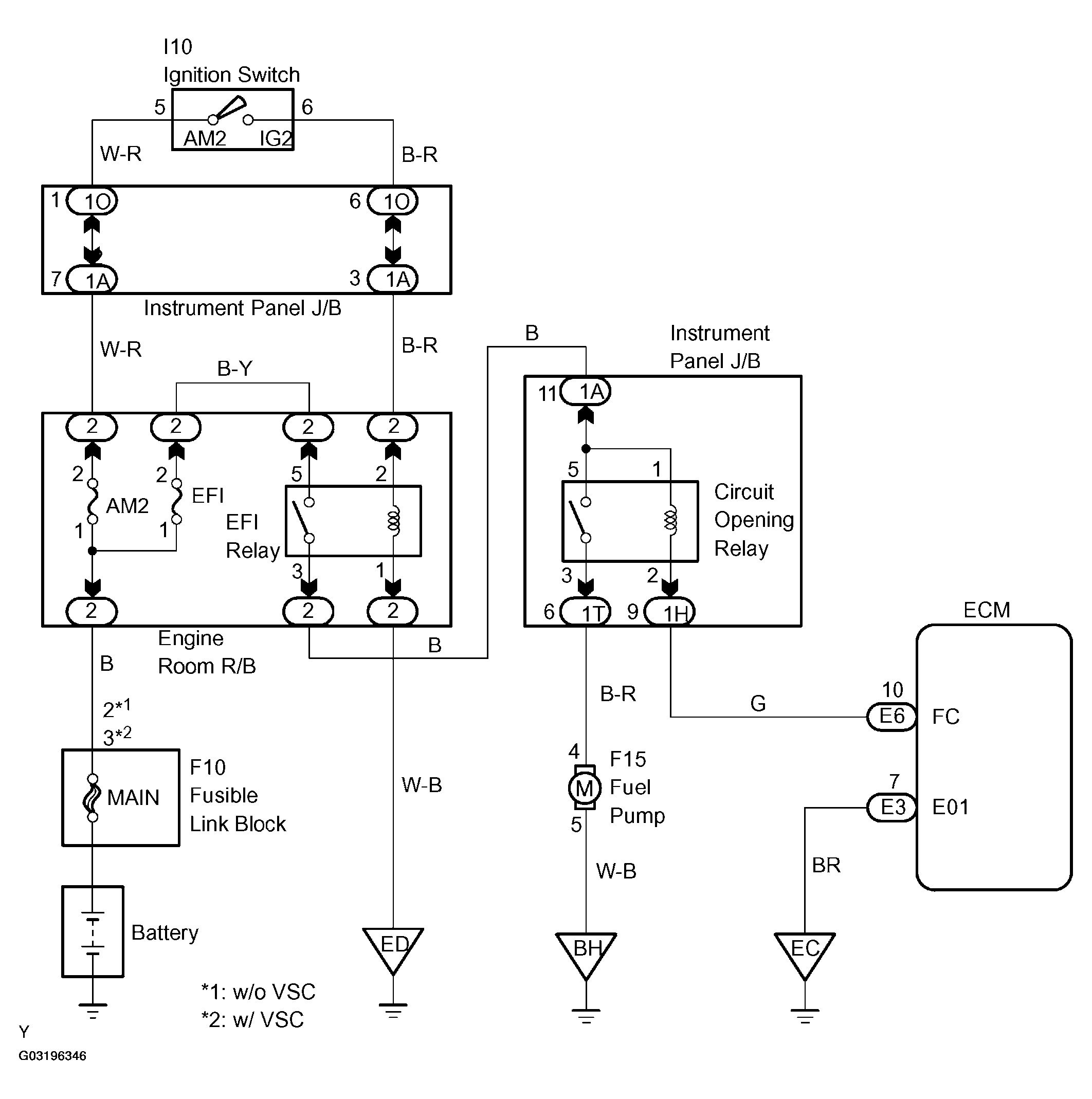

Fig 1: Fuel Pump Control Wiring Diagram
G03196346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
