Power Door Lock Control System
›
Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Key-Linked Lock Are Available)
›
Wiring Diagram
Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Key-Linked Lock Are Available): Wiring Diagram

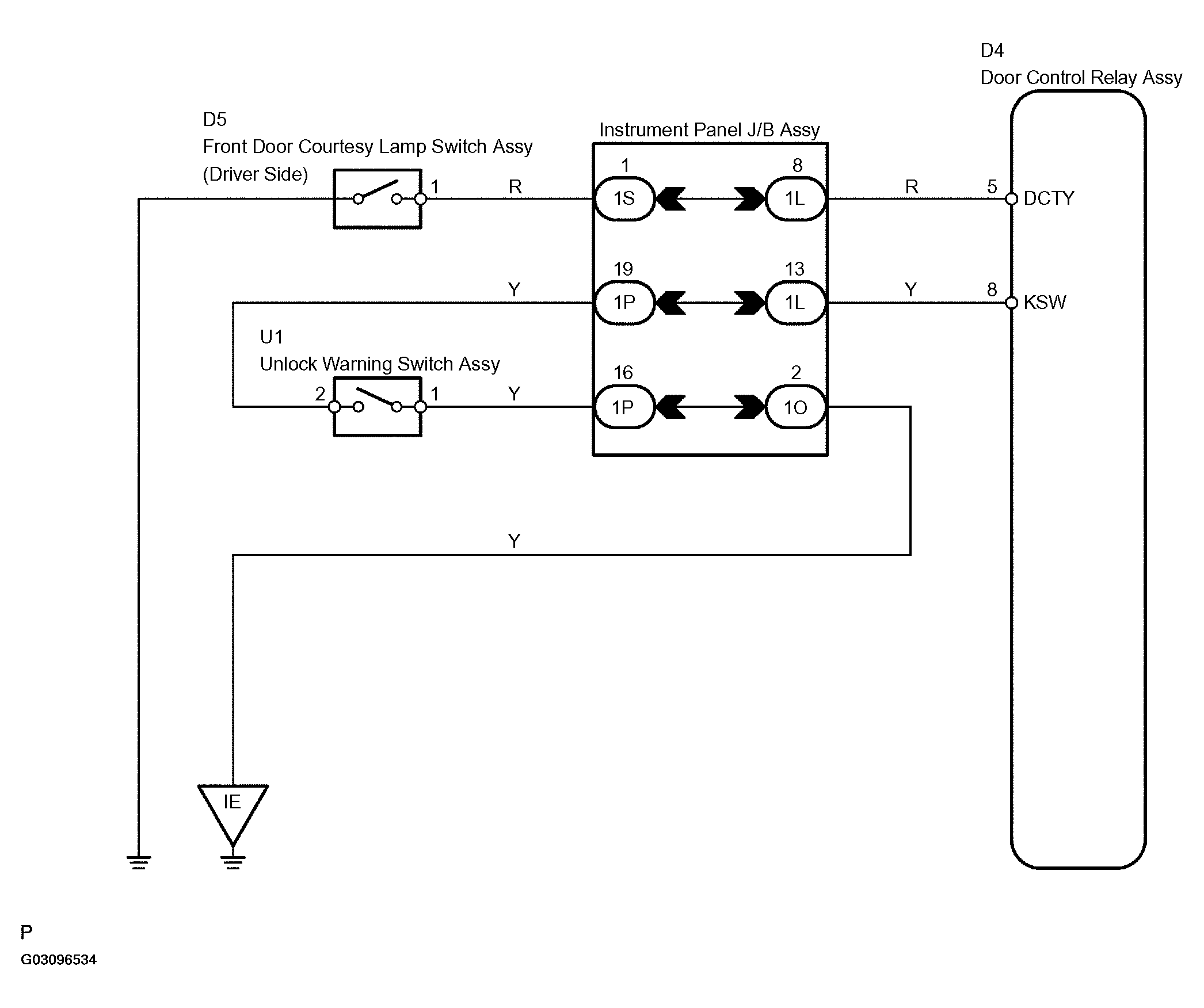

Fig 1: Key Lock-In Prevention System Wiring Diagram
