Terminals Of Ecu

  1. CHECK DOOR CONTROL RELAY ASSY

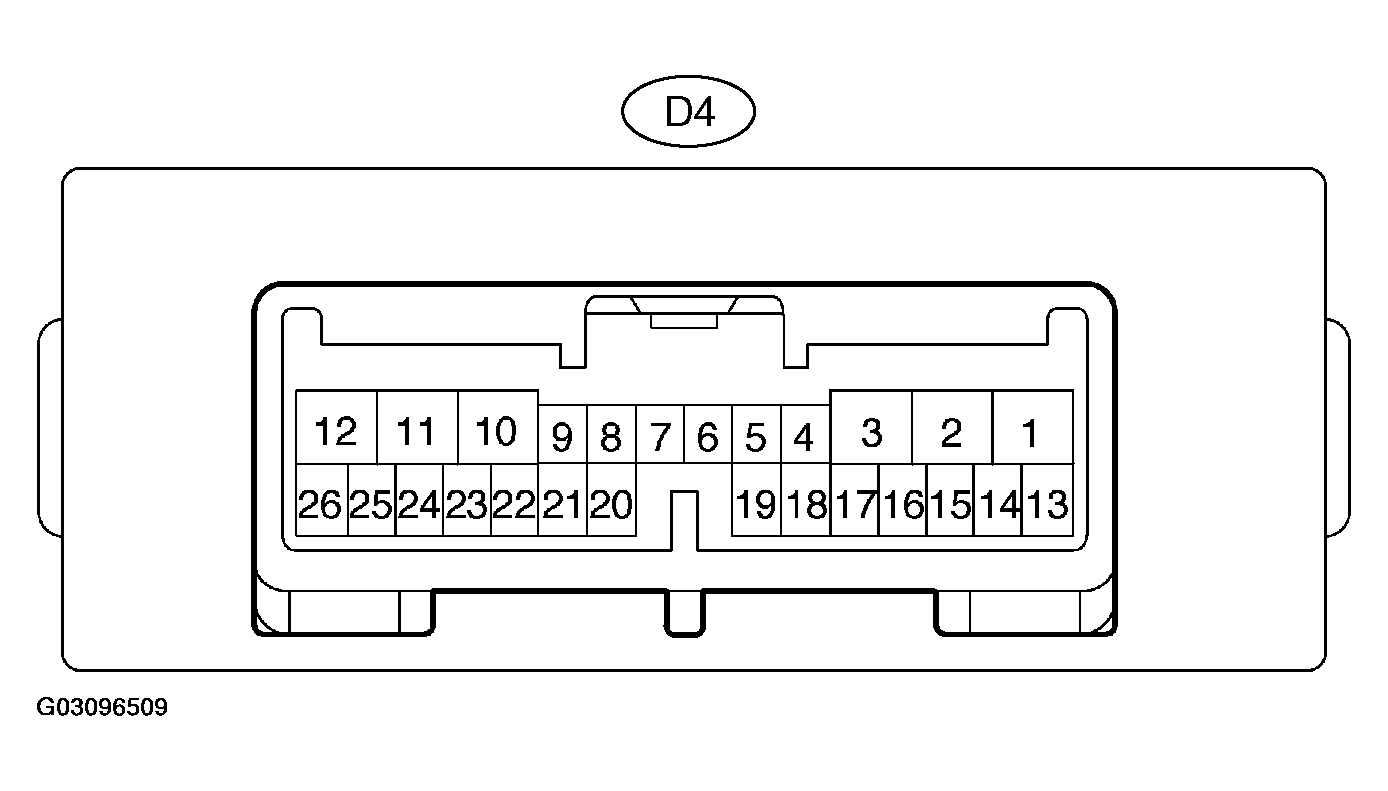

    Fig 1: Identifying D4 Relay Connector Terminals
    G03096509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the D4 relay connector.
    2. Measure the voltage and resistance of each terminal of the wire harness side connector.

      Standard:

      D4 RELAY CONNECTOR (DISCONNECTED) SPECIFICATIONS

      Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
      B (D4-1) - Body ground L-W - Body ground +B (B) power supply Always 10 to 14 V
      E (D4-12) - Body ground W-B - Body ground Ground Always Below 1 Ω
      IG (D4-26) - Body ground R-B - Body ground Ignition power supply Ignition switch ON 10 to 14 V
      KSW (D4-8) - Body ground Y - Body ground Key unlock warning switch input No key in ignition key cylinder --> Key inserted 10 kΩ or higher --> Below 1 Ω
      DCTY (D4-5) - Body ground R - Body ground Driver side courtesy switch input Driver side door Closed --> Open 10 kΩ or higher --> Below 1 Ω
      PCTY (D4-7) - Body ground R-W - Body ground Courtesy switch input other than driver side door Passenger side door, rear door (LH, RH) or back door Closed --> Open 10 kΩ or higher --> Below 1 Ω
      L1 (D4-18) - Body ground BR-Y - Body ground Door control switch (master switch and passenger side switch) lock input Door control switch (master switch or passenger side switch) OFF --> LOCK 10 kΩ or higher --> Below 1 Ω
      UL1 (D4-19) - Body ground G-B - Body ground Door control switch (master switch and passenger side switch) unlock input Door control switch (master switch or passenger side switch) OFF --> UNLOCK 10 kΩ or higher --> Below 1 Ω
      LSWD (D4-6) - Body ground L-R - Body ground Driver side door lock position switch input Driver side door UNLOCK --> LOCK 10 kΩ or higher --> Below 1 Ω
      L2 (D4-20) - Body ground L-W - Body ground Driver and passenger side door key-linked door lock input Driver side or passenger side door key cylinder OFF --> LOCK 10 kΩ or higher --> Below 1 Ω
      UL3 (D4-21) - Body ground Y-B - Body ground Driver side door key-linked door unlock input Driver side door key cylinder OFF --> UNLOCK 10 kΩ or higher --> Below 1 Ω
      UL2 (D4-22) - Body ground L-R - Body ground Passenger side door key-linked door unlock input Passenger side door key cylinder OFF --> UNLOCK 10 kΩ or higher --> Below 1 Ω
      BDSU (D4-17) - Body ground BR-Y - Body ground Back door opener switch input Back door opener switch (outside handle switch) OFF --> ON 10 kΩ or higher --> Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the D4 relay connector.
    4. Measure the voltage of each terminal of the connector.

    Standard:

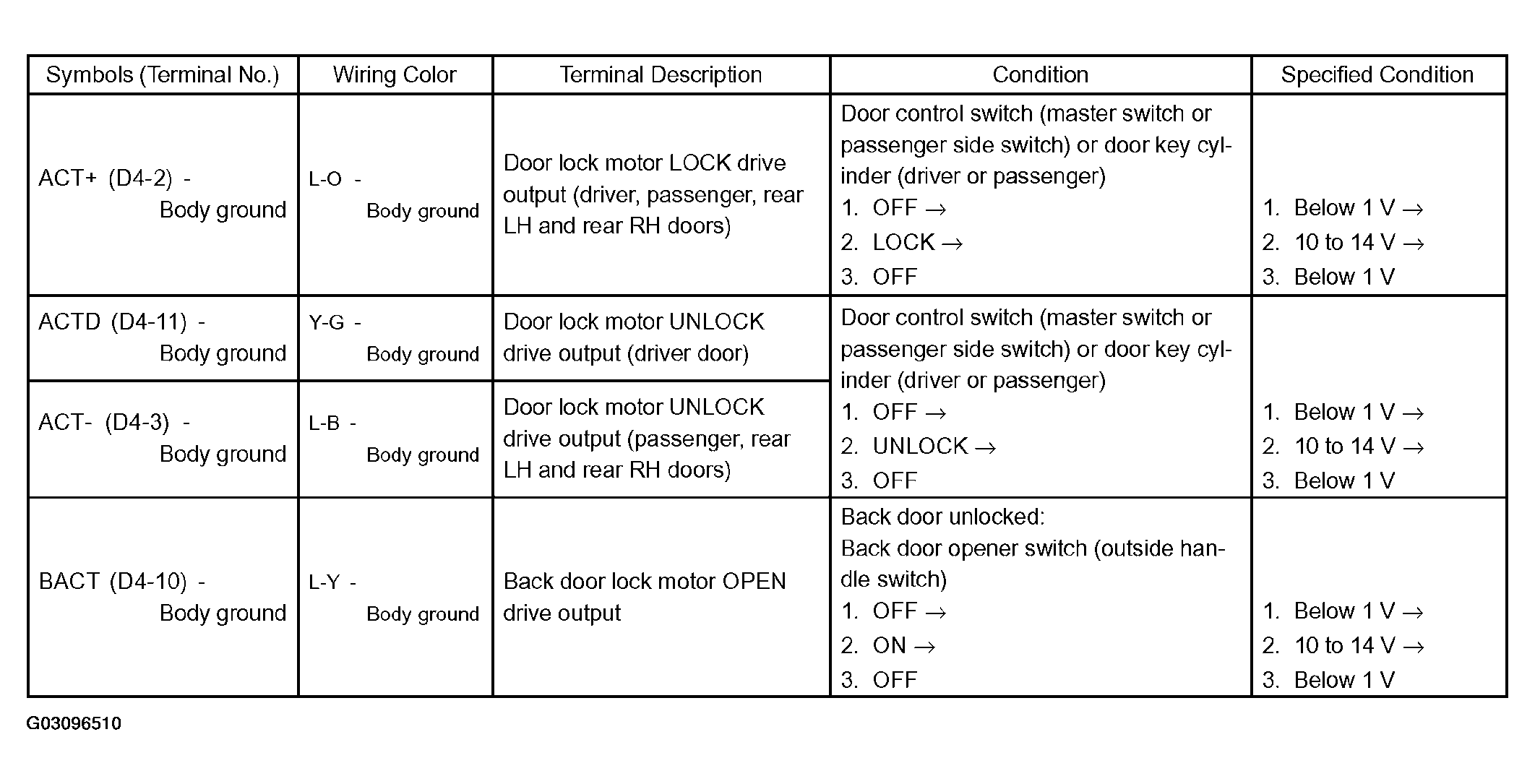

    Fig 2: D4 Relay Connector (Connected) Specifications
    G03096510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, the relay may have a malfunction.
