Quarter Window ASSY RH: Components

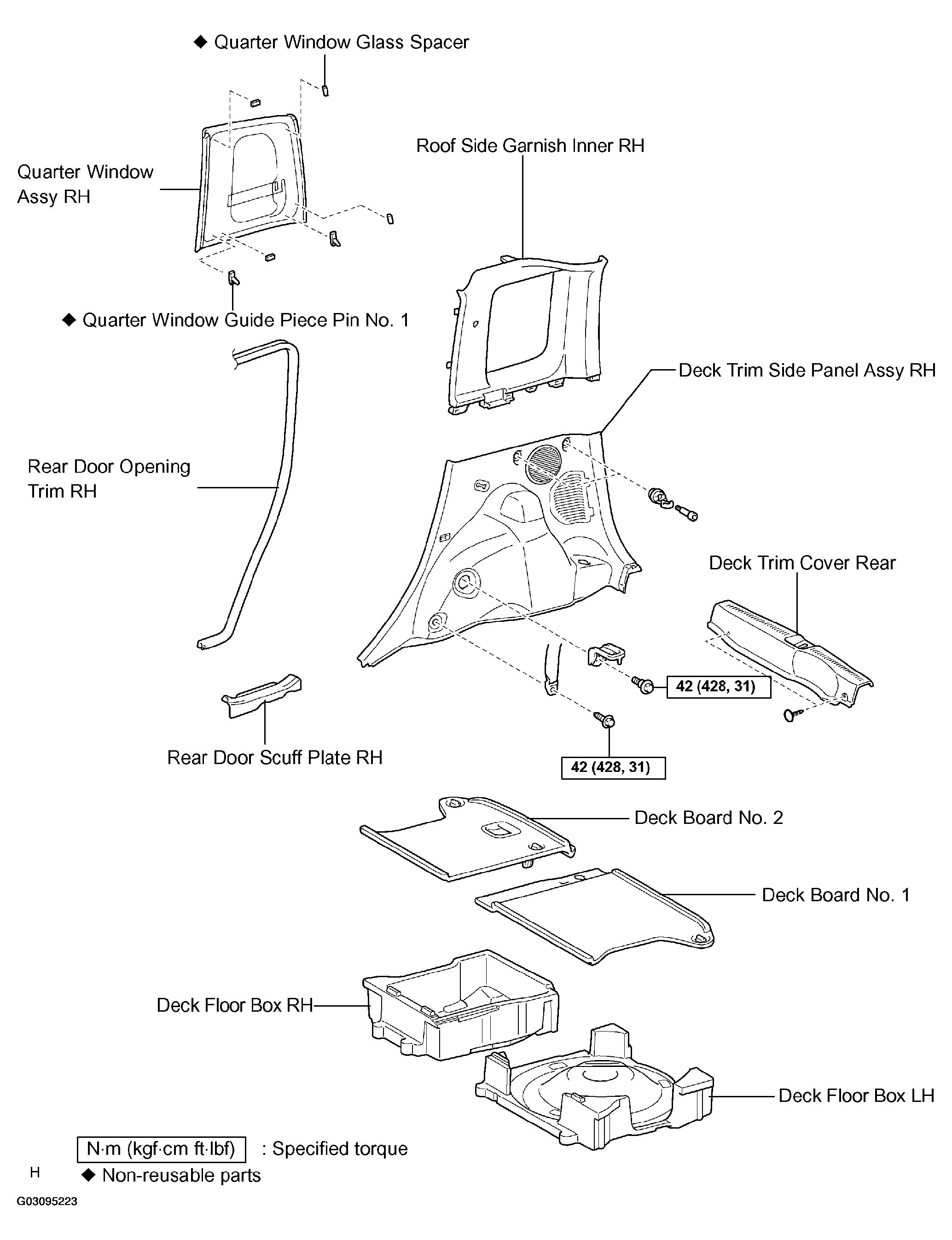

Fig 1: Identifying Quarter Window Assembly (RH) Components
G03095223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
