Mil Circuit: Wiring Diagram

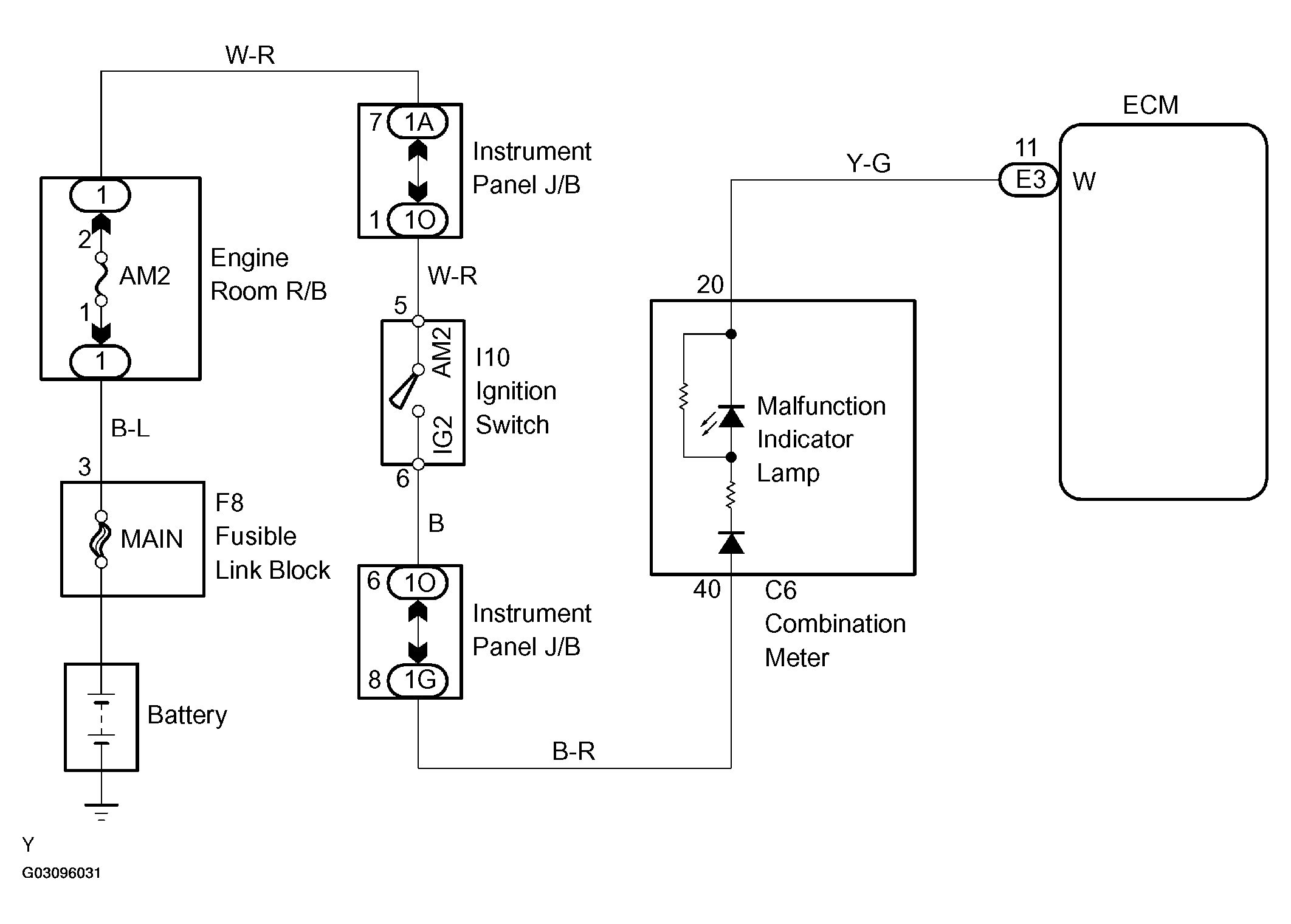

Fig 1: MIL Wiring Diagram
G03096031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
