Engine Mechanical
›
Torque Specifications
Torque Specifications

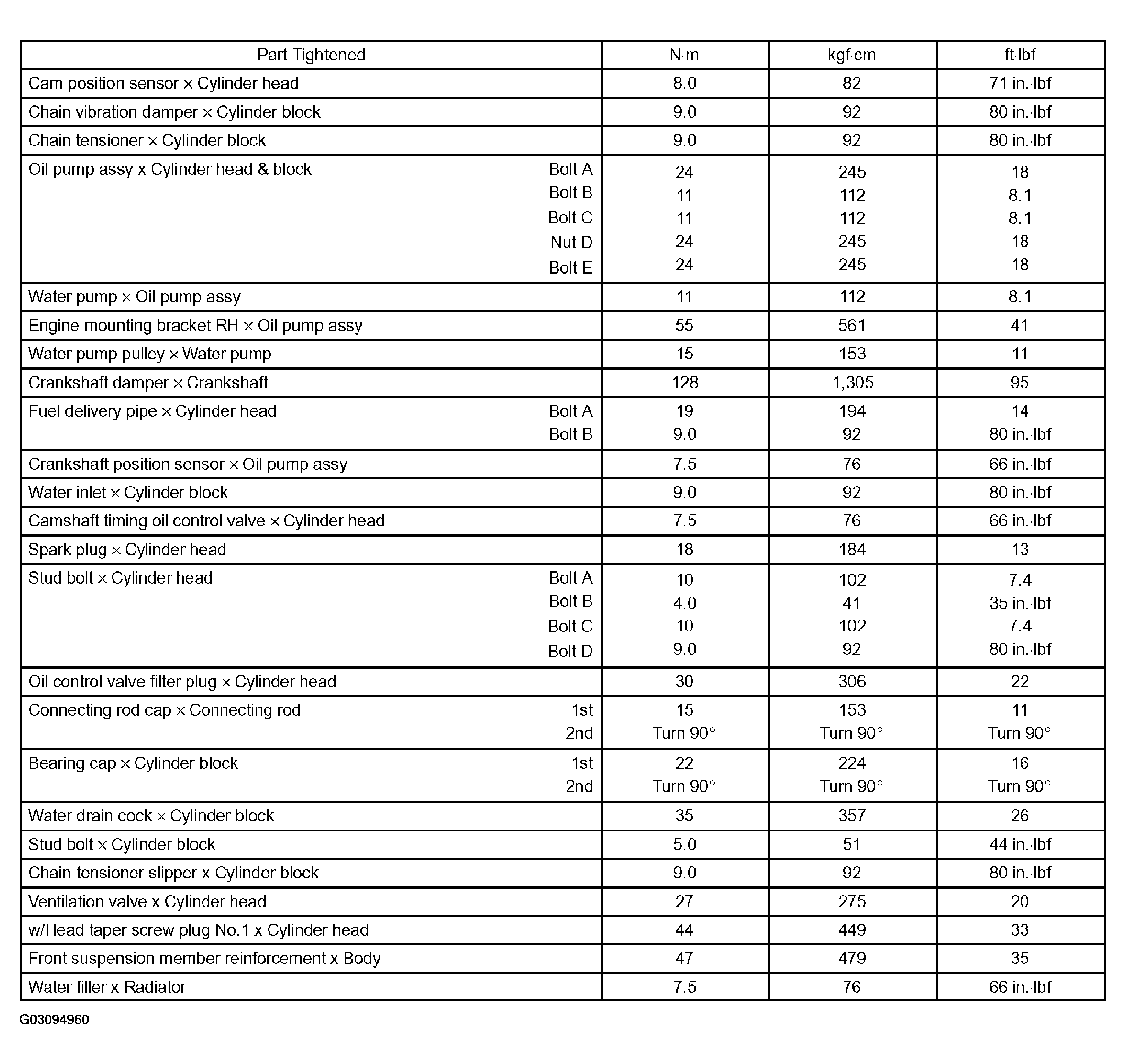

Fig 1: Engine Mechanical Torque Specifications (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

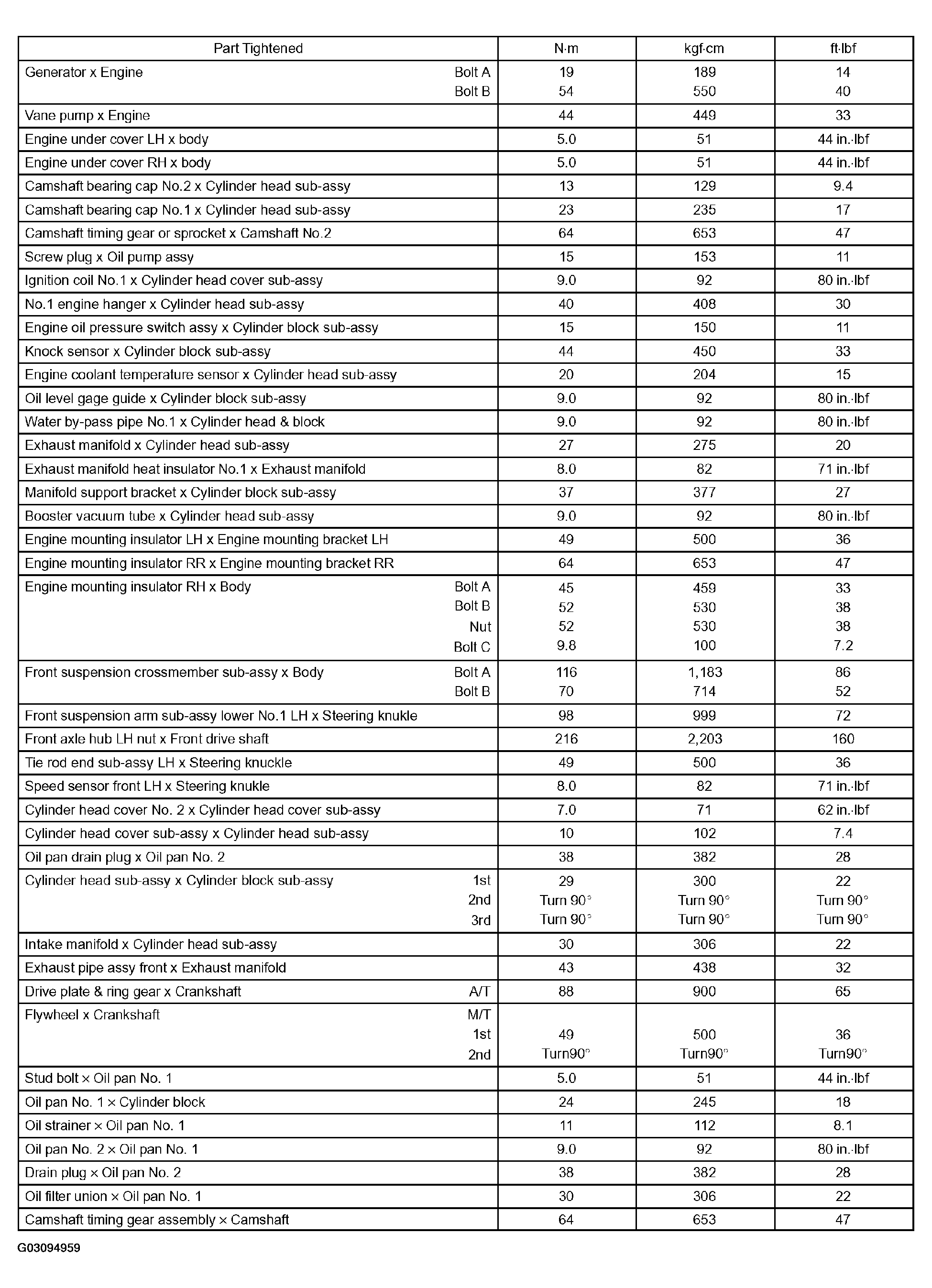

Fig 2: Engine Mechanical Torque Specifications (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
