Transmission Wire (ATM): Replacement

REMOVE TRANSMISSION VALVE BODY ASSY (SEE REPLACEMENT )
REMOVE TRANSMISSION WIRE
1. Remove the bolt and transmission wire.
Fig 1: Removing Transmission Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION WIRE
1. Coat an O-ring with ATF.
2. Install the transmission wire.

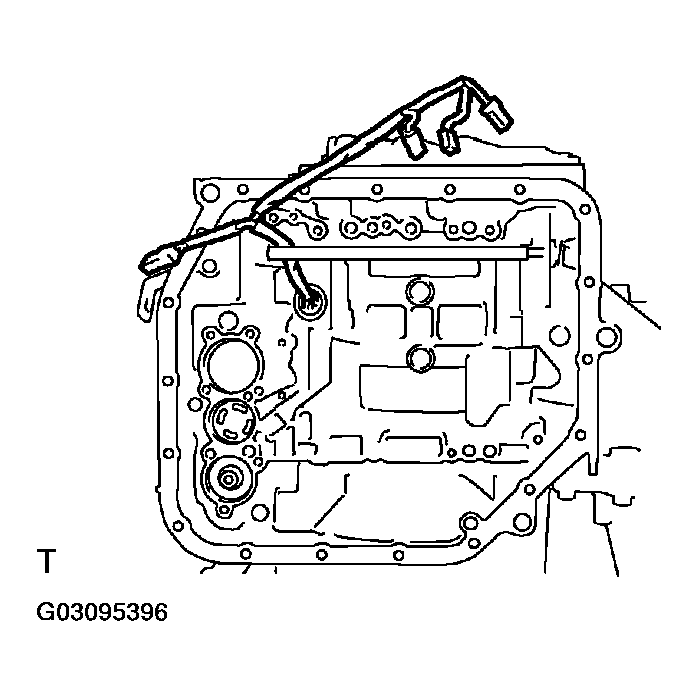

  Fig 2: Installing Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
Fig 3: Installing Transmission Wire Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSY (SEE REPLACEMENT )
RESET MEMORY (SEE INITIALIZATION )
